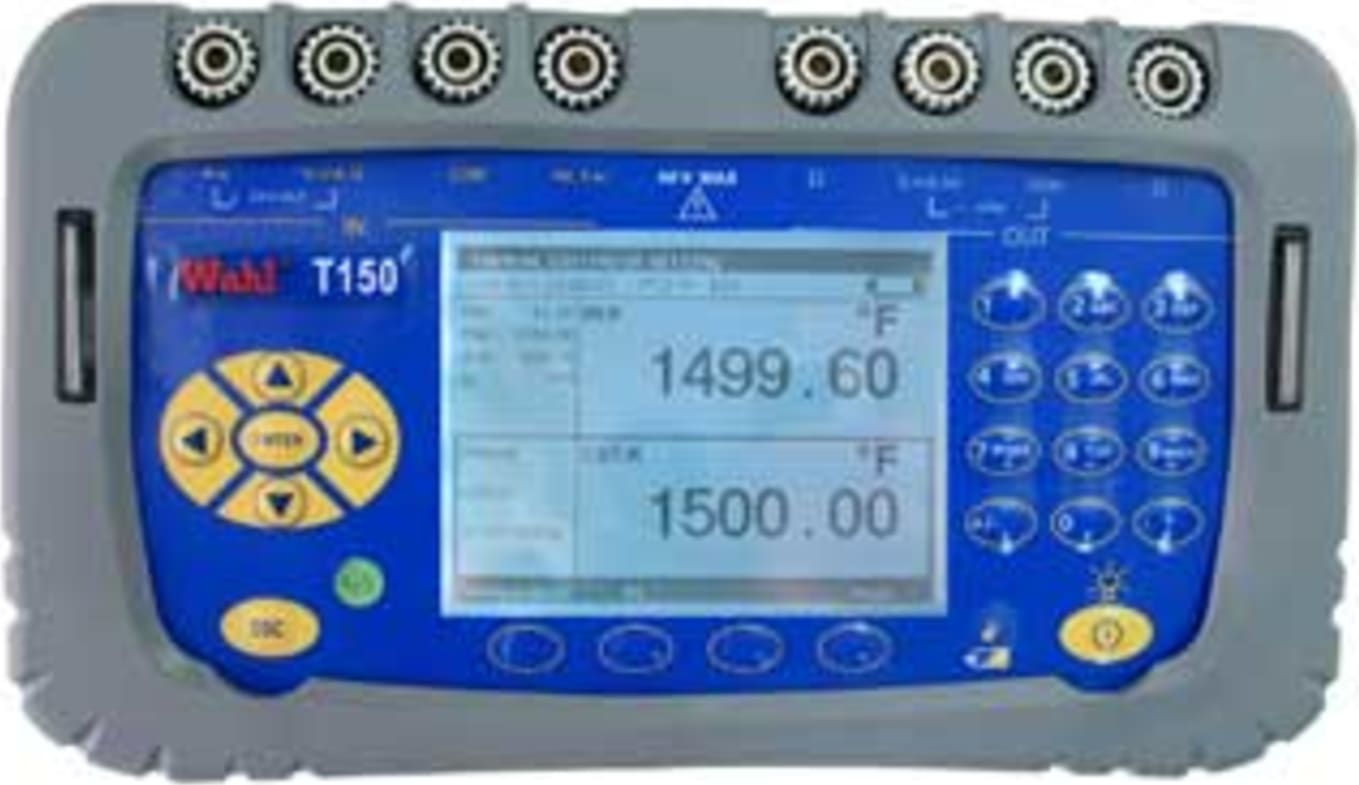

Wahl T150 - Advanced field reference thermometer / temperature calibrator
The Wahl T150 is a highly accurate temperature solution for thermocouples, RTDs, and thermistor thermometers. The T150 has two channels, configurable for IN / IN or IN / OUT arrangements to allow for comparison of calibrations and differential temperature measurement. Use the OUT channel to simulate temperature or control temperature recorders, indicators, hand held thermometers and more. Integrated process functions make it the perfect device for maintenance, quality control, and temperature sensor calibration.
- Thermocouple accuracy: Up to 0.005% of reading
- RTDs: Up to 0.006% of reading
- Thermistors: Up to 0.006% of reading
The T150 features a wide, high contrast backlit display for use in low ambient light conditions. Connect with Bluetooth enabled sensors using onboard functionality. Bluetooth is compatible with 50K Ohm range, Steinhart-HART equation and can drive dry blocks, furnaces, and calibration baths with 4-20 mA signal. The unit stores up to 10,000 values.
Advanced data manipulation includes scaling, relative measurements, simulation of ramps and steps, synthesizer, square root, and statistical functions.
The unit is rated IP54 and protected by an anti-shock boot. A polycarbonate keypad protects the unit from dirt and grease, and the raised keys allow the T150 to be easily used while wearing gloves. Ten user programmable configurations are available for use with repetitive jobs.
The unique quick connect system makes the T150 easy to use; simply press down on the top of the terminal and insert bare wires (up to 3 millimeters or 10 AWG) or compensated thermocouple connectors. When releasing the terminal, wires are held tightly between two brass plates for thermal stability, creating excellent cold junction compensation for thermocouples. This systems also allows for the use of 4 millimeter banana plugs or safety plugs to be connected to the front panel.
