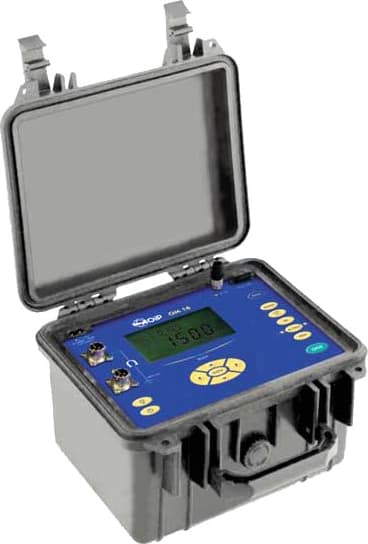

Wahl OM-16 Portable Micro-Ohmmeter

Name: Wahl OM-16 Portable Micro-Ohmmeter
Brand: Wahl
SKU: WahlOM-16
Price: 4985.00 USD
Availability: InStock

0 reviews | Model: Wahl OM-16

Compare

On-site Micro-ohmmeter

Low resistance value measurement in 4-wire configuration (0.1µΩ to 2500Ω)
Measuring current adaptable to the measuring range from 10A to 100mA
Inductive resistance measurement (coils, motors and transformers)
Non-inductive resistance measurement of earth bonding, coating, contact resistances
Automatic compensation of stray EMF.
Ambient temperature measurement with external sensor
Temperature compensation: display of the resistance value calculated at a reference temperature (user selected)
Four-wire resistance measurement of very low values for highest accuracy
Automatic measurement in non-inductive resistance mode
Automatic triggering when continuity is established between the two points
Measurements can be performed by a single operator
EMF parasites are measured before each measurement
Permanent measurement current for inductive loads (coils, transformers, motor windings)
DC measurement current for non-inductive resistances (earth bonding, coating, contact resistances) with auto power off of the current
Display of temperature compensated resistance value: Resistance is automatically calculated by the instrument taking into account: measurement value, ambient temperature, metal temperature coefficient, reference temperature
All parameters are programmable. (Ambient temperature can be programmed or measured with the temperature sensor)
2 programmable thresholds with LED indication and display on the screen, light or loud beeper.
Memory: 1,000 measurements identified by numbers.
Memory reading on the display, or via software or printer.
Powered by Quick Charge NiMh batteries

View Product Details

List Price: $4,985.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Wahl OM-16

Wahl AMT008 Extension Cable for Wahl OM16 and OM17

Catalog: WAHLAMT008

(0)

In Stock!

Add to Cart

Wahl AMT006 Kelvin Clip for Wahl OM16 and OM17

Catalog: WAHLAMT006

(0)

In Stock!

Add to Cart

Wahl AMT012 Small Kelvin Clip for Wahl OM16 and OM17

Catalog: WAHLAMT012

(0)

In Stock!

Add to Cart

Wahl AMT005 Kelvin Test Probe for Wahl OM16 and OM17

Catalog: WAHLAMT005

(0)

In Stock!

Add to Cart

Wahl AMT011 Kelvin Test Probe for Wahl OM16 and OM17

Catalog: WAHLAMT011

(0)

In Stock!

Add to Cart

Wahl AMT013 Kelvin Test Probe for Wahl OM16 and OM17

Catalog: WAHLAMT013

(0)

In Stock!

Add to Cart

Wahl LOG OM PC Software for OM16/21/22

Catalog: WAHLLOG OM

(0)

In Stock!

Add to Cart

Wahl AMT014 External Temperature Sensor for Wahl OM16 and OM17

Catalog: WAHLAMT014

(0)

In Stock!

Add to Cart

Wahl AMT015 2m Extension for Wahl OM16 and OM17

Catalog: WAHLAMT015

(0)

In Stock!

Add to Cart

Portable Micro-Ohmmeter
Low Resistance Tester for Real-time Temperature Readings and Calculations

OM16 micro-ohmmeter is designed for applications such as bond tester, ground bond tester and insulation tester. Easy to use, it performs measurements on inductive and non-inductive resistances with a DC current. Its large interactive display informs the operator in real time about the type of measurement, range, calculation conditions (resistance calculated according to a reference temperature), thresholds status and values.

The NEW! Wahl Portable Micro-Ohmmeter is designed for maintenance departments, workshops, and field use. Easy to use, the OM16 performs measurements on inductive and non-inductive resistances with a DC current. Its large interactive display informs the operator in real time about the type of measurement, range, calculation conditions (resistance calculated according to a reference temperature), thresholds status and values. Designed for harsh environments, the OM16 is encased in a Pelicase® type carrying case and features a washable plastic keyboard and key-locked measurement plugs. Measurement probe provides 4-wire measurement for the highest accuracy.

Applications

Metallic Coating
Ground Continuity
Cable Resistance
Inductive Resistance
Contact Resistance

Specifications
	RESOLUTION AND ACCURACY
	Range	Resolution	Accuracy (1 year) 23°C ± 5°C	Measuring Current	Voltage Drop
Temperature Compensation		0.1°C	± 0.5°C
Resistance Specifications	5 mΩ	0.1 µΩ	0.05% + 0.5 µΩ	10 A	50 mV
	25 mΩ	1 µΩ	0.05 % + 3 µΩ	10 A	250 mV
	250 mΩ	10 µΩ	0.05 % + 30 µΩ	10 A	2.5 V
	2500 mΩ	0.1 mΩ	0.05% + 0.3 mΩ	1A	2.5 V
	25Ω	1 mΩ	0.05 % + 3 mΩ	100 mA	2.5 V
	250 Ω	10 mΩ	0.05% + 30 mΩ	10 mA	2.5 V
	2500 Ω	100 mΩ	0.05% + 300 mΩ	1 mA	2.5 V

OTHER SPECIFICATIONS
Temperature Compensation	Manually keyed or measured by Pt100 Sensor connected on the keyboard or through a cable
Temperature Coefficient 0° to 18°C and 28° to 50°C	<10% of accuracy/ °C
Recommended Operating Environment	0°C to 50°C (RH 20 to 75% w/o condensation)
Maximum Operating Environment	-10°C to 55°C (RH 10 to 80% w/o condensation)
Storage Temperature Limits	-40°C to +60°C
Safety	EN61010-1, Category II, Pollution 2 (60V)
Measurement Plugs	2 Circular Locking Connectors Protection up to 250V Fuse Protection
Interface	RS232 for printer, computer, trigger
Battery	NI/MH 8.5 AH 5 Hours Charging Time
Battery Life	approx. 5000 measurements at 10A
AC Input for Battery Charging	92 to 256V AC (45 to 400 hz)
Dimensions	10.62 x 9.84 x 7.08 inches (270 mm x 250 mm x 180 mm)
Weight	8.81 lbs (4kg)
Shock and Vibration	EN61010-1
Rating	IP53 according to EN60529
Included Accessories	Pelicase® Carrying Case, AC Power Cord
