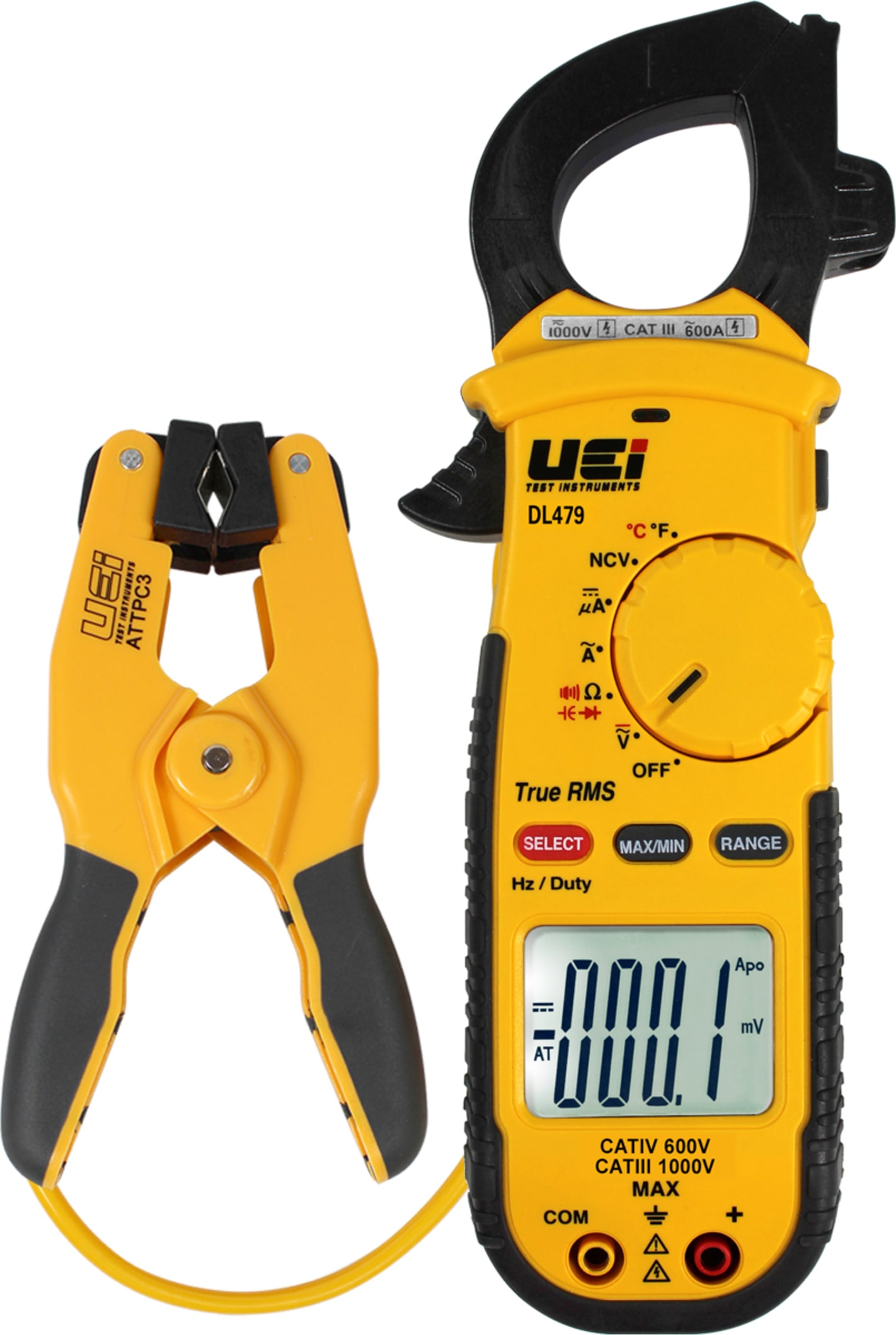

UEi DL479COMBO True RMS Clamp Meter w/ Pipe Clamp Probe

5 (2 Reviews) | UPC: 053533507560 | Model: Uei DL479COMBO

Compare

TRMS DL479 CLAMP METER W/ ATTPC3 PIPE CLAMP PROBE

Data hold
Min/Max (25 ms fast capture)
Manual ranging option
Backlight
Worklight
Fits 1/4" to 1 1/2" pipes
Audible voltage indicator
Low battery indicator
Auto power off
Test lead storage
Over molded grip
Auto calibration
Magnetic mount
Improved strain relief

View Product Details

List Price: $188.95

Your Price: $160.61

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Uei DL479COMBO TRMS DL479 CLAMP METER W/ ATTPC3 PIPE CLAMP PROBE	Uei DL389BCOMBO TRUE RMS DUAL DISPLAY HVAC/R CLAMP METER W/ ATTPC3	Uei DL489COMBO True RMS Clamp Meter w/ Pipe Clamap Adapter
Price
In Stock
True RMS	Yes	Yes	Yes
Maximum Current AC	600 A	400 A	600 A
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Uei DL479COMBO Accessories

Choose a Category

for the Uei DL479COMBO

Uei ATL2 Test Lead Tips - Alligator Clips (ATLTX Required)

Catalog: ATL2

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Uei ATL1 TEST LEAD TIPS - STANDARD (ATLTX REQUIRED)

Catalog: ATL1

(0)

In Stock!

Add to Cart

Uei ATL3 TEST LEAD TIPS - GRABBER (ATLTX REQUIRED)

Catalog: ATL3

(0)

In Stock!

Add to Cart

Uei ATL301KIT ACCESSORY TEST LEAD KIT

Catalog: ATL301KIT

(0)

In Stock!

Add to Cart

Uei ATL5 TEST LEAD TIPS - BACK PROBE (ATLTX REQUIRED)

Catalog: ATL5

(1)

In Stock!

Add to Cart

Uei ATL6 TEST LEAD TIPS - PIERCING (ATLTX REQUIRED)

Catalog: ATL6

(0)

In Stock!

Add to Cart

Uei ATLTX MODULAR TEST LEAD EXTENSION WIRE

Catalog: ATLTX

(0)

In Stock!

Add to Cart

Uei ATT100 Temperature probe, K-Type Liquid 6 Inch

Catalog: ATT100

(0)

In Stock!

Add to Cart

Uei ATT29A TEMPERATURE PROBE, K-TYPE FLUOROPLASTIC COATED

Catalog: ATT29A

(0)

In Stock!

Add to Cart

Uei ATT36 K-Type 8 Inch Surface Probe With Handle

Catalog: ATT36

(0)

In Stock!

Add to Cart

UEi DL479COMBO True RMS Clamp Meter w/ Pipe Clamp Probe

Motor or line current
Control voltage or system board voltage checks
Circuit continuity or specified resistance
Diode malfunctions/unbroken paths

The UEi DL479COMBO is a true RMS clamp meter with 600A AC, and HVAC/R functions including temperature, capacitance, and frequency. Designed to 3rd edition safety standards and ETL listed for US and Canada, the DL479 is rated for CATIV 600V. With a smart and rugged design, these meters are equipped with the essential functionality for professionals and backed by a two-year warranty.

There are several clamps meters in this family. The chart below provides an overview of each.

Part #	DL429	DL389	DL479	DL469	DL419
True RMS	●	●	●	●	●
AC Volts	600mV to 750V	400mV to 750V	600mV to 750V	400mV to 750V	400mV to 1000V
DC Volts	600mV to 1000V	400mV to 1000V	600mV to 600V	400mV to 600V	400mV to 1000V
AC Current (Amps)	60A to 600A	40A to 400A	60A to 600A	40A to 400A	40A to 1000A
DC Low Amps	600µA to 2000µA	400µA to 2000µA	600µA to 2000µA	400µA to 2000µA
Resistance (Ohms)	600Ω to 60MΩ	400Ω to 40MΩ	600Ω to 60MΩ	400Ω to 40MΩ	400Ω to 40MΩ
Continuity	●	●	●	●	●
Diode	●	●	●	●	●
NCV (LED & Audible)	●	●	●	●	●
Min	●	●	●	●	●
Max	●	●	●	●	●
Hold	●	●	●	●	●
Ranging	Auto/Man	Auto/Man	Auto/Man	Auto/Man	Auto/Man
Display Count	6,000	4,000	6,000	4,000	4,000
Clamp Work Light	●	●	●	●
Low Battery Indicator	●	●	●	●	●
Battery Type	2 (AAA)	2 (AAA)	2 (AAA)	2 (AAA)	2 (AAA)
Auto Power Off	●	●	●	●	●
Duty Cycle	●	●	●		●
Capacitance (Farads)	60nF to 2000µF	40nF to 4000µF	60nF to 2000µF		40nF to 2000µF
Frequency (Hertz)	99.99Hz to 99.99kHz	9.999Hz to 199.99kHz	99.99Hz to 9.999kHz
Temperature	-22˚ to 752˚F (-30˚ to 400˚C)	-22˚ to 752˚F (-30˚ to 400˚C)	14˚ to 752˚F (-10˚ to 400˚C)
Backlight	●	●	●		●
Magnetic Mount	●	●	●		●
Dual Display	●	●
Detachable Clamp Head	●	●
Temperature Differential	●
LRA Inrush	●				●
Wireless to App	●
iOS® and Android ™ Compatible App	●
DC Current (Amps)					40A to 1000A
Rel/DC Zero					●
Bar graph					●
Safety - CAT IV	CATIII 600V	CATIII 600V/ CATII 1000V	CATIV 600V/ CATIII 1000V	CATIII 1000V	CATIV 600V/ CATIII 1000V
Warranty	2-Year limited	3-Year limited	2-Year limited	2-Year limited	2-Year limited

General Specifications
Operating Temperature	32° to 104°F (0° to 40°C)
Storage Temperature	14° to 122°F (-10° to 50°C)
Operating Humidity	<75%
Operating Altitude	6,562 ft. (2000m)
Pollution Degree	2
Display	3 5/6" Digits 6,000 Count
Backlight	Yes
Refresh Rate	3/sec
Over-range	"OL" is displayed
Dimensions	8.75" X 3.5" X 1.75"
Item Weight	0.65 lb
Calibration	Recommended Annually
CAT Rating	CAT IV 600V / CAT III 1000V
Certifications	cETLus 3rd Edition, CATIII 1000V, IEC 61010-1, 61010-2-032, 61010-2-033, CSA C22.2, NO. 61010-1, 61010-2-032, 61010-2-033, 6’ Drop Protection, RoHS Compliant, CE Conformity
Battery Type	(AAA) X 2
Test Leads	Test lead w/ Alligator Clips
Accuracy	± (% of reading + # of least significant digits)

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Current DC	2000 A
Maximum Voltage AC	750 V
Maximum Voltage DC	600 V
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Manual
In-Rush Current	Yes
