UEi DL429 - True RMS Wireless HVAC Clamp with ∆T

0 reviews | UPC: 053533507164 | Model: UEi DL429

Compare

G3 PHOENIX CLAMP METER

Wireless to App
Direct function button access
Dual display
Differential temperature
Min/Max/Hold
Backlit display
Worklight
Magnetic mount
RF or Bluetoot Wireless
iOS and Android compatible
Input jack lockout
Low battery lockout
Visible high-voltage alert
2-Year limited warranty

View Product Details

List Price: $249.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the UEi DL429

UEi AAC Alligator Clips, Slip-On

Catalog: AAC

(0)

In Stock!

Add to Cart

UEi AAC3 Alligator Clips, Screw-On

Catalog: AAC3

(0)

In Stock!

Add to Cart

UEi ATL2 Test Lead Tips - Alligator Clips (ATLTX Required)

Catalog: ATL2

(0)

In Stock!

Add to Cart

UEi ATL55 CATIII TEST LEADS (STANDARD)

Catalog: ATL55

(4)

In Stock!

Add to Cart

UEi ATTEXT K-Type Extension Wire, 10 FT

Catalog: ATTEXT

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

UEi ATL1 TEST LEAD TIPS - STANDARD (ATLTX REQUIRED)

Catalog: ATL1

(0)

In Stock!

Add to Cart

UEi ATL3 TEST LEAD TIPS - GRABBER (ATLTX REQUIRED)

Catalog: ATL3

(0)

In Stock!

Add to Cart

UEi ATL301KIT ACCESSORY TEST LEAD KIT

Catalog: ATL301KIT

(0)

In Stock!

Add to Cart

UEi ATL5 TEST LEAD TIPS - BACK PROBE (ATLTX REQUIRED)

Catalog: ATL5

(1)

In Stock!

Add to Cart

UEi ATL57 CATIV TEST LEADS (SILICONE)

Catalog: ATL57

(0)

In Stock!

Add to Cart

UEi ATL6 TEST LEAD TIPS - PIERCING (ATLTX REQUIRED)

Catalog: ATL6

(0)

In Stock!

Add to Cart

UEi ATLTX MODULAR TEST LEAD EXTENSION WIRE

Catalog: ATLTX

(0)

In Stock!

Add to Cart

UEi ATT100 Temperature probe, K-Type Liquid 6 Inch

Catalog: ATT100

(0)

In Stock!

Add to Cart

UEi ATT29 TEMPERATURE PROBE, K-TYPE FIBERGLASS COATED

Catalog: ATT29

(0)

In Stock!

Add to Cart

UEi ATT29A TEMPERATURE PROBE, K-TYPE FLUOROPLASTIC COATED

Catalog: ATT29A

(0)

In Stock!

Add to Cart

UEi ATT29APACK TEMPERATURE PROBE, K-TYPE (10 PACK)

Catalog: ATT29APACK

(0)

In Stock!

Add to Cart

UEi ATT36 K-Type 8 Inch Surface Probe With Handle

Catalog: ATT36

(0)

In Stock!

Add to Cart

UEi ATT39 K-Type Probe With Wire Wrap Handle

Catalog: ATT39

(0)

In Stock!

Add to Cart

UEi ATTPC3 K-Type Pipe Clamp Probe (Grip Style)

Catalog: ATTPC3

(0)

In Stock!

Add to Cart

UEi ATTPC4 K-TYPE PIPE CLAMP PROBE

Catalog: ATTPC4

(0)

In Stock!

Add to Cart

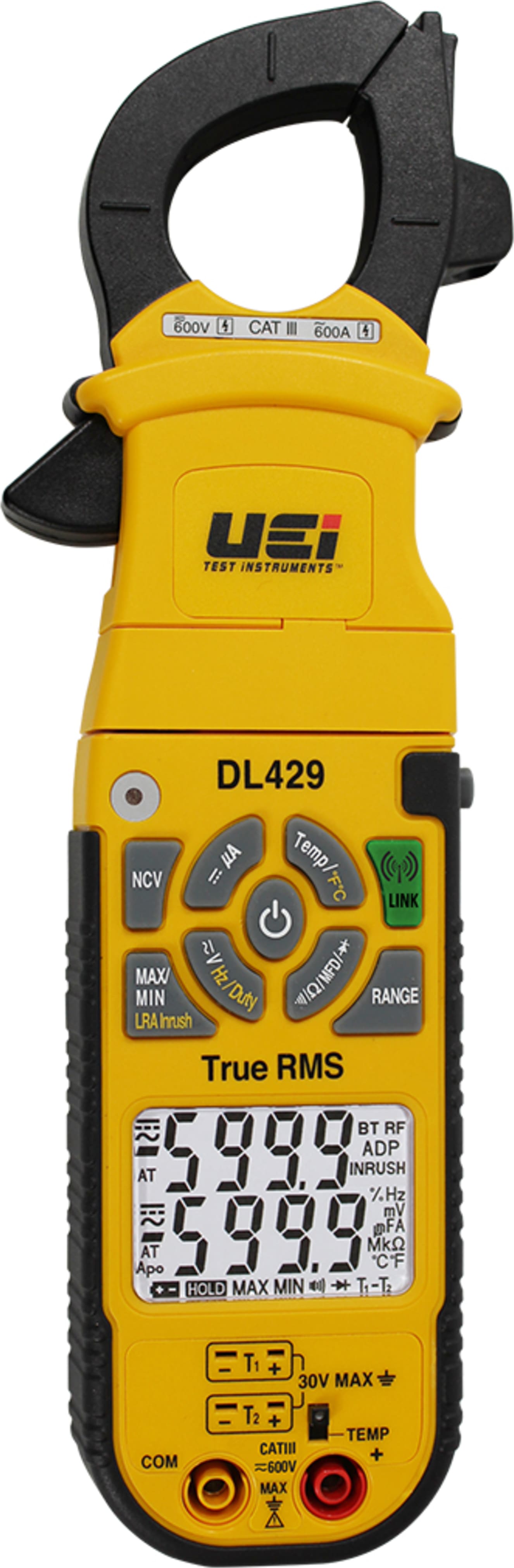

Uei DL429 - True RMS Wireless HVAC Clamp with ∆T

The Uei DL429 is a true RMS HVAC clamp meter with several advanced features. The DL429 has RF and Bluetooth connectivity, and is iOS and Android compatible. Its screen is dual display, and with inputs for two thermocouples, it can measure differential temperature.

Applications include:

Measure linear electrical loads
Control voltage or system board voltage checks
Circuit continuity or specified resistance
Motor run or start faults
Quick check of live wires
Diode test malfunctions/ unbroken paths
Motor inrush

Functions include:

True RMS
600A AC
μA DC 0.1 to 2000
1000V DC
750V AC
Resistance
Capacitance
Differential temperature: -22° to 752°F (-30° to 400°C)
Frequency
Duty cycle
LRA Inrush measurement

There are several clamps meters in this family. The chart below provides an overview of each.

Part #	DL429	DL389	DL479	DL469	DL419
True RMS	●	●	●	●	●
AC Volts	600mV to 750V	400mV to 750V	600mV to 750V	400mV to 750V	400mV to 1000V
DC Volts	600mV to 1000V	400mV to 1000V	600mV to 600V	400mV to 600V	400mV to 1000V
AC Current (Amps)	60A to 600A	40A to 400A	60A to 600A	40A to 400A	40A to 1000A
DC Low Amps	600µA to 2000µA	400µA to 2000µA	600µA to 2000µA	400µA to 2000µA
Resistance (Ohms)	600Ω to 60MΩ	400Ω to 40MΩ	600Ω to 60MΩ	400Ω to 40MΩ	400Ω to 40MΩ
Continuity	●	●	●	●	●
Diode	●	●	●	●	●
NCV (LED & Audible)	●	●	●	●	●
Min	●	●	●	●	●
Max	●	●	●	●	●
Hold	●	●	●	●	●
Ranging	Auto/Man	Auto/Man	Auto/Man	Auto/Man	Auto/Man
Display Count	6,000	4,000	6,000	4,000	4,000
Clamp Work Light	●	●	●	●
Low Battery Indicator	●	●	●	●	●
Battery Type	2 (AAA)	2 (AAA)	2 (AAA)	2 (AAA)	2 (AAA)
Auto Power Off	●	●	●	●	●
Duty Cycle	●	●	●		●
Capacitance (Farads)	60nF to 2000µF	40nF to 4000µF	60nF to 2000µF		40nF to 2000µF
Frequency (Hertz)	99.99Hz to 99.99kHz	9.999Hz to 199.99kHz	99.99Hz to 9.999kHz
Temperature	-22˚ to 752˚F (-30˚ to 400˚C)	-22˚ to 752˚F (-30˚ to 400˚C)	14˚ to 752˚F (-10˚ to 400˚C)
Backlight	●	●	●		●
Magnetic Mount	●	●	●		●
Dual Display	●	●
Detachable Clamp Head	●	●
Temperature Differential	●
LRA Inrush	●				●
Wireless to App	●
iOS® and Android ™ Compatible App	●
DC Current (Amps)					40A to 1000A
Rel/DC Zero					●
Bar graph					●
Safety - CAT IV	CATIII 600V	CATIII 600V/ CATII 1000V	CATIV 600V/ CATIII 1000V	CATIII 1000V	CATIV 600V/ CATIII 1000V
Warranty	2-Year limited	3-Year limited	2-Year limited	2-Year limited	2-Year limited

Specifications
AC Amps Measurement - Jaw input
Range	Resolution	Accuracy	Overload Protection
60A	0.01A	± (2.9% + 15 digits)	600V RMS
600A	0.1A	± (1.9% + 8 digits)	600V RMS
DC Low Amps Measurement -Test lead input
Range	Resolution	Accuracy	Overload Protection
600µA	0.1µA	± (1.2% + 3 digits)	2000µA / 600V RMS
2000µA	1µA	± (1.2% + 3 digits)	2000µA / 600V RMS
DC Voltage Measurement
Range	Resolution	Accuracy	Overload Protection
600mV	0.1mV	± (0.5% + 4 digits)	1000V
6V	1mV
60V	10mV
600V	100mV
1000V	1V	± (0.8% + 10 digits)
AC Voltage Measurement
Range	Resolution	Accuracy	Overload Protection
600mV	0.1mV	± (2.0% + 5 digits)	750V RMS
6V	1mV
60V	10mV
600V	100mV
750V	1V
Frequency Measurement
Range	Resolution	Accuracy	Overload Protection
99.99Hz	0.01Hz	± (1.0% + 4 digits)	600V RMS
999.9Hz	0.1Hz
9.999kHz	1Hz
99.99kHz	10Hz
Duty Cycle Measurement
Range	Test Current		Overload Protection
1.0 ˜ 99.0%	±(0.2% per kHz + 0.1% + 5 digits)		600V RMS
Audible Continuity
Overload Protection		Open Circuit Voltage
600V RMS		< 0.44V
Resistance
Range	Resolution	Accuracy	Overload Protection
600Ω	0.1Ω	± (1.0% + 4 digits)	600V RMS
6kΩ	1Ω
60kΩ	10Ω
600kΩ	100Ω
6MΩ	1kΩ
60MΩ	10kΩ	± (2.0% + 4 digits)
Capacitance
Range	Resolution	Accuracy	Overload Protection
60.00nF	0.01nF	± (3.5% + 6 digits)	600V RMS
600.0nF	0.1nF
6.000μF	0.001μF
60.00μF	0.01μF
600.0μF	0.1μF
2000μF	1μF
Diode Test
Range	Open Circuit Voltage	Test Current (Typical)	Overload Protection
2.0V	< 1.6V DC	0.25mA	600V RMS
Temperature
Range	Resolution	Accuracy	Overload Protection
-22°F ~ 14°F (-30°C ~ -10°C)	0.1°F (0.1°C)	± (1.0% + 5.4°F) ± (1.0% + 3.0°C)	300V RMS
15°F ~ 752°F (-9°C ~ 400°C)	0.1°F (0.1°C)	± (1.0% + 3.6°F) ± (1.0% + 2.0°C)	300V RMS
