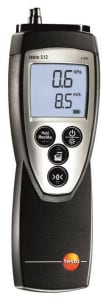

The testo 512, with a measuring range of 0 to 200 hPa, can be used to help you carry out quick and easy filter checks, when performing differential pressure checks on ventilation and air conditioning systems. Differential pressure measurements are carried out to determine whether filters still work properly, or if they are used up and clogged, and need to be replaced.
This differential pressure meter is ideal for carrying out pitot static tube measurements in air ducts at very high air flow speeds, or when the air stream is strongly polluted. This compact, rugged meter shows both the pressure and the air flow speed, and has a measuring range of 10 to 100 m/s.
The damper for adjustable averaging can be programmed individually, while the density compensation is already integrated.
The pitot static tube that you will need to carry out your air flow measurements can be ordered together with your differential pressure meter. Choose from one of three models to select the model that is best suited to your individual requirements. The pitot static tube is inserted into the air duct, where it measures the air flow quickly and reliably.
The testo 512 displays the pressure and air flow speed simultaneously. You can choose between two different units of measurement, m/s and fpm, to indicate the air flow speed, and from eight different units, psi, kPa, hPa, Pa, mmH2O, mmHg, inH2O, and inHg, to measure the pressure.
