Tektronix TPP0201 - Passive Voltage Probe (10X, 200 MHz)

Name: Tektronix TPP0201 - Passive Voltage Probe (10X, 200 MHz)
Brand: Tektronix
SKU: TektronixTPP0201
Price: 79.80 USD
Availability: InStock

0 reviews | Model: Tektronix TPP0201

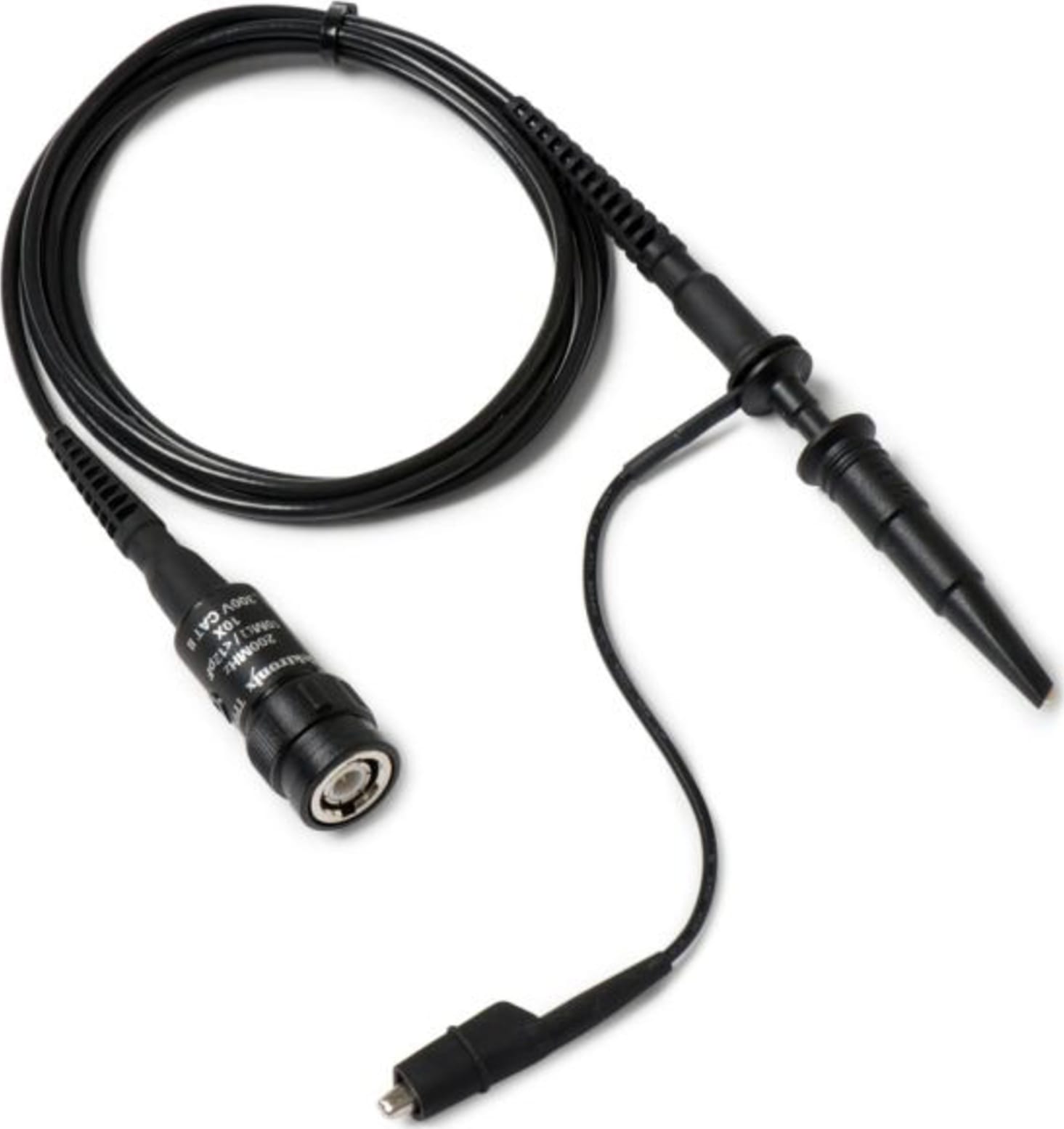

Tektronix TPP0201 - Passive Probe 200 MHz

Compare

Passive Probe: 200 MHz, 10X, BNC

Attenuation: 10X
Bandwidth: 200 MHz
Input Impedance: 10 MΩ || 12 pF
Maximum Voltage: 300 Vrms CAT II
1.3 m Length
UL61010-031; 2007, CAN/CSA C22.2 No. 61010-031-07, IEC61010-031; IEC 61010-031/A1:2008

View Product Details

List Price: $84.00

Your Price: $79.80

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Tektronix TPP0201 Passive Probe: 200 MHz, 10X, BNC	Tektronix TPP0200 Passive Probe: 200 MHz, 10X, BNC	Tektronix TPP0051 TPP0051 50 MHz, 10X Passive Voltage Probe for BNC Oscilloscopes w/1 MOhm ...	Tektronix TPP0101 TPP0101 100 MHz, 10X, 1M ohms/20pF Passive Voltage Probe	Tektronix TPP0100 TPP0100 100 MHz, 10X, 1M ohms/13pF Passive Voltage Probe	Tektronix TPP0500B TPP0500B 500 MHz, 10X Attenuation Passive Probe with TekVPI Interface
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Tektronix TPP0201 - Passive Voltage Probe (10X, 200 MHz)

Attenuation: 10X
Bandwidth: 200 MHz
Input Impedance: 10 MΩ || 12 pF
Maximum Voltage: 300 Vrms CAT II

The TPP0201 probes are 200 MHz, 10X passive voltage probes with 10 MΩ input resistance.

The TPP0201 probes are for use on BNC oscilloscopes with 1 MΩ/20 pF (TPP0201) inputs.

Application

Relative low-frequency measurements
Low-frequency computer and telecom measurements
Power supplies
Low-frequency amplifiers

Model: TPP0201 Specifications
Bandwidth	DC to 200 MHz
Rise time	<2.3 ns (typical)
Compensation Range
TPP0201	15 pF to 25 pF
Input Resistance	10 MΩ ±1.5%
Input capacitance	<12 pF (typical)
Propagation delay	~6.1 ns
Maximum input voltage	300 V_RMS CAT I
Physical characteristics
Probe cable length	1.3 m (4.2 ft)
EMC, environment, and safety
Temperature range
Operating	-10 °C to +55 °C (14 °F to 131 °F)
Nonoperating	-51 °C to +71 °C (-60 °F to 160 °F)
Humidity
Operating and nonoperating	5% to 95% relative humidity (%RH) up to 30 °C (86 °F), 5% to 65% RH above +30 °C (86 °F) up to +55 °C (131 °F)
Altitude
Operating	<3 km (9,842 ft)
Nonoperating	<12.2 km (40,026 ft)

Test Equipment General Attributes
Product Height	1.50 IN
Product Length	12.00 IN
Product Width	4.00 IN
Shipping Weight	0.2 LBS
Country of Origin	China
Shipping Height	1.50 IN
Shipping Length	12.00 IN
Shipping Width	4.00 IN
