Tektronix TAP3500 - 3.5 GHz Low Voltage Single Ended Probe

Name: Tektronix TAP3500 - 3.5 GHz Low Voltage Single Ended Probe
Brand: Tektronix
SKU: TektronixTAP3500
Price: 8790.00 USD
Availability: InStock

0 reviews | Model: Tektronix TAP3500

Compare

TAP3500 3.5 GHz Active Probe, Single-Ended w/ TEKVPI Interface (w/ Certificate of Traceabl

Attenuation: 10X
Bandwidth: 3.5 GHz
Input Impedance: 40 kΩ || ≤ 0.8 pF
Maximum Voltage: ± 4 V
Small compact probe head for probing small geometry circuit elements
DUT attachment accessories enable connection to SMDs as small as 0.5 mm pitch
Robust design for reliability
Connects directly to oscilloscopes with the TekVPI™ probe
interface
Provides automatic units scaling and readout on the oscilloscope display
Easy access to oscilloscope probe menu display for probe status/ diagnostic information and to control probe DC offset
Remote GPIB/USB probe control through the oscilloscope

View Product Details

Your Price: $8,790.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Tektronix TAP3500 TAP3500 3.5 GHz Active Probe, Single-Ended w/ TEKVPI Interface (w/ Certi ...	Tektronix TAP1500 Active Probe: 1.5 GHz, 10X, Single-ended, TekVPI	Tektronix TAP2500 Active Probe: 2.5 GHz, 10X, Single-ended, TekVPI
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Tektronix TAP3500 Accessories

Choose a Category

Warranty and Calibration

for the Tektronix TAP3500

Tektronix TAP3500C3 Calibration service 3 years. Includes traceable calibration or...

Catalog: TAP3500C3

(0)

In Stock!

Add to Cart

Tektronix TAP3500C5 Calibration service 5 years. Includes traceable calibration or...

Catalog: TAP3500C5

(0)

In Stock!

Add to Cart

Tektronix TAP3500D3 Calibration Data Report 3 Years with option C3 for TAP3500 Low...

Catalog: TAP3500D3

(0)

In Stock!

Add to Cart

Tektronix TAP3500D5 Calibration Data Report 5 Years with option C5 for TAP3500 Low...

Catalog: TAP3500D5

(0)

In Stock!

Add to Cart

Tektronix TAP3500R3 Standard Warranty Extended to 3 Years. Covers parts labor and...

Catalog: TAP3500R3

(0)

In Stock!

Add to Cart

Tektronix TAP3500R5 Standard Warranty Extended to 5 Years. Covers parts labor and...

Catalog: TAP3500R5

(0)

In Stock!

Add to Cart

Tektronix TAP3500 - 3.5 GHz Low Voltage Single Ended Probe

Attenuation: 10X
Bandwidth: 3.5 GHz
Input Impedance: 40 kΩ || ≤ 0.8 pF
Maximum Voltage: ± 4 V
Small compact probe head for probing small geometry circuit elements

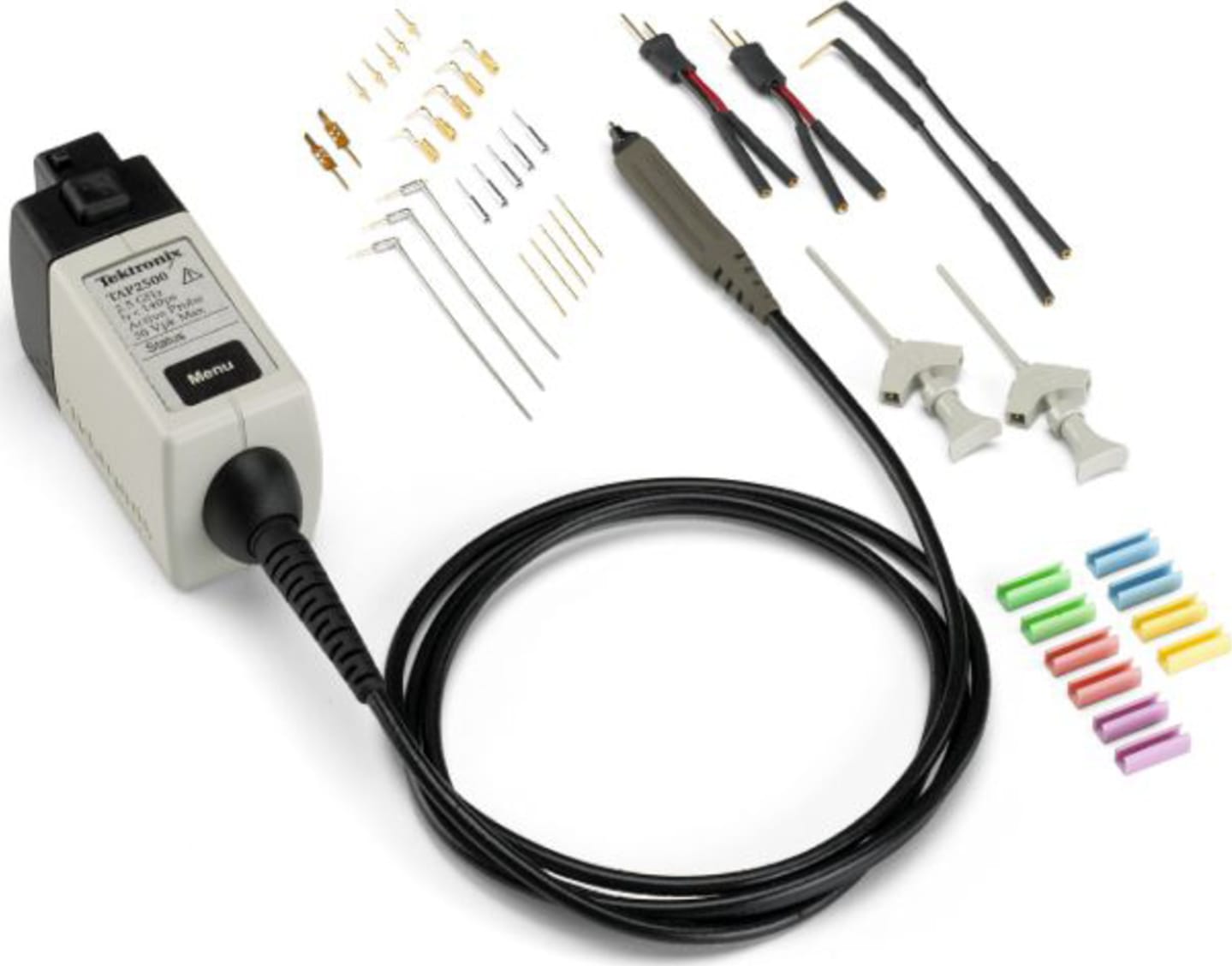

The TAP3500 Single-ended Active FET probes provide The excellent high-speed electrical and mechanical performance required for today's digital system designs.

Easy to use

Connects directly to oscilloscopes with the TekVPI™ probe interface
Provides automatic unit scaling and a readout on the oscilloscope display
Easy access to oscilloscope probe menu display for probe status/ diagnostic information and to control probe DC offset
Remote GPIB/USB probe control through the oscilloscope

Applications

Verification, debug, and characterization of high-speed designs
Signal integrity, jitter, and timing analysis
Manufacturing engineering and test
Signals with voltage swings up to 8 Vp-p

Y-lead adapter (2 each) and 3 in. ground lead (3 each)
Micro CKT test tip (2 each)
Customizable ground lead (set of 5)
Color band kit (5 colored pairs)
Pogo pin ground (set of 10)
Square pin socket (set of 10)
Push-in probe tip (set of 10)
Right-angle adapter (set of 10)
SureToe™ Adapter (set of 4)
Antistatic wrist strap
Nylon carrying case
Plastic accessory case
Instruction manual

Attenuation (probe only)	10X
Rise time (probe only)	<130 ps
Typical characteristics
Bandwidth (probe only)	≥3.5 GHz
Input capacitance	≤0.8 pF
Input resistance	40 kΩ
Input dynamic range	±4.0 V
Input offset range	±10 V
Maximum non-destructive input voltage	±30 V (DC + peak AC
Propagation delay	5.3 ns
Physical characteristics
Height	7.6 mm (0.30 in)
Width	7.6 mm (0.30 in)
Length	57.2 mm (2.25 in)
Cable length	1300 mm (51 in)
Unit	1.55 kg (3.44 lbs) (probes, accessories, and packaging)
Net	0.091 kg (0.2 lbs) (probe only, using ME lab scale)
Temperature
Operating	0 °C to +50 ° (+32 °F to 122 °F)
Nonoperating	-40 ° C to +71 °C (-40 °F to 160 °F)
Humidity
Operating	5% to 95% Relative Humidity up to +30 °C (+86 °F) 5% to 85% Relative Humidity at 30 °C to +50 °C (+86 °F to +122 °F) noncondensing
Nonoperating	5% to 95% Relative Humidity up to +30 °C (+86 °F) 5% to 85% Relative Humidity at 30 °C to +75 °C (+86 °F to +167 °F) noncondensing
Altitude
Operating	Up to 4,400 m (14,436 ft)
Nonoperating	Up to 12,192 m (40,000 ft)
Emissions compliance	EN 55011, Class A
