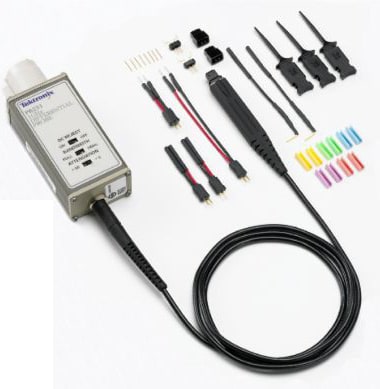

Tektronix P6251 - 1 GHz High Voltage Differential Probes

Name: Tektronix P6251 - 1 GHz High Voltage Differential Probes
Brand: Tektronix
SKU: TektronixP6251
Price: 8560.00 USD
Availability: InStock

0 reviews | Model: Tektronix P6251

Compare

1 GHz High-voltage Differential Probe with TekProbe-BNC Level II Interface.

Attenuation: 100X / 1000X
Bandwidth: 50 MHz
Input Impedance: 40 MΩ || 2.5 pF
Maximum Voltage
- 1000X: ± 5600 V
- 100X: ± 560 V
Outstanding Electrical Performance
- Selectable Bandwidth-limiting Filters
- DC Reject
Versatile DUT connectivity
- Small Compact Probe Head for Probing Small Geometry Circuit Elements
- Straight Pin, Square Pin, Solder Down, Variable Pitch Standard Accessories
- Robust Design for Reliability
Easy to use
- Provides Automatic Units Scaling and Readout on the Oscilloscope Display
- Connect directly to the TekProbe™ interface oscilloscopes, or to TekConnect® oscilloscopes using TCA-BNC adapter

View Product Details

Your Price: $8,560.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Tektronix P6251 1 GHz High-voltage Differential Probe with TekProbe-BNC Level II Interface ...
Price
In Stock
Compare	Add to compare

Recommended for you

Tektronix P6251 Accessories

Choose a Category

Oscilloscope Probe Accessories
Warranty and Calibration

for the Tektronix P6251

Tektronix 1103 1103 Provides External Power Supply for TEKPROBE BNC Interface Probes

Catalog: 1103

(0)

In Stock!

Add to Cart

Tektronix P6251 C3 Calibration service 3 years. Includes traceable calibration or...

Catalog: P6251 C3

(0)

In Stock!

Add to Cart

Tektronix P6251 C5 Calibration service 5 years. Includes traceable calibration or...

Catalog: P6251 C5

(0)

In Stock!

Add to Cart

Tektronix P6251 R3 Standard Warranty Extended to 3 Years. Covers parts, labor and...

Catalog: P6251 R3

(0)

In Stock!

Add to Cart

Tektronix P6251 R5 Standard Warranty Extended to 5 Years. Covers parts, labor and...

Catalog: P6251 R5

(0)

In Stock!

Add to Cart

Tektronix P6251 - 1 GHz High Voltage Differential Probes

Attenuation: 100X / 1000X
Bandwidth: 50 MHz
Input Impedance: 40 MΩ || 2.5 pF
Maximum Voltage
- 1000X: ± 5600 V
- 100X: ± 560 V

The P6251 High-voltage Differential Probes provide the excellent high-speed electrical and mechanical performance required for today's Switch Mode Power Supply (SMPS), CAN/LIN Bus, and high-speed digital system designs.

Applications

High-speed Switch Mode Power Supply Design
CAN/LIN Bus Design
High-speed Digital Design
Digital Design and Characterization
Manufacturing Engineering Test
Research and Development

Bandwidth (Probe only)	1 GHz
Attenuation	5x, 50x
Rise Time (Probe only)	≤350 ps
Differential Input Capacitance	<1 pF
Differential Input Resistance	1 MΩ
CMRR	>55 dB at 30 kHz >50 dB at 1 MHz >18 dB at 250 MHz (warranted at 50x attenuation)
Sensitivity/Noise Level	2 mVRMS (5x attenuation) 1 mVRMS (50x attenuation) referred to the probe output 10 mVRMS (5x attenuation) 50 mVRMS (50x attenuation) referred to the probe input
Differential Mode Input Voltage	±42 V (DC + pk AC); 30 VRMS
Common Mode Input Voltage	±35 V (DC + pk AC); 25 VRMS
Input Offset Range	±4.25 V (5x attenuation); ±42 V (50x attenuation)
Max Input Voltage (Nondestruct)	±100 V (DC + pk AC)
Selectable Bandwidth Filter Limits	5 MHz, Full
DC Reject	0.4 Hz (5x), 4 Hz (50x)
Gain Accuracy at DC	±2%
Propagation Delay	6.5 ns
Scope Interface	TekProbe BNC Level II Interface
Power Requirements	P6250 and P6251 are powered directly by the TekProbe-BNC interface, eliminating the need for additional power supplies and cables when used with TekProbe-BNC oscilloscopes. P6250 and P6251 may also be powered through the 1103 TEKPROBE Power Supply for use with non-TekProbe interface instrumentation.
Standard Warranty	1-year parts and labor
Recommended Oscilloscopes	TDS5000 Series, TDS500, TDS600, and TDS700 Series, and other Tektronix oscilloscopes with TekProbe BNC-Level2 interface DPO70000, DSA70000, TDS6000, and TDS7000 oscilloscopes with TekConnect® Interface and TCA-BNC Required Adapter
Required Oscilloscope Firmware	TekProbe-BNC Level II Oscilloscopes and adapter (TCA-BNC): TekProbe-BNC interface is firmware-independent

Tech Specs

Test Equipment General Attributes
Product Height	3.40 IN
Product Length	14.70 IN
Product Width	12.70 IN
Country of Origin	United States
Shipping Height	3.40 IN
Shipping Length	14.70 IN
Shipping Width	12.70 IN
