O/E Converter (30 KHz to 10 GHz) with FC/UPC Connection

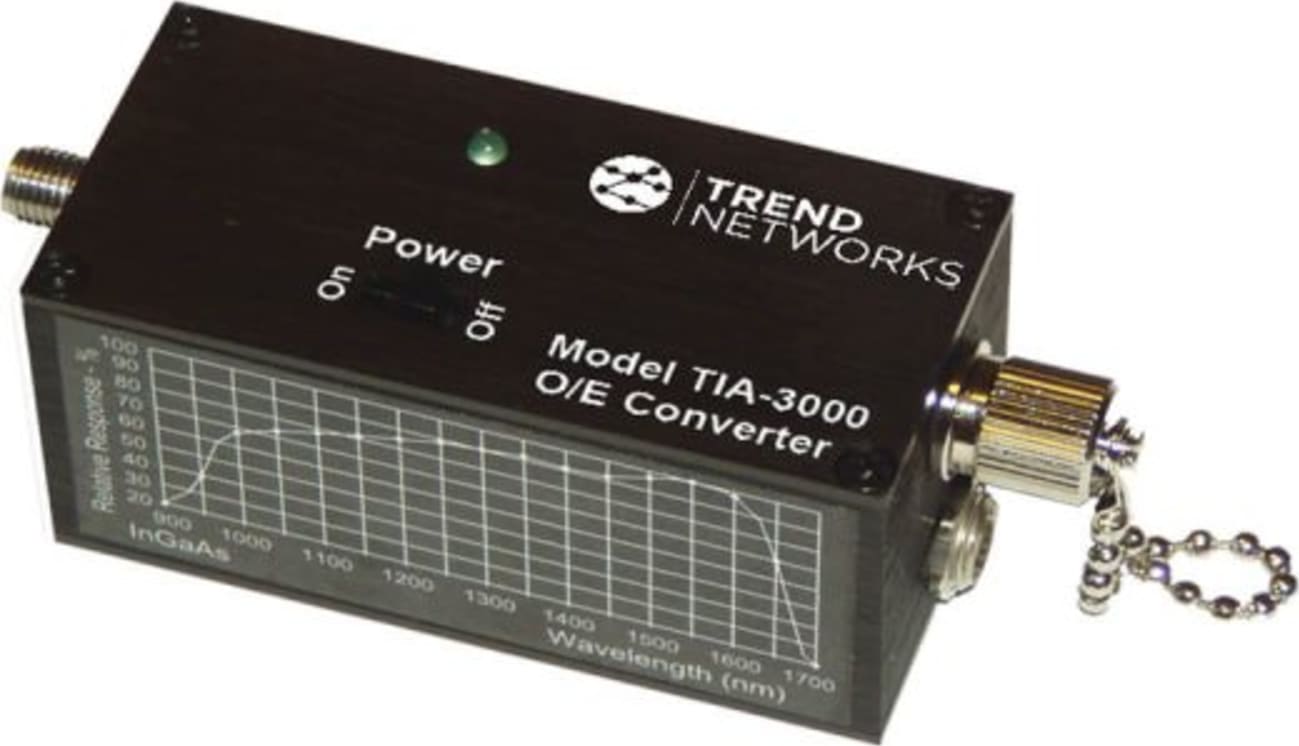

The TIA-3000 Optical to Electrical Converter is a convenient high bandwidth detection system for fiber optic applications. With a typical bandwidth of 30 KHz to 10 GHz, it accurately provides an electrical replica of the optical signal presented to it. It is intended to drive a 50 ohm cable terminated in its characteristic impedance.
The unit is equipped with an InGaAs/InP detector that is responsive in the wavelength range of 900 - 1700 nm. The TIA-3000 is provided with an FC fiber optic receptacle. Other fiber optic connectors can be provided on request. The output signal is presented to a type K SMA female connector.
Each unit is powered by an external 9 V wall-mount power supply.
Calibration - This is a qualitative measurement device. No calibration is required or necessary.
Series Comparison
| Model/BW | Bandwidth | Output | Detector | Wavelength | Power | AC/DC Coupling | Conversion Gain @ Peak Wavelength |
| TIA-525S | 125 MHz | BNC | Silicon | 400 -1000 nm | 9 V Lithium Battery / Univ. Power Supply | Selectable | 100,000 V/W |
| TIA-525I | 125 MHz | BNC | InGaAs | 850 - 1700 nm | 9 V Lithium Battery / Univ. Power Supply | Selectable | 100,000 V/W |
| TIA-527 | 125 MHz | BNC | Matched InGaAs | 850 - 1700 nm | 9 V Lithium Battery / Univ. Power Supply | Selectable | 100,000 V/W |
| TIA-952 | 750 MHz | BNC | InGaAs | 850 - 1700 nm | Universal Power Supply | AC | 2500 V/W |
| TIA-1200 | 12 GHz Typ. | Type K SMA Female | InGaAs | 900 - 1700 nm | Universal Power Supply | DC | 0.8 A/W |
| TIA-3000 | 10 GHz | Type K SMA Female | InGaAs | 900 - 1700 nm | Universal Power Supply | AC | 450 V/W |
