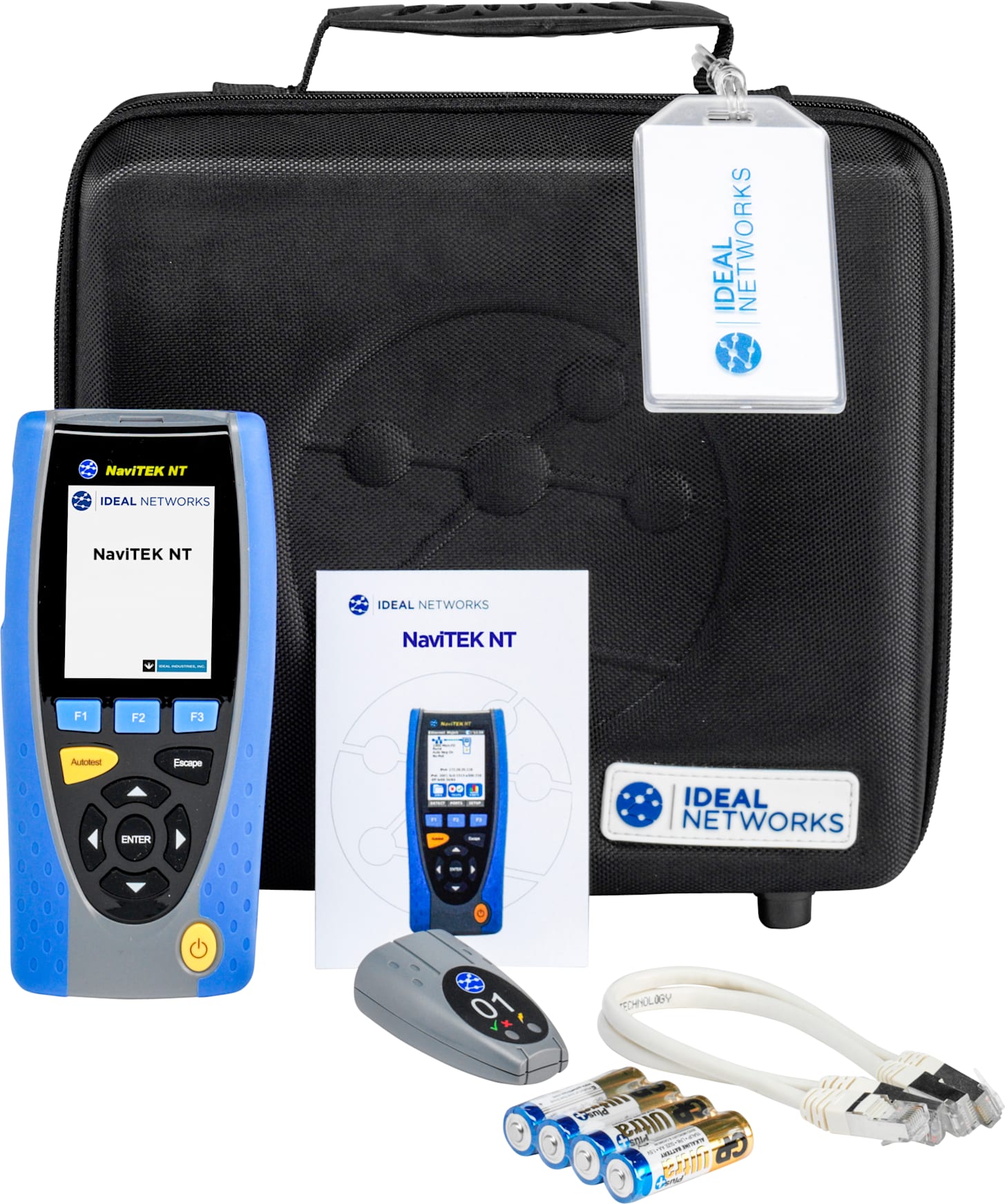

| NaviTEK NT Pro Specification |
| Connectors |
| RJ45 |
| Used for |
- Cable Test
- Ethernet Test |
| Connector type |
Lifejack with user-replaceable contacts |
| Optical |
| Used for |
Ethernet Test |
| Connector type |
SFP socket |
| USB |
| Used for |
- Software Update
- Results transfer
- 802.1x certificate transfer
- Import/export of config
- WiFi Adapter |
| Class |
Host |
| Connector type |
A |
| USB type |
1.1 |
| Power |
| Used for |
Battery charging
Mains powering via adaptor |
| Connector type |
2.5mm pin power jack |
| Polarity |
Centre pin positive |
| Voltage |
12v |
| Current |
2 A |
| Location |
Bottom of optional power module
(Not present in standard alkaline battery pack) |
| Controls |
| Push button |
| Used for |
Power ON/OFF |
| F1 to F3 |
| Used for |
Screen-defined functions |
| Cursor and ENTER |
| Used for |
User interface navigation |
| Escape |
| Used for |
Return to previous menu |
| Autotest |
| Used for |
Launch of automatic test function |
| Push button |
| Used for |
Escape from exceptional lockup condition |
| Displays |
| LCD |
| Used for |
Display of setup functions and results |
| Location |
Front |
| Size |
2.8 inch diagonal |
| Type |
QVGA Colour |
| Pixels |
240 x 320 |
| Charger LED |
| Used for |
Indication of charging status |
| Colour |
Green |
| Location |
Bottom of standard power module (Not present in optional alkaline battery pack) |
| RJ45 Link LED |
| Use |
ON indicates link UP |
| Colour |
Green |
| RJ45 Activity LED |
| Use |
Flashing indicates link activity |
| Colour |
Green |
| Optical Link LED |
| Use |
ON indicates Optical link UP |
| Colour |
Green |
| Optical Activity LED |
| Use |
Flashing indicates Optical link activity |
| Colour |
Green |
| Ports |
| Setup |
| Auto Negotiation |
Enabled
Disabled |
| Speed |
10Mb/s
100Mb/s
1Gbps |
| Mode |
Full Duplex
Half Duplex |
| MDI |
AUTO
MDI
MDIX |
| Min Rx Size |
19:99 bytes |
| MAC |
Factory set |
| VLAN |
Enabled / Disabled
VLAN ID – 0 to 4094
VLAN Priority – 0 to 7 |
| 802.1x |
Enabled / Disabled
EAP Method
EAP-MD5
EAP-MSCHAPV2
EAP-GTC
EAP-TLS
EAP-PEAP/MD5
EAP-PEAP/MSCHAPV2
EAP-PEAP/GTC
EAP-PEAP/TLS
EAP-TTLS/MD5
EAP-TTLS/MSCHAPV2
EAP-TTL/GTC
EAP-TTLS/TLS
Username
Password
Certificate
Import password
Root/CA certificate |
| Results |
| Link pulse polarity |
Normal or Inverted |
| Link pulse height |
Normal or Low |
| Tests |
| Ethernet Mode |
Ping4
Ping6
Trace Route4
Trace Route6
Hub Blink
Netscan
Loopback
Auto (Ping DNS/Gateway/Internet, Trace Route,
Netscan) |
| Cable Mode |
Wiremap
Tone Generator
Auto (Wiremap) |
| Service Detection |
| Detected Services |
PoE (802.3af/at. Not Cisco pre-standard)
ISDN S
PBX
Unknown |
| Supported SFPs |
| The following SFP types are supported. Use of other types of SFP is possible but correct operation is not guaranteed. |
| SFP Type SX |
| Manufacturer Part # |
Avago AFBR-5705Z / Apac LM28-C3S-TI-N-DD |
| Speed |
1Gbps |
| Fibre Type |
Multimode |
| Wavelength |
850nm |
| Connector Type |
LC Duplex |
| SFP Type LX |
| Manufacturer Part # |
Avago AFCT-5705Z |
| Speed |
1Gbps |
| Fibre Type |
Singlemode |
| Wavelength |
1310nm |
| Connector Type |
LC Duplex |
| SFP Type ZX |
| Manufacturer Part # |
Apac LS48-C3U-TC-N-DD |
| Speed |
1Gbps |
| Fibre Type |
Singlemode |
| Wavelength |
1550nm |
| Connector Type |
LC Duplex |
| Setup |
| Speed |
1Gb/s |
| Min Rx Size |
19:99 |
| MAC |
Factory set |
| VLAN |
Enabled / Disabled
VLAN ID – 0 to 4094
VLAN Priority – 0 to 7 |
| 802.1x |
Enabled / Disabled
EAP Method
EAP-MD5
EAP-MSCHAPV2
EAP-GTC EAP-TLS
EAP-PEAP/MD5
EAP-PEAP/MSCHAPV2
EAP-PEAP/GTC
EAP-PEAP/TLS
EAP-TTLS/MD5
EAP-TTLS/MSCHAPV2
EAP-TTL/GTC
EAP-TTLS/TLS Username
Password
Certificate
Import password
Root/CA certificate
|
| Tests |
| Optical |
Tx Power dBm (using a specified SFP)
Rx Power dBm (using a specified SFP) |
| Ethernet Mode |
Ping4
Trace Route4
Hub Blink
Netscan
NET TEST (Ping, Trace Route, Netscan) |
| Cable Tests |
| Setup |
| Cable Type |
2 Pair
4 Pair 568A
4 Pair 568B |
| Colour Scheme |
|
| NVP |
Fixed 72%
Custom 59% - 89% |
| Termination Type |
| None |
Open |
| Active Remote |
#1 - #12 |
| Tests (No Termination) |
| Faults |
Open circuit by pair
Short circuit by pin |
| Length of pair |
Metres / Feet (Set in System Setup)
Range 3-100m / 10-330ft |
| Tests (Active Remote Termination) |
I/D – Remote #
Indications on Remote |
Voltage Warning (>±10volts on any pins)
Pass/Fail |
| Faults |
– Open circuit by pin
Short circuit by pin
Crossed pairs
Split pairs
Bridged shorts
Remote shorts |
| Length of pair |
Metres / Feet (Set in System Setup)
Range 3-100m / 10-330ft |
| Setup |
| No of Tones |
3 |
| Wire I/D |
Tone applied to one of 8 pins relative to the other 7
Tone applied across one of 4 pairs |
| Test |
| Audible tone detected using compatible tone probe |
| Ethernet Tests |
| Setup |
| Addressing |
DHCP
Static |
| Numerical |
Address
Netmask
Gateway
DNS1
DNS2 |
| Setup |
| IPv6 Enable |
Enabled
Disabled |
| Addressing |
Stateful (DHCPv6)
Stateless
Static |
| Numerical |
128bit HEX IP address |
| Network Prefix |
64 bit
128 bit |
| Setup |
| Target |
Numerical address
URL (Store up to 10) |
| Count |
1 to 999999 |
| Pause |
1 to 5 Sec |
| Length |
8 to 1000 bytes. |
| Results |
| Info |
READY
IN PROGRESS
PASSED
NO RESPONSE
UNKNOWN HOST |
| Tx Count |
1 to 999999 |
| Rx Count |
1 to 999999 |
| Delay(ms) |
Minimum
Average
Maximum |
| Setup |
| Target |
Numerical address
URL |
| Max Hops |
2 to 100 |
| Timeout |
2 to 30 sec |
| Type |
ICMP
UDP |
| Results |
| Info |
READY
IN PROGRESS
PASSED
NO RESPONSE
UNKNOWN HOST |
| Hop |
Numerical address |
| Delay(ms) |
t1
t2
t3 |
| Setup |
| Netscan |
Local
Custom
Disabled |
| IP Address |
IPv4 address |
| Scan Range |
0 (class C /24)
1 (class C /20)
2 (class B /16) |
| Results |
| |
List of IPv4 hosts List of IPv6 hosts |
| Test |
| Sequence |
Off/10/Off/100/Off/1000 Mb/s (RJ-45)
Off/On (Optical) |
| Statistics |
| IPv4 |
| |
info: listening, assigned, DHCP failed DHCP or Static
IPv4 Address
IPv4 Netmask
IPv4 Gateway
IPv4 DNS1
IPv4 DNS2 |
| IPv6 |
| |
Enabled or Disabled
info: listening, assigned, DHCP failed
Stateful (DHCPv6) or Stateless or Static
IPv6 Address
IPv6 Network Prefix, 64 bit or 128 bit
IPv6 Link Address
IPv6 DNS |
| Discovery |
| |
LLDP/CDP/EDP
Protocol
MAC address
Hostname / address
Port Name
Max 10 hosts |
| Detection |
1 Level VLAN ID Rx |
| Results |
| PORT |
PoE Voltage 0 – 60V
PoE Pairs 12/36 or 45/78
Speed, Duplex
MDI / MDIX
Signal Level Polarity |
| PARTNER |
10M-HD
10M-FD
100M-HD
100M-FD
1000M-HD
1000M-FD |
| Results |
| ERRORS |
Collisions
FCS Errors
Undersize
Oversize
Jabbers
Bad Length |
| Bargraph |
| Direction |
Rx |
| Format |
Percentage of Link rate
Peak value |
| Time Interval |
1 min
10 min
60 min |
| Storage |
| Internal storage |
| Number of configurations – 2 (Current & Factory settings) |
| Export/Import |
| Port |
USB |
| Format |
xml |
| 802.1x |
| Max number |
10 |
| Internal storage |
| Max Number of Jobs (Projects) |
50 |
| Max Number of result sets per Job |
5000 depending on tests performed |
| Max total number of result sets |
Up to 5000 depending on tests performed. |
| Export |
| Port |
USB
Wi-Fi |
| Format |
PDF
CSV (summary only) |
| System |
| Owner |
| Details |
Name
Company
Address
Phone |
| Preferences |
| Language |
English
French
German
Spanish
Italian
Portuguese
Chinese |
| Auto off |
Disabled
3 mins
10 mins
30 mins |
| Backlight |
Always On
Dims to 50% after 3 mins |
| Length Units |
Meters
Feet |
| Date Format |
dd/mm/yy
mm/dd/yy |
| Time Format |
12 hour
24 hour |
| Software update |
| Upgrade |
Via USB |
| General |
| Internal Clock |
| Used for |
Timestamping results |
| Autonomy |
Up to 1 day with battery removed |
| Battery |
| Supported Types |
Standard power module (4 x AA NiMH cells)
Alkaline battery pack with 4 AA cells |
| Autonomy |
Up to 5 hours (power module only) |
| Recharge time |
3 hours (Power module only) |
| Battery level Indication |
Full
2/3
1/3
Empty |
| Dimensions |
| Length |
175mm |
| Width |
80mm |
| Depth |
40mm |
| Weight |
| Unit |
0.22kg |
| Batteries |
0.18kg |
| Temperature |
| Operating |
0°C to 40°C |
| Storage |
-20°C to 70°C |
| Relative Humidity |
| Min |
5% |
| Max |
90% non-condensing |
| EMC |
EN 55022:2006 / A1:2007
EN55024:1998 / A1:2001 / A2:2003 |
| Safety |
| IEC 60950-1:2005+A1:2009/EN 60950-1:2006+A1:2010 |
