• Optical transmission rate: 2.0 Gb/S
• Laser wavelength: 850nm Multi-mode
• Analog bit rate: 12 bit
• Analog signal bandwidth: DC to 25 MHz (-3 dB)
• A/D sampling rate: 100 Megasamples/s

Depend On Our Analog And Digital Fiber Optic Link Equipment, Made In The USA

Analog/Digital Fiber Optic Links convert electronic analog and digital data to transmit over fiber optic links. Applications include data acquisition for plasma physics experiments, signal transmission and control of equipment at high voltage potentials, operations through Faraday shields, and precise noise-free signal transmission in hostile EMI environments.

The LTX-5510 and the LTX-5515 Signal Transports enable the precise conveyance of one analog channel plus up to four digital channels of information over fiber optic links ranging from meters to more than 10 kilometers. Incoming analog data is digitized to 12 or 14-bit precision at up to 100 mega-samples per second and transmitted over optical fiber at one to two gigabits per second depending on the model. The receiver acquires this digital data and accurately reconstructs the analog signal at the far end of the fiber optic link.

The analog signal bandwidth is from DC to 25 MHz ( -3 dB ). Two input voltage ranges are provided, ± 1 Volt and ± 5 Volts (Special input voltages may be requested). The input impedance of the transmitter analog channel may be set to 50 ohms or 1 megohm (75 ohms is optional). Multiplexed along with the analog data, are up to four independent TTL/ CMOS/LVTTL digital signals that may be toggled at rates of up to 48 Mb/s.

The LTX-5510 and LTX-5515 models are available in multi-mode or single-mode versions depending on the transmission distance required. The LTX-55XX-850 transmits at 850nm over multi-mode fiber optic links of up to 500 meters in length, while the LTX-55XX-1310 transmits at 1310nm over single-mode fiber to span distances exceeding 10 km.

Applications include data acquisition for plasma physics experiments, signal transmission and control of equipment at high voltage potentials, the transmission of high-quality video, and precise noise-free signal transmission in hostile EMI environments.

• The LTX-7225 converts up to 16 independent channels of digital information over a fiber optic link to over 10 kilometers with a simplex, singlemode fiber.
• The LTX-7215 Signal Transporter Transceivers one analog and four independent channels of digital information over a fiber optic link to over 10km with singlemode fiber.
• The LTX-5525 Signal Transporter Converter pair is designed to transmit 16 independent digital signals to a remote location via fiber optic cable.
• The LTX-5520 Signal Transporter Converter pair is designed to transmit 16 independent digital signals to a remote location via fiber optic cable.

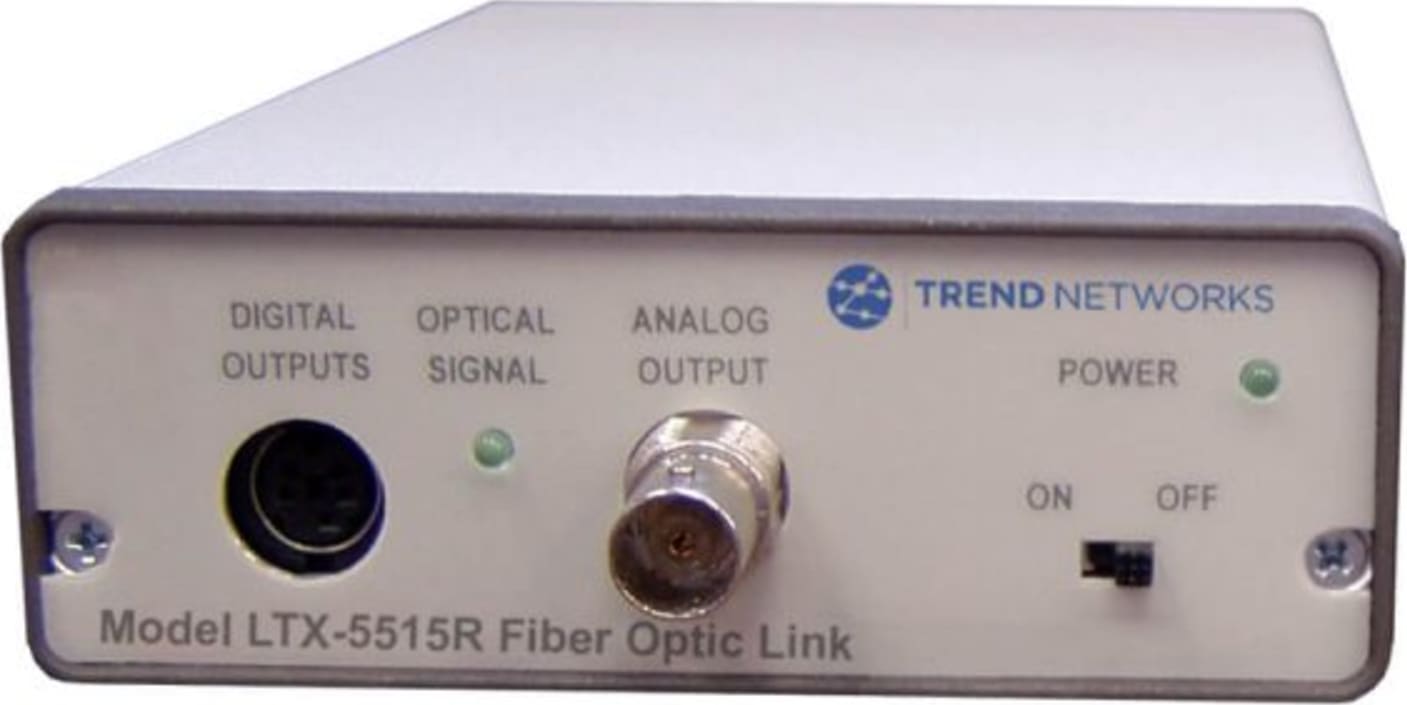

• The LTX-5515 Signal Transporter Converter pair is designed to transmit analog and digital signals to a remote location via fiber optic cable.
• The LTX-5510 Signal Transports enables the precise conveyance of one analog channel plus up to four digital channels of information over fiber optic links ranging from meters to more than 10 kilometers.
