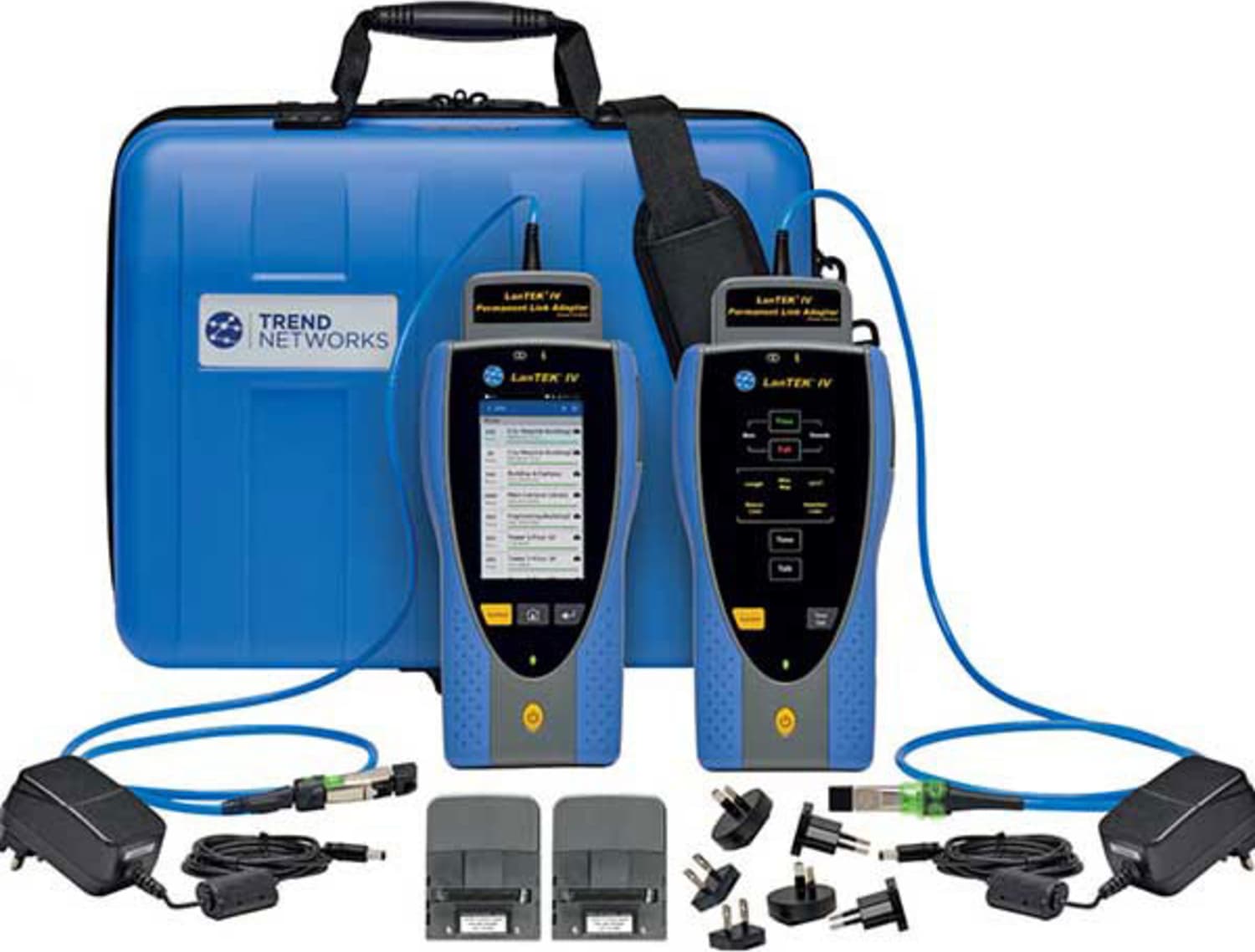

| Battery |
Lithium ion, 7.4VDC, 6.6AH (48.84 Wh typical)
Input: 12V/2A DC
Typical operating time: 8 hours (new battery running a Cat6 test every 2.5 minutes, full backlight)
Charge time: <4 hours quick charge with battery removed from handset, <8 hours inside handset |
| Input Power |
Handset: DC 12-15V, 2A |
| Line/mains power adapters |
Input: AC 110-240V, 50/60Hz
Output: 12 DC, 2500mA 5.5mm x 2.5mm x 12mm Center positive |
| Display |
IPS, 480x854 pixel, 5” diagonal |
| Connectivity |
Test module port: 120 pin ultra-low crosstalk module interface USC C (USB 2.0), USB A (USB 2.0), 3.5mm talk set jack, power/charging jack, integrated Wi-Fi (2.4/5 GHz bands) 802.11a/b/g/n (model available with Wi-Fi disabled). |
| Input Methods |
Capacitive touchscreen, USB keyboard, USB mouse |
| Frequency Range |
1-500 MHz, sweep defined by selected test standard |
| CPU Module (Main Handset) |
CPU: 1.0 GHz, 32 bit Cortex™ A9 processor, ARM 7 core.
System memory: 512 MB RAM
System storage: eMMC Flash 8 GB |
| CPU Module (Remote Handset) |
CPU: 900 MHz, 32 bit Cortex™ A7 processor, ARM 7 core
System memory: 128 MB RAM
System storage: eMMC Flash 8 GB |
| Test Storage |
Non-volatile flash, storage capacity for 2500 tests with graphs |
| Data Transfer |
Network transfer to cloud via Wi-Fi
Export to USB flash drive. Supports drives up to 256 GB (FAT32 format required) |
| Measurements |
Twisted Pair Copper Cabling:
Wire map, DC loop resistance length, capacitance, NEXT, insertion loss, ACR-N, return loss, average impedance, propagation delay, delay skew, power sum NEXT, power sumACR-N, ACR-F, power sum ACR-F, TCL (Transverse Conversion Loss), ELTCTL (Equal-Level Transverse Conversion Transfer Loss, DC loop resistance, DC resistance unbalance(pair-to-pair/intra-pair),Time Domain NEXT and Time Domain Return Loss fault finding identifies the location of NEXT and RL events.
Fibre Optic Cabling (optional FiberTEK IV test modules):
Dual wavelength insertion loss (each fibre), length.
Supported wavelengths: Multimode 850/1300nm, Single-mode 1310/1550nm. Fault location with integrated laser visual fault locator. |
| Supported Cable Types |
- TIA/EIA Category 3, 4, 5, 5E, 6, 6A and 8: 100Ω
- ISO/IEC Class C, D, E, EA, F, FA and 8: 100Ω
- OM1-OM5 multimode and OS1-OS2 single-mode fibre optic cable
|
| Test Interface |
- 120 pin ultra-low crosstalk connector
|
| Supported Connectors |
- TIA Cat 6/6A, ISO Class E/EA RJ-45 permanent link adapters
- TIA Cat 8.1, ISO Class I/II RJ-45 permanent link adapters
- TIA Cat 6/6A, ISO Class E/EA RJ-45 channel adapters
- TIA Cat 8.1, ISO Class I/II RJ-45 channel adapters
- TERA/GG45/EC7 (MMCPRO3000) Cat 8.2 universal adapters for channel and permanent link testing
- SC/FC/ST fibre optic connectors included with FiberTEK IV kits. LC adapter kit optional
|
| Test Times |
Copper: 7 sec to 1000 MHz, 23 sec to 3000 MHz including required/optional tests.
Fiber: 14 sec dual-wavelength, one direction. 28 sec, dual-wavelength, bi-directional. |
| Wiremap distance to fault display resolution |
10cm/3.9in |
| Length Measurement |
Copper - Measurement range: 0-600m/0-1,960ft
Fiber - Measurement range 0-10km/0-32,808ft
Display resolution: 0.1m/1ft |
| DC Resistance |
Measurement range: 0.02-200 ohms
Display resolution: 0.1 ohms |
| Propagation delay |
Measurement range: 1ns-1s
Display resolution: 1ns |
| RF measurements |
Accuracy: ISO/IEC 61935-1 Ed 5, ANSI/TIA-1152-A
Display resolution: 0.1dB |
| Optical Characteristics |
Typical output power: -20dBm 850nm, -15dB 1300nm, -7dBm 1310/1550nm
Receiver sensitivity: -60dBm loss measurement, -45dBm loss & length measurement
Encircled flux test cord insertion loss: <3.0dB each |
| Operating Temperature |
0°C to 45°C, non-condensing |
| Storage Temperature |
-20°C to 70°C, non-condensing |
| Vibration/Shock |
MIL-PRF-28800 F, Class 3 (met by design) |
| User Interface Languages |
Chinese, English, French, German, Italian, Portuguese, Russian and Spanish |
| Accuracy |
Certified by ETL to meet ANSI/TIA-1152-A Level 2G, IEC 61935-1 Level VI (3000 MHz model)
500 MHz model certified to Level IIIe |
| Conformance |
- IEC 61010-1:2010 Ed 3 - Safety requirements for electrical equipment for measurement, control and laboratory use.
- EN61326-1:2013 - Electrical equipment for measurement, control and laboratory use. EMC requirements.
- EN55011:2009 + A2:2010 - Industrial, scientific and medical equipment. Radio frequency disturbance characteristics.
- ENGl000-4-2:2009 - Electrostatic Discharge Immunity Test
- EN61000-4-3:2006+A2:2010 - Radiated, radio-frequency, electromagnetic field immunity test
- EN61000-4-4:2004+Al:2010 - Electrical Fast Transient / Burst Immunity Test
- ENGl000-4-5:2006 - Surge Immunity Test
- EN61000-4-6:2009 - Immunity to conducted disturbances, induced by radio-frequency fields
- EN61000-4-11:2004 - Voltage dips, short interruptions and voltage variations immunity tests
- Instrument: CE, C-Tick, FCC Part 15, Class A
- Battery: DOT 49 CFR 173.185, UN Part IV - section 38.3
|
