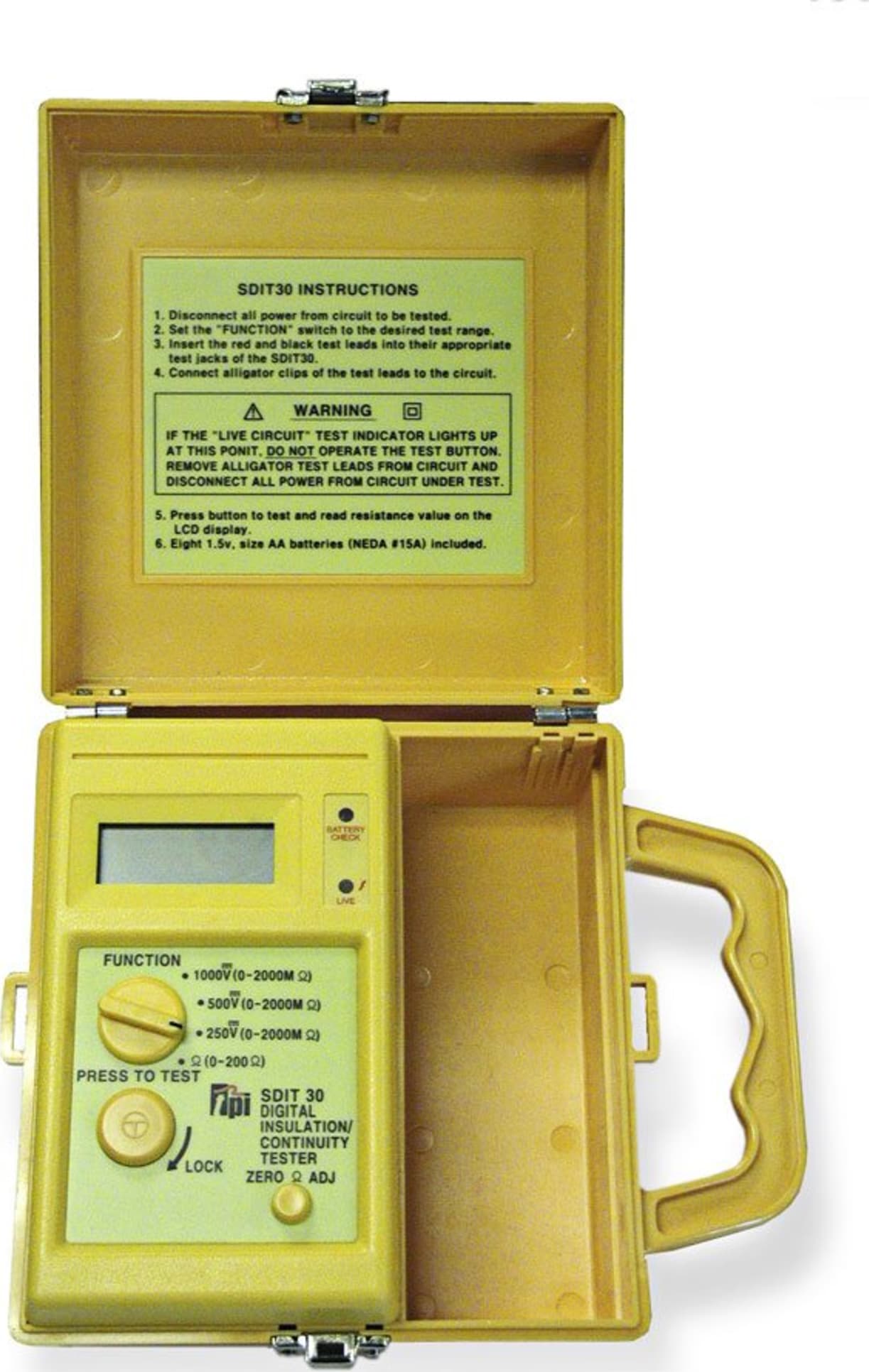

TPI SDIT30 Insulation Resistance Tester

0 reviews | UPC: 637623300059 | Model: TPI SDIT30

Compare

Digital Insulation Resistance Tester

Large 50,000 count display increases resolution and improves accuracy (1.7" x 2.75", 43mm x 70mm)
0-24mA output for process controls
Triple Display shows more than one reading simultaneously
51 Segment Analog Bar Graph to catch fast AC fluctuations
Back Light (LED Type) allows viewing in any light condition
Auto Range automatically selects the best range for the measurement
Separate battery and fuse compartment for easy replacement
Increased safety with Silicone rubber 1,000V CAT III, 600V CAT IV, 10A test leads (CE & cUL listed)
Auto Power Off DMM will automatically power down after approximately 15 minutes of inactivity to extend battery life. Disable Auto Power Off: Hold down the REC button and turn the meter on.
Diode Test displays approximate forward bias voltage
Continuity and buzzer to check for opens and shorts
Standard Accessories
A085: Consists of the A080UL listed silicone test lead set with A150 screw on alligator clips
A073: Consists of a six foot lead set with large alligator clips

View Product Details

List Price: $219.95

In Stock:

Recommended for you

Choose a Category

(0)

In Stock!

Add to Cart

(1)

In Stock!

Add to Cart

SDIT 30
Display	Digital
Backlight	No
Battery Check	Low battery indication
Warning Signal	Lamp & beep
Ohm Zero Adjust	Yes
Power Supply	Battery (1.5V x 8)
Fuse Protected	No
Category	CAT II 1,000V
Insulation
Test Voltage	250V/500V/100V
Open Circuit Voltage	250V, 480V, 950V (approximately)
Measuring Ranges	2,000MO/2,000MO/2,000MO
Accuracy	0 ~ 100MO (250V) : ±1.5% of reading ±3 digits 100 ~ 200MO (250V) : ±2% of reading ±5 digits 200 ~ 1,700MO (250V) : ±3% of reading ±7 digits 1,700 ~ 2,000MO (250V) : ±3% of readint ±8 digits 0 ~ 200MO (500V) : ±1.5% of reading ±2 digits 200 ~ 1,700MO (500V) : ±3% of reading ±4 digits 1,700 ~ 2,000MO (500V) : ±4% of reading ±6 digits 0 ~ 200MO (1,000V) : ±1.5% of reading ±2 digits 200 ~ 1,700MO (1,000V) : ±3% of reading ±3 digits 1,700~ 2,000MO (1,000V) : ±4% of reading ±5 digits
Continuity
Measuring Ranges	200O
Open Circuit Voltage	DC 170mV (approximately)
Short Circuit Current	24mA (approximately)
Accuracy	±1.5% of reading ±2 digits
ACV
Measuring Ranges
Input Frequency
Accuracy
Test Voltages	250V/500V/1,000V
Insulation Resistance	100MΩ/200MΩ/400MΩ
AC Voltage	No
Continuity	2Ω/20Ω

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 250 V, 500 V
Maximum Insulation Resistance	2000 M Ohms (2 G Ohms)
Type	Battery
Minimum Insulation Resistance	1 Ohms (0.000000001 G Ohms)
Variable Incremental Voltage	No
Display (Megohmmeter)	Digital
Continuity Test	Yes
Live Circuit Voltage Detection	Yes
Power Supply	Battery
Timer	No
CAT Rating	II
CAT Voltage	1,000 V
Test Equipment General Attributes
Unique Features	automatic discharge, push button or locking operation, audible alarm for detection of live circuit
Warranty	3 YEARS
Product Height	3.5 IN
Product Length	6.25 IN
Product Width	8 IN
Shipping Weight	3 LBS
Data Logging	No
HTS/Schedule B Number	9030.31.0000
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Korea
UPC	637623300059
