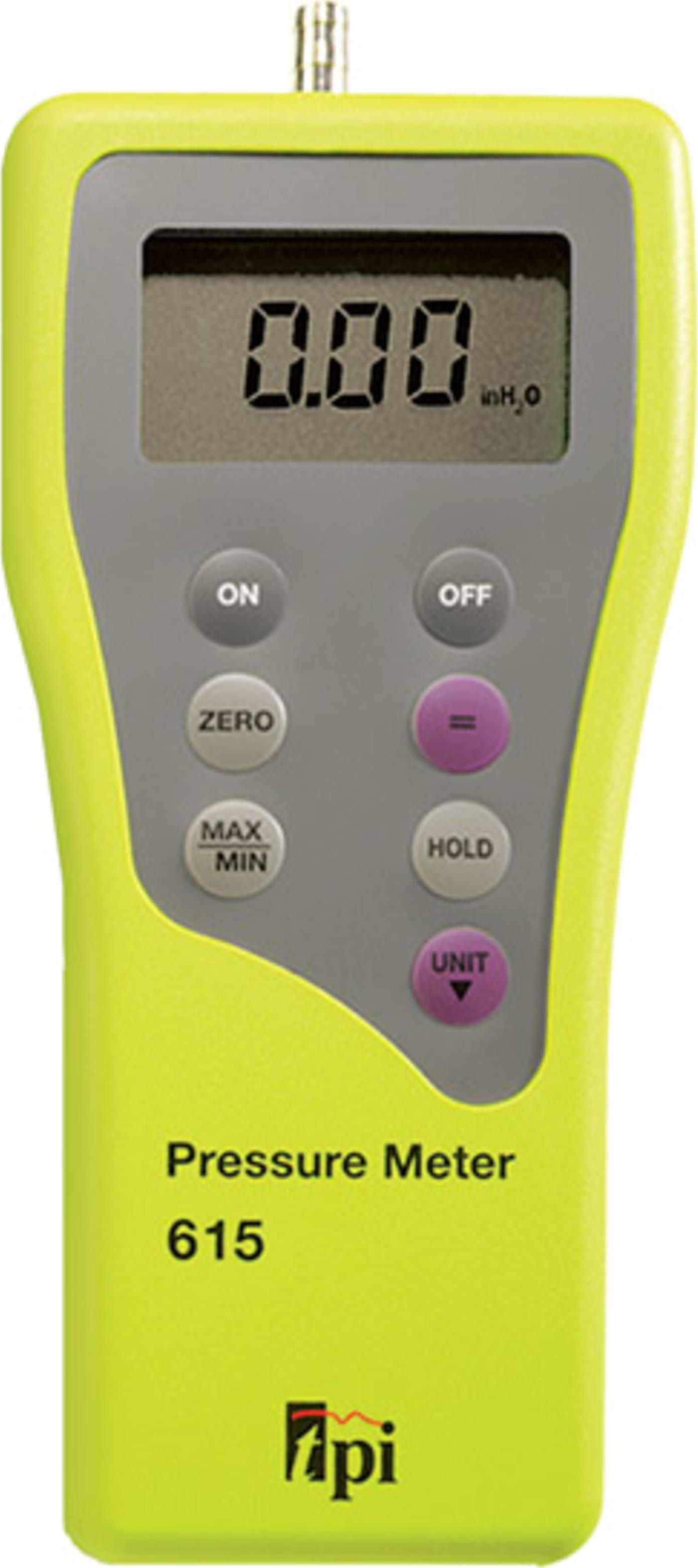

TPI 615 Digital Manometer

0 reviews | UPC: 637623006159 | Model: TPI 615

Compare

Single input, 7 selectable units of measure

Single input and 7 units of pressure.
Auto-Ranging
9V Battery included
3-Year Limited Warranty

Applications:

Adjusting appliance regulators
Setting delivery pressures
Leakage “Shut-In” tests
Regulator adjustments for pressure and lock-up tests
Furnace pressure switches in both positive and negative

View Product Details

List Price: $169.95

Your Price: $156.35

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	TPI 615 Single input, 7 selectable units of measure	TPI 621C3 Dual input, 0.001 resolution inH2O w/ A612, two A603, two A605, A908, and two A7 ...	TPI 621 Dual input, 0.001 resolution inches H2O, range -120 to 120 inches H2O	TPI 605 Digital Vacuum Guage (0 to 12,000 microns)	TPI 623 Dual input, 0.001 resolution inH2O, accuracy < /- 2 inH2O /- 00.2 inH2O	TPI 625 Dual input, 7 selectable units of measure	TPI 635 Dual input, 7 selectable units of measure, 5 psi	TPI 665 Digital manometer, Dual input, 7 selectable units of measure, 1/4NPT fittings, dat ...	TPI 645NPT 645NPT with A608 stainless steel compression fittings, A091 and A604	TPI 665L Digital manometer, Dual input, 7 selectable units of measure, 1/4NPT fittings, da ...	TPI 645 Dual input, 7 selectable units of measure, 30 psi	TPI 620 Dual input, inH2O	TPI 610 Single input, inH2O	TPI 608 Low cost single input manometer, four units of measure
Price
In Stock
Type (Manometer)	Digital	Digital	Digital		Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital
Max Pressure	1.734 psi (48.00 IN of H2O)	4.34 psi (120.13 IN of H2O)	4.34 psi (120.13 IN of H2O)		1.45 psi (40.14 IN of H2O)	1.734 psi (48.00 IN of H2O)	5 psi (138.40 IN of H2O)	101.5 psi (2809.51 IN of H2O)	29 psi (802.72 IN of H2O)	101.5 psi (2809.51 IN of H2O)	29 psi (802.72 IN of H2O)	1.734 psi (48.00 IN of H2O)	1.734 psi (48.00 IN of H2O)	60 IN of H2O
Type of Input	Single	Dual, Single	Dual, Single		Dual, Single	Dual, Single	Dual	Dual	Dual	Dual	Dual	Dual, Single	Single	Single
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Utility and HVAC troubleshooters look to TPI for isolating difficult pressure problems on natural gas and propane systems. Replace messy U-Tube manometers and expensive pressure gauges with a TPI 600 series manometer. Test for leaks in low-pressure gas systems. All models provide accurate readings (basic accuracy of ±0.5% reading with a .01 inch resolution).

Units of measurement for the 615 and 625 are mmHg, inHg, kPa, mbar, PSI, inH20, and mmH20. The 610 and 620 only measure in inches of water.

Auto Range	-15 to +48 inches of water
Accuracy	±0.5% of Reading + 5 digits
Over Pressure	500 mbar
Power Supply	9 Volt
Relative Humidity	0% to 80% (0° to + 40°)
Operating Temp	0°C to +40°C
Storage Temp	-10°C to +50°C
Auto Power Off	After 40 Minutes

Tech Specs

HVAC Equipment and Instruments/Manometer Template
Type (Manometer)	Digital
Max Pressure	1.734 psi (48.00 IN of H2O)
Type of Input	Single
Engineering Units (HVAC)	inch H2O, inch Hg, kPa, mmHg, psi Engineering Units (HVAC) also mBar
Measurement	Absolute, Vaccum
Min/Max/Hold	Yes
Altitude Capability	Yes
Test Equipment General Attributes
Unique Features	smoothing function to stabilize rapidly changing pressure readings Single Input -15 to +48 inches of water, autoranging 500 mBar overpressure Displays 7 different units: 1. mmHG = MILLIMETERS OF MERCURY 2. inHg = INCHES OF MERCURY 3. kPa = KILO PASCALS 4. mBar = MILLIBARS 5. PSI = POUNDS PER SQUARE INCH 6. inH2O = INCHES OF WATER 7. mmH2O = MILLIMETERS OF WATER
Warranty	3 YEARS
Safety Approval	CE, UL
Product Height	2.50 IN
Product Length	7.50 IN
Product Width	12.00 IN
HTS/Schedule B Number	9026.80.2000
ECCN Number	EAR99
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Korea
Shipping Height	2.50 IN
Shipping Length	7.50 IN
Shipping Width	12.00 IN
