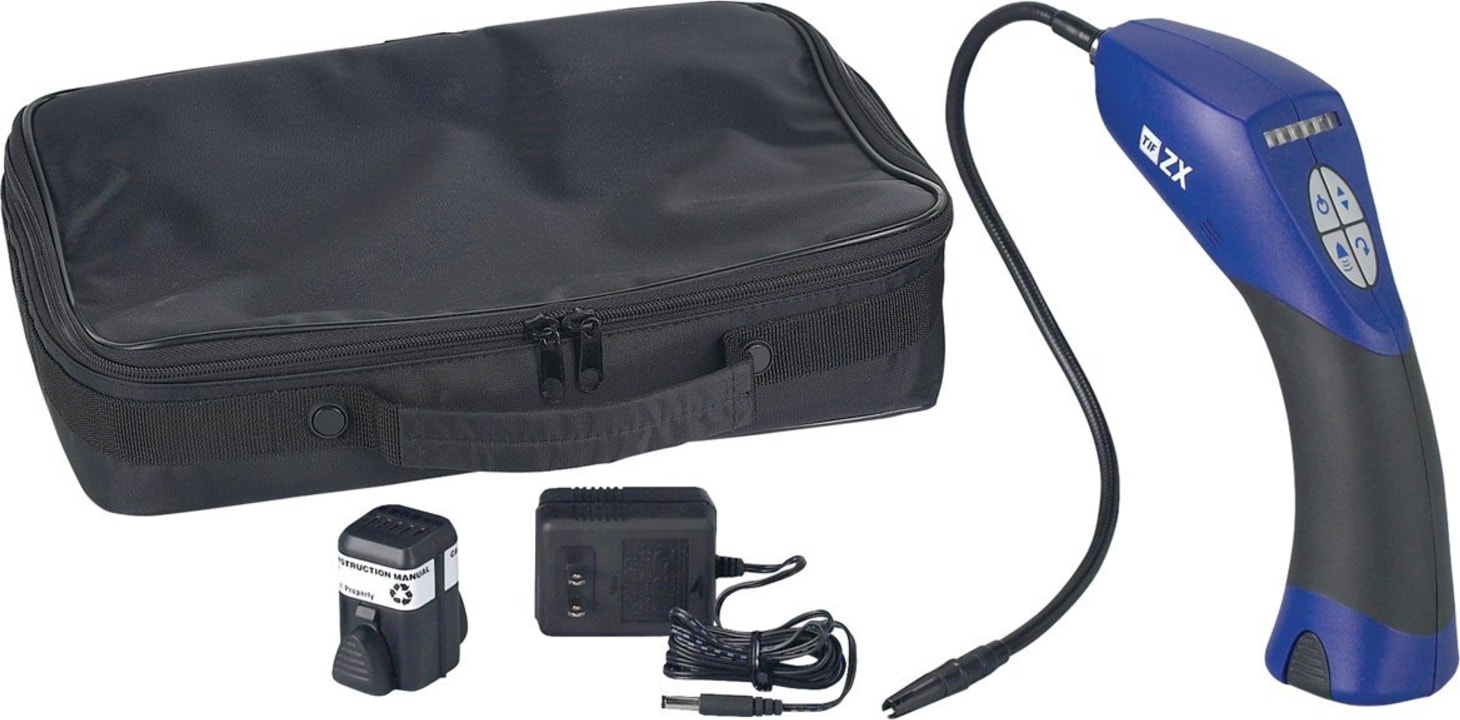

TIF TIFZX-1E Heated Pentode Halogen Leak Detector EU

5 (3 Reviews) | Model: TIF TIFZX-1E

Compare

HEATED PENTODE LEAK DETECTOR EU

Heated Pentode sensor technology
Tri-color visual leak size indicator
Detects all CFC, HFC, HCFC's including R-12, R-22, R-123, R-134a, R-404a, R-407a, R-408a, and R-410a.
Tactile keypad controls with one-touch reset and adjustable sensitivity
True mechanical pump provides instant response & clearing
Battery test function
Sensor failure indication
Rechargeable batteries
Revolutionary design

View Product Details

Recommended for you

Heated Pentode Halogen Leak Detector EU
TIF's heated-pentode leak detector uses proven heated-pentode technology with an improved grip and easy-to-read display. The design eliminates false alarms from moisture, solvents and cleaners. An improved, true mechanical pump allows for instant response and clearing. Features heated pentode sensor technology, tri-color visual leak size indicator, tactile keypad controls with one-touch reset and adjustable sensitivity, true mechanical pump provides instant response and clearing, battery test function, sensor failure indication, and rechargeable batteries. New revolutionary design and detects all CFC, HFC, HCFC's including R-12, R-22, R-123, R-134a, R-404a, R-407a, R-408a, and R-410a.

Technical Data
Sensor Technology	Heated Pentode (advanced heated diode)
Electronic Technology	Microprocessor-controlled circuit, including constant battery and sensor condition detector.
Refrigerants detected	Detects all CFC, HFC, HCFC's including R-12, R-22, R-123, R-134a, R-404a, R-407a, R-408a, and R-410a
Sensitivity	Less than 0.1 oz/yr (3 gr/yr); as low as 0.05 oz/yr (R-12)
Warm-up Period	20 seconds
Excessive Refrigerant Tolerance	Sensor cannot be poisoned by excessive refrigerant
Battery Life	5 to 6 hours, depending on sensor age. Integral constant power indication.
Battery Technology	Rechargeable NiMH
Battery Recharge Time	2 hours, integral charge status indicator.
Failed Sensor Indication	All LEDs flash red, pump off.
Sensor Life	Up to 150 hours
Operating Environment	0°C to 50°C (32°F to 122°F), 0 to 95% RH non-condensing
Dimensions	26 cm L x 6.5 cm Dia. (10.25" L X 2.5" Dia.)
Weight	Approximately 452 grams (16 ounces)

Test Equipment General Attributes
Warranty	3 YEARS
Product Height	3.10 IN
Product Length	16.90 IN
Product Width	5.00 IN
Battery Type	Ni-Cad, NimH
Power Supply Voltage	Battery Powered
Shipping Height	3.10 IN
Shipping Length	16.90 IN
Shipping Width	5.00 IN
