TIF 785 - Photo Tachometer

1 (1 Review) | UPC: 687744601887 | Model: TIF 785

Compare

DIGITAL INFRARED PHOTO TACH

5-digit LCD readout
Scan / hold function
Laser sighting
Measurement of RPM (revolutions per minute); REV (revolutions); surface speed; and length
Capable of non-contact RPM measurements to a distance of 3ft . (100 cm) from the target
Adapters included for contact measurements
Stores up to 40 data points: MAX, MIN, AVG, and DATA
Auto shutdown
One-year warranty

View Product Details

List Price: $371.85

Your Price: $223.93

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

TIF 785 - Photo Tachometer

5-digit LCD readout
Scan / hold function
Laser sighting

The TIF 785 is capable of measuring and recording rotational, linear and surface speeds, and features both contact and non-contact modes. Non-contact function makes it easy to use in hard to reach or tight spaces, while its easy to handle palm sized design makes it easy to maneuver when performing traditional contact measurement.

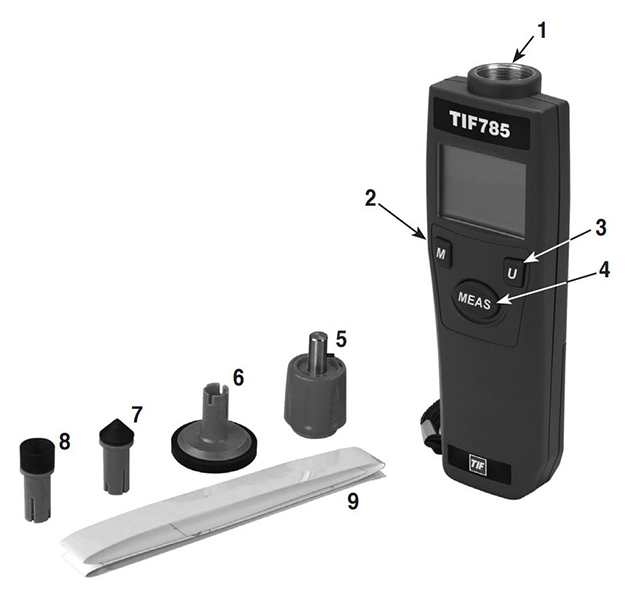

Parts and Controls

Laser beam outlet-for non-contact RPM measurements
"M" Button-for data storage and recall
"U" Button-to set a unit of measurement mode
"MEAS" Button-turns ON unit and records measurements
Contact adapter
Wheel adapter
Cone adapter
Funnel adapter
Reflective tape

Also included: 9-Volt battery, Carrying case

General Specifications
Range:	Non-Contact: 6.0-99,999 RPM (rev/min) Contact: 6.0-25,000 RPM (rev/min)
Accuracy:	6.0-5,999.9 RPM ± 0.01% 5,999.9-99,999 RPM ± 0.05%
Resolution:	6.0-9,999.9 RPM 0.1 RPM 10,0000-99,999 RPM 1 RPM
Response Time:	< 1 sec
Auto Power Off:	Yes, after 30 secs.
Max/Min/Avgerage:	Yes
Memory:	40 points
Battery:	9V (included)
Accessories:	Contact adapter Ð master wheel, Cone adapter, Funnel adapter, 21" reflective tape

Tech Specs

Test Equipment General Attributes
Product Height	4.00 IN
Product Length	11.60 IN
Product Width	10.80 IN
HTS/Schedule B Number	9031808085
ECCN Number	EAR99
Country of Origin	China
Shipping Height	4.00 IN
Shipping Length	11.60 IN
Shipping Width	10.80 IN

1

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

owner

1.0

Inaccurate and inconsistant readings - instructions are vague at best - The help desk transfered me 6 times to fianlly get to tech support and he couldn't find the documentation to answer my questions. Does NOT work! I wouldn't give it one star

Darren on May 30, 2017
