Summit Technology / PowerSight eFX6000 - Flexible 6000 amp Probe

Name: Summit Technology / PowerSight eFX6000 - Flexible 6000 amp Probe
Brand: Summit Technology
SKU: Summit TechnologyeFX6000
Price: 375.25 USD
Availability: InStock

0 reviews | Model: Summit Technology eFX6000

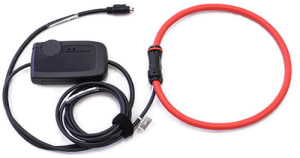

Summit Technology / PowerSight eFX6000-36 - 6000 Amps, 36" Long Wide Range Flexible Current Probe

Compare

Flexible 6000 amp Probe. 1 to 6000 amps AC. 3%+/-2LSD s. Inside diameter 7.5 inch (190mm). Circumference 24 inches (610mm). Dimensions flexible tube of 24" x .375" (0.5" max.)

Wide measurement range makes it the best single choice for a current probe: 1 - 6,000 amps AC
Flexible rope-type technology allows use in tight spaces where clamp-ons cannot fit
Thin enough (0.4") to thread between tight conductors and long enough (24") to wrap around multiple conductors and bus bars
Lighter weight than clamp-on style probes
36" long ropes are also available for wrapping large groups of cables
No batteries or power supply are required
Dual range to provide the best accuracy and resolution
Full auto-ranging with the PS3500. For the PS4500, the user is notified of the range on the meter's display, allowing the user to set the range directly from the analyzer's keypad
Probes are calibrated at the "9 o'clock position" to simulate the most realistic use in the field

View Product Details

List Price: $395.00

Your Price: $375.25

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Summit Technology eFX6000 Flexible 6000 amp Probe. 1 to 6000 amps AC. 3%+/-2LSD s. Inside ...	Summit Technology eFX6000-36 Flexible 6000 amp Probe. 1 to 6000 amps AC. 3% /-2LSD s. Insi ...
Price
In Stock
Type (Current Clamp Adaptors	Flexible/Rogowski	Flexible/Rogowski
Maximum Current AC	6000 A	6000 A
Maximum Conductor Size	24 IN	24 IN
Compare	Add to compare	Add to compare

Recommended for you

Summit Technology eFX6000 Accessories

Choose a Category

Line Splitters

for the Summit Technology eFX6000

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Summit Technology / PowerSight eFX6000 - Flexible 6000 amp Probe

Single best choice for all around AC current measurement
No external batteries are needed
For use with PS4550, PS4500, PS3500, PS2500 ONLY
Size : 24" Length

The EFX6000 is a flexible AC current clamp utilizing the Rogowski principle. It can be used to measure currents from 1 amp to 6000 Amps in 2 auto-ranges, over a wide frequency range to 10kHz. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas, around large conductors and where access to confined or tight spaces is a problem. It requires no batteries or external power supply.

Measurement Ranges:	1 - 150 amps AC (low range) 10 - 6,000 amps AC (high range)
Overall Accuracy:	+/-1% when coupling is hanging away from conductor as indicated in picture above +/- 2% for varying its position around the conductor
Resolution:	+/- 0.1 amps (in low range) +/- 0.5 amps (in high range)
Linearity:	+/- 0.2% from 10% to 100% of range
Fundamental Frequency Range:	22 - 440 Hz
Bandwidth:	10 - 10,000 Hz (-3db range)
Phase Shift:	Less than one degree over fundamental frequency range
Temperature:	0 - 50 °C operating range Humidity: 15% to 85% (non condensing)
Voltage Rating:	1000V CAT III, 600V CAT IV, Pollution Degree 2
Flexible Rope Sensor:	24" (610mm) long, nominal 7.25" (184mm) diameter for eFX6000 36" (914mm) long, nominal 10" (255mm) diameter for eFX6000-36 0.4" (10mm) sensor rope nominal diameter Probe Cable: 6 feet long (2 meters)
Standards:	ROHS and WEEE Compliant EN 61010-1:2001 EN 61010-031:2002 EN 61010-2-032:2002 IP65 (Ingress protection) EMC EN61326-2-2:2006
Power Supply:	none required (powered by the analyzer)
Compatibility:	Not compatible with PS4000, PS3000, PS250.

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	Flexible/Rogowski
Maximum Current AC	6000 A
Maximum Conductor Size	24 IN
Test Equipment General Attributes
Product Height	8.00 IN
Product Length	14.00 IN
Product Width	10.00 IN
Shipping Height	8.00 IN
Shipping Length	14.00 IN
Shipping Width	10.00 IN
