• Versatile: tests flooded lead acid, VRLA, NiCd, Li-ion, and NiMH batteries and strings
• Automatically measures and stores data within seconds
• Voltage testing range of 0–100 Vdc
• IEC 6101-1 CAT II 300V Safety Standard
• Built-in NiMH battery with a unit charging cord

Complete Battery Impedance Tester and Data Logger (Meets IEEE/NERC Standards)

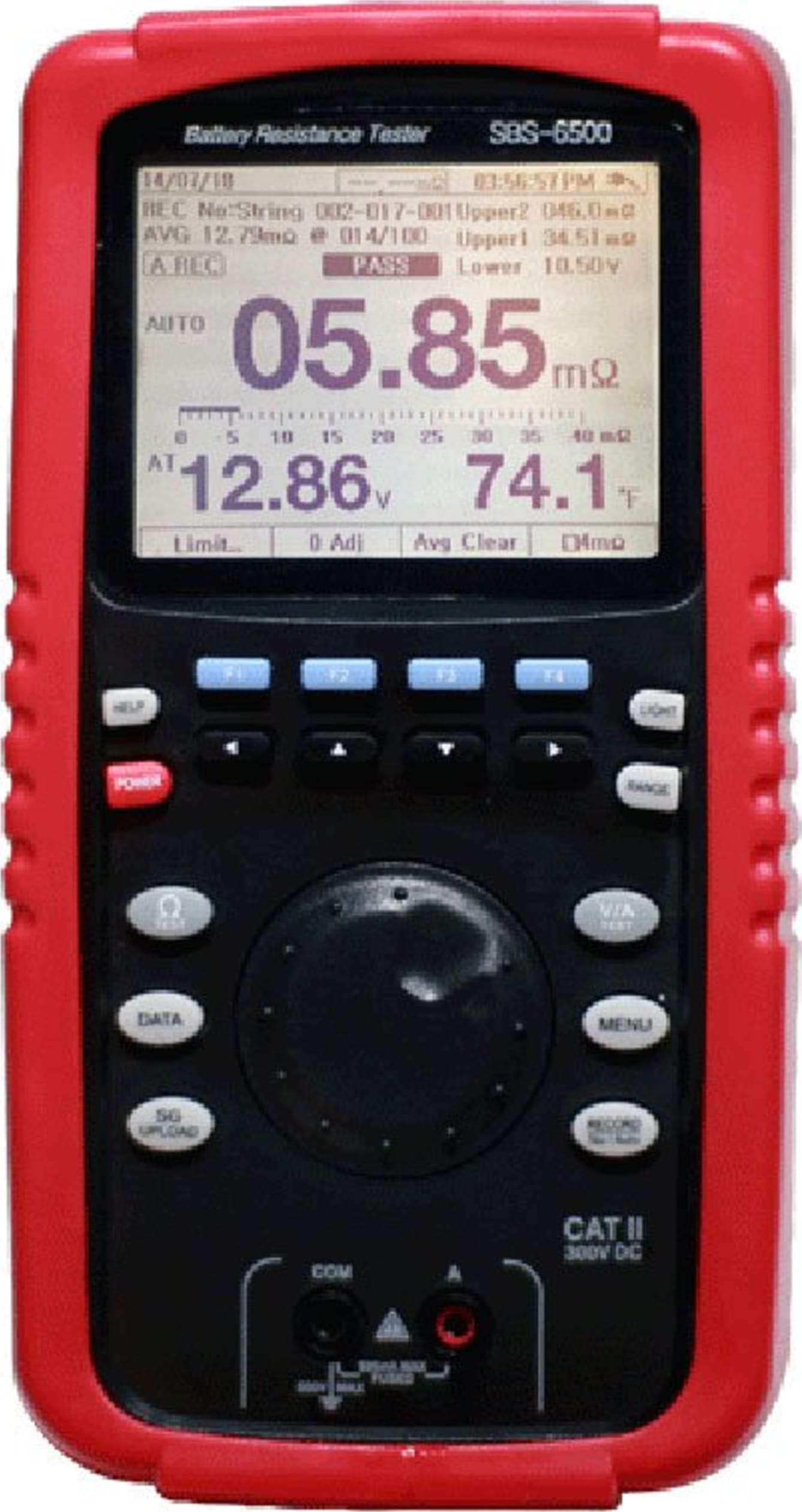

The SBS-6500 is a multipurpose impedance and voltage tester. Cell and inter-cell and terminal connector readings are taken within seconds using the included pin probes (or optional clamp probes). The SBS-6500 can be programmed with site names, battery details and pass/warning/fail alarm set points for ohmic measurements (pass/fail for voltage) without the high current requirements and float voltage drop necessary for internal resistance testing types. All data is retained in the meter’s internal memory for easy on-site access. With a computer and the included software, the SBS-6500 generates custom graphical reports for historical trending and comparisons.

The SBS-6500 pairs with our SBS-3510, SBS-2510 and SBS-2003 digital hydrometers to import specific gravity readings into the SBS-6500. With this data merge, the SBS-6500 will store and generate reports with voltage, ohmic, temperature and gravity readings.

Data Storage: 300 battery strings x 250 cells per string x 4 tests per year over a period of 25 years = 7.5 million records

The SBS-6500 replaced the discontinued GL-1000, IBEX-1000 and IBEX-Ultra.

• Quickly records and stores ohmic values, voltage and temperature of strings, cells and intercell connectors
• Instantly retests and recalls readings on-site for data trending and comparing
• Pin probe or clamp probe compatible
• User-friendly software and easy-to-navigate menu
• Convenient battery string and parameter set up via unit or software
• Organizes data by name and parameters for each battery string (up to 300 strings)
• Optional ability to download specific gravity readings wirelessly from SBS-2003 hydrometer
• Meets IEEE and NERC maintenance recommendations for stationary battery systems

• Tests and records impedance, voltage, and temperature readings of cells and intercell connectors
• On-screen pass/warning/fail indication during testing based on set parameters
• Stores and displays all historical data on the handheld unit
• Communicates with computer and software via USB port
• Generates and displays battery string’s test report and comparison data
