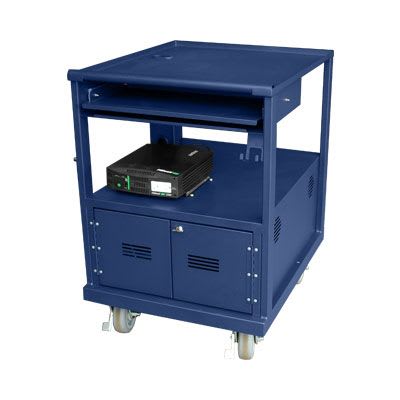

Storage Battery Systems PMC-L2B100L60A1000 - L2 Cart 100L Batteries with 60 Amp charger and 1000W Inverter

Name: Storage Battery Systems PMC-L2B100L60A1000 - L2 Cart 100L Batteries with 60 Amp charger and 1000W Inverter
Brand: Storage Battery Systems
SKU: SBSPMC-L2B100L60A1000
Price: 4985.00 USD
Availability: InStock

0 reviews | Model: Storage Battery Systems PMC-L2B100L60A1000

Compare

L2 Cart 100L Batteries with 60 Amp charger and 1000W Inverter

Cannot Ship Air

L2 Cart 100L Batteries with 60 Amp charger and 1000W Inverter
Rugged cart designed to hold computer, printer(s), scanner and more!
Dimensions: 32"L x 26"W x 38.5"H
Slide out keyboard
Bar code scanner holder
Integrated cable raceways
6" large industrial swivel/locking rubber caster wheels with option to upgrade to 8" pneumatic casters
ESD rated casters available upon request
Heavy duty 12ga powder coated steel
Standard color: Steel Blue RAL 5011 fine texture

View Product Details

List Price: $7,010.16

Your Price: $4,985.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Storage Battery Systems PMC-L2B100L60A1000 - L2 Cart 100L Batteries with 60 Amp charger and 1000W Inverter

The streamline design offers an optimal balance between size, weight and battery capacity. The heavy duty construction of the PMC-L2 battery powered mobile workstation is built to increase productivity in the tough and rugged environments of warehouse, logistics and distribution facilities. The mobile powered workstation is ideal for labeling, receiving, testing, fulfillment, inventory functions.

The slide out keyboard tray, bar code scanner holder and optional computer monitor mounting arm offer flexibility to maximize efficiency. Custom power configurations allow for up to 24 hours of run time.

Application Information

Power Features

Custom power configurations for up to 24 hours of run time
DC power is contained (not exposed) for safe operating
Long life, maintenance-free, non-hazardous VRLA battery/batteries
Battery status meter/fuel gauge
Smart power supply/battery charger with LED indicators
Industrial grade DC to AC power inverter
- Pure sine wave option available
Color coded SB safety connectors for quick and safe connect/disconnect and error proof component replacement

Lithium Battery Benefits and Features

Long battery life: An increase of 20% to 50% battery life in a single 12V 100 AH lithium battery compared to a 12V 100 AH sealed lead acid battery (higher current draw equates to greater increase)
Fast recharge: Powered mobile carts equipped with a lithium battery come standard with a 60 Amp charger that allows for a full battery charge in one hour and 40 minutes
Lighter weight: A 12V 100 AH lithium battery weighs 30 pounds compared to the currently used S-12V120 battery which weighs 70 pounds
Digital health monitor (fuel gauge) provides an accurate remaining battery life reading

BATTERY SPECIFICATIONS
Battery Type	Lithium	Lithium	Lead Acid
Part No.	RB100	RB200	S-12V120
Nominal Voltage	12.8V	12.8V	12V
Nominal Capacity	100 AH	200 AH	100 AH
Length	13 in.	20.5 in.	13 in.
Width	6.8 in.	10.5 in.	6.8 in.
Height	8.8 in.	9 in.	8.7 in.
Weight	29.8 lb.	61.1 lb.	69.5 lb.

Inverter Specifications
	PMC-PV700HF****	PMC-PSW1000	PMC-PSW2000
Continuous Output Power (Watts*)	700	1000	2000
Peak Output Power (Watts**)	1400	2000	3000
Input Voltage (VDC)	12V (10V–15V)	12V (10.5V–11V)	12V (10.5V–11V)
Output Voltage Frequency (VAC)	104–127VAC / 60Hz	104–127VAC / 60Hz	104–127VAC / 60Hz
Efficiency (approximately)	85–90%	85–90%	85–90%
Output Waveform	PWM Sine Wave	True Sine Wave	True Sine Wave
Low Battery Voltage Alarm (Volts)	10.5V	11V (audible)	11V (audible)
Low Battery Shutdown (Volts)	10V	10.5V	10.5V
AC Outlets	(3) NEMA 5–15R	(2) 8A max. / GFCI protected	(2) 8A max. / GFCI protected
USB Output Power	Not available	(1) 5VDC, 500mA	(1) 5VDC, 500mA
Standby Battery Draw***	>800mA	>800mA	>800mA
* Maximum continuous output power for five minutes. Only available when battery is properly charged. Peak output power is instantaneous. Maximum power only available when battery is properly charged. * When inverter is on but no power is being supplied to a load. **** Inverter is not compatible with lithium batteries.

Charger Specifications
	PMC-DL1220*	PMC-DL1240*	PMC-DL1260**	PMC-DL12100**
Output Voltage (VDC)	12V nominal	12V nominal	12V nominal	12V nominal
Output Current (Amps)	20A	40A	60A	100A
Input Voltage (VAC)	90–120VAC	90–120VAC	90–120VAC	90–120VAC
Efficiency (approximately)	85–90%	85–90%	>95%	>95%
Circuit Protection (AC fuse rating)	8A 250V	15A 250V	Not replaceable	Not replaceable
* Charger is not compatible with lithium batteries. ** Charger is not compatible with lead acid batteries.
