Storage Battery Systems MODULE-2/6/12-15 - Wireless Module Kit

Name: Storage Battery Systems MODULE-2/6/12-15 - Wireless Module Kit
Brand: Storage Battery Systems
SKU: SBSMODULE-2/6/12-15
Price: 1995.00 USD
Availability: InStock

0 reviews | Model: Storage Battery Systems MODULE-2/6/12-15

Compare

Wireless module kit - qty.15 (+2 spare) -2/6/12 + Case

Wireless module kit - qty.15 (+2 spare) SBS-2/6/12 + Case
Advanced technology that wirelessly communicates readings between modules and load bank
Wide range for 1.2/2V or 2/6/12V battery applications
One module supports voltage measurements for up to 4 cells
Supports monitoring up to 120 cells/batteries in a single test
Real-time cell voltage measurement during discharge test

View Product Details

Your Price: $1,995.00

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Storage Battery Systems MODULE-2/6/12-15 Wireless module kit - qty.15 (+2 spare) -2/6/12 + ...	Storage Battery Systems MODULE-1.2/2-30 Wireless module kit - qty.30 (+2 spare) -1.2/2 + C ...	Storage Battery Systems MODULE-2/6/12-30 Wireless module kit - qty.30 (+2 spare) -2/6/12 + ...	Storage Battery Systems MODULE-1.2/2-25 Wireless module kit - qty.25 (+2 spare) -1.2/2 + C ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Storage Battery Systems MODULE-2/6/12-15 - Wireless Module Kit

Wireless module kit - qty.15 (+2 spare) SBS-2/6/12 + Case
Advanced technology that wirelessly communicates readings between modules and load bank
Wide range for 1.2/2V or 2/6/12V battery applications

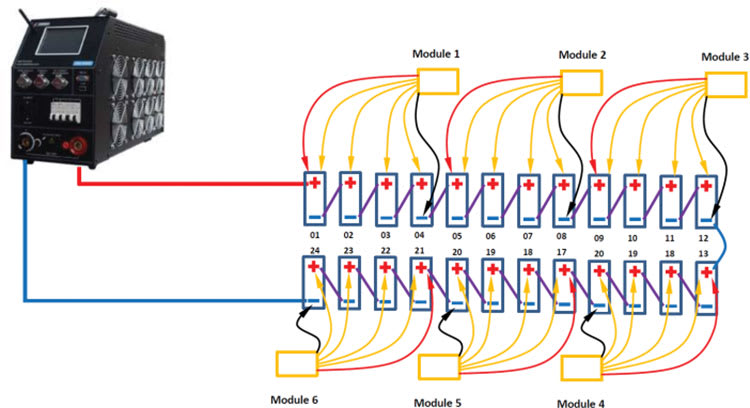

During capacity testing, the wireless modules measure each cell’s voltage and wirelessly send the data back to the paired load bank. All voltage values are displayed on the load bank’s LCD screen and listed in the test report, which is created with the computer software. Wireless modules make it easy to locate failed or problematic cells in the battery bank.

General Specifications
Type	SBS-2/6/12	SBS-1.2/2
Support Cell Voltage	2/6/12V	1.2/2V

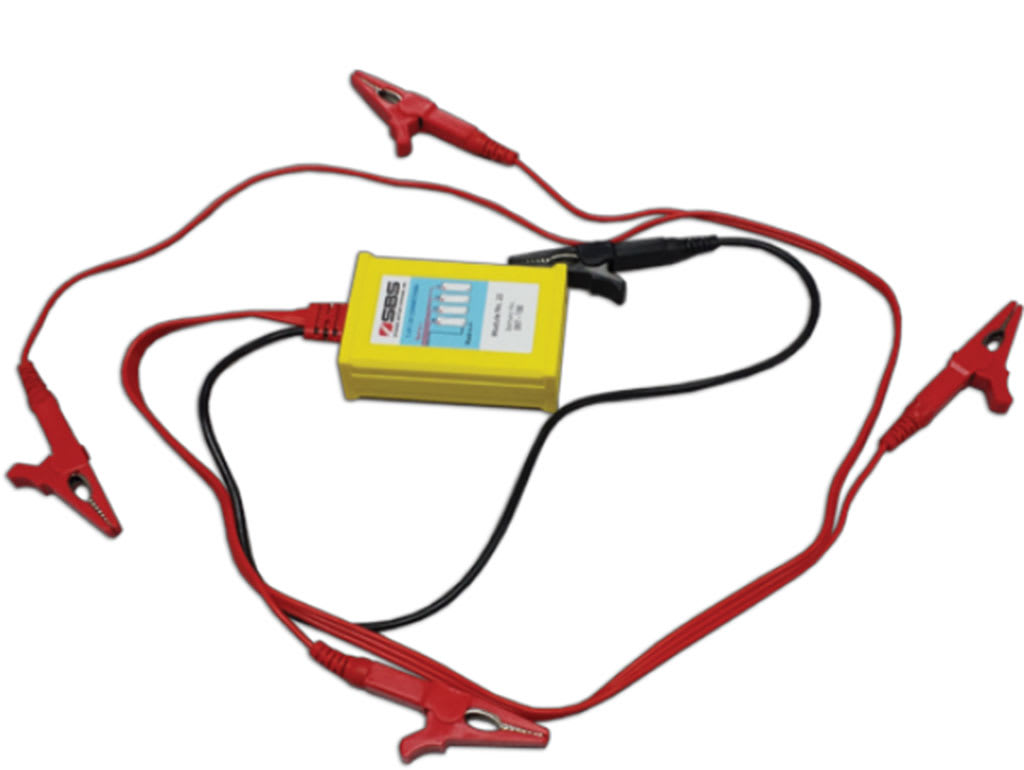

Wires	Six (1 Red, 1 Black, 4 Yellow)	Five (4 Red, 1 Black)
Power Supply Wire	Red & Black Operating Voltage: 5–24 V Max. Voltage: <400V	Red No. 1 & Black Operating Voltage: 3.5–20 V Max. Voltage: <60V
Measure Voltage Range	0–16 V for each channel	0–5 V for each channel
Accuracy and Resolution	≤±0.5%, 0.01 V	≤±0.5%, 0.01 V
Dimensions / Weight	3.9 x 2.6 x 1.3 in. (100 x 65 x 32 mm) / 0.66 lb. (0.3 kg)
Operation Temp. / Storage Temp. / Humidity	23° to 122° F (-5° to 50° C) / -40° to 158° F (-40° to 70° C) / 5% – 95% RH
