Sonel CMP-200-OB Clamp Meters - Type: Current Leakage Clamp, True RMS: Yes, Maximum Current AC: 200 A

Name: Sonel CMP-200-OB Clamp Meters - Type: Current Leakage Clamp, True RMS: Yes, Maximum Current AC: 200 A
Brand: Sonel
SKU: SonelCMP-200-OB
Price: 75.05 USD
Availability: InStock

0 reviews | Catalog: WMXXCMP200 | UPC: 5907624021396 | Model: Sonel CMP-200-OB

Compare

Clamp-on current meter - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.
Display LCD 3 1/2 digits (max 1999)
White LED backlight
Internal diameter clamp approx. 30 mm (1.2")
DATA HOLD function, for holding measured values
MAX function
AUTO-OFF function
Double molded casing

View Product Details

List Price: $79.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Sonel CMP-200-OB

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

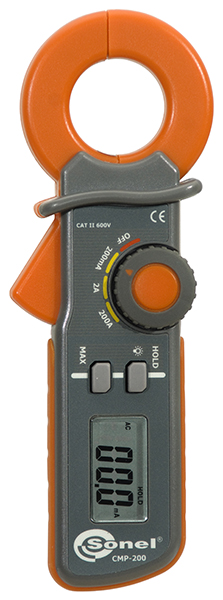

Sonel CMP-200 Digital Clamp-on AC Leakage Current Meter

AC current measurement up to 200 A

High resolution (0.1 mA)
Three measuring ranges: 200 mA, 2 A, 200 A

The CMP-200 digital clamp meter has been designed for clamp measurements of AC leakage current.

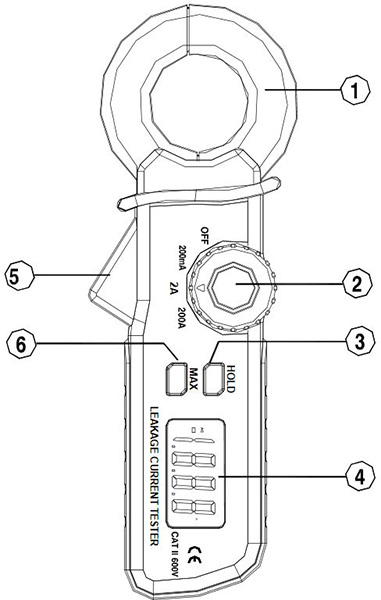

Functional description

Current clamp
Rotational selector
HOLD button
LCD display
Clamp trigger
Data MAX hold function

Electric security
Type of insulation	double, according to EN 61010 - 1 and IEC 61557
Measurement category	CAT II 600 V acc. to EN 61010 - 1:2004
Protection class acc. to EN 60529	IP40
Other technical data
Power supply	1.5 V AAA battery (2 pcs.)
Over range indication	0L displayed
Sampling rate	2 times per second
Display	1999 counts LCD, 3½ digits
Dimensions	182 x 61 x 34 mm
Weight (including batteries)	225 g
Auto power OFF	15 min.
Accordance with following standards	EN 61010 - 1:2004, EN 61010 - 2 - 032
Quality standard	ISO 9001
Rated operational conditions
Operating temperature and humidity	0...+30°C (max 90%), 30...40°C (max 75%), 40...50°C (max 45%)
Storage temperature	-25...+60°C max <90%
Operating altitude	max 3000 m

AC current measurement
Range	Resolution	Accuracy
199,9 mA	0,1 mA	±(5% m.v + 8 dgt)
1,999 A	0,001 A	±(5% m.v. + 10 dgt)
199,9 A	0,1 A	±(2,5% m.v. + 10 dgt)
„m.v.”- measured value

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	200 A
Maximum Conductor Size	30 MM (1.18 IN)
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Both
In-Rush Current	No
General Attributes
Warranty	3 YEARS
Product Weight	225 GRAMS (0.496 LBS)
Shipping Weight	0.3 KILOS (0.661 LBS)
Product Height	182 MM (7.17 IN)
Product Length	61 MM (2.40 IN)
Product Width	34 MM (1.34 IN)
Country of Origin	China
Test Equipment General Attributes
Safety Approval	CE, RoHS
Storage	Internal Memory
IP Rating	IP40
ECCN Number	EAR99
Battery Type	AAA
Power Supply Voltage	Battery Powered
