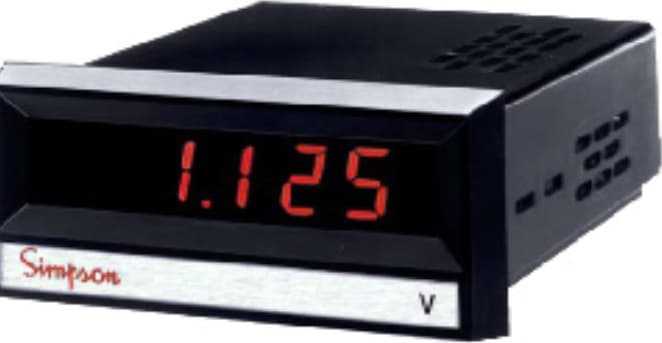

Simpson 24502 DC Voltage Digital Panel Meter

Name: Simpson 24502 DC Voltage Digital Panel Meter
Brand: Simpson
SKU: Simpson24502
Price: 283.51 USD
Availability: InStock

0 reviews | Catalog: 24502 | Model: Simpson 24502

Compare

2865 0-20 DCV, 120 VAC, RED LED

Four Voltage Ranges: 200mV, 2V, 20V, 200V
Input Edge Connector
3-1/2 digit, 0.56" Red LED Display
Jumper-Selectable Decimal Point
Model 2865 Requires 120 VAC Power Supply
Model 2866 Requires 5 VDC Power Supply
Additional Rear Terminal Connector Available
Optional “U” Shaped Mounting Bracket

View Product Details

List Price: $333.55

Your Price: $283.51

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Simpson 24502 2865 0-20 DCV, 120 VAC, RED LED	Simpson 24501 2865 0-2 DCV, 120 VAC, RED LED	Simpson 24503 2865 0-200 DCV, 120 VAC, RED LED	Simpson 24500 2865 0-200 DCMV, 120 VAC, RED LED
Price
In Stock
Size Rectangular	1/8 DIN	1/8 DIN	1/8 DIN	1/8 DIN
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Simpson’s 2865 and 2866 Series meters combine high accuracy with high reliability. Models 2865 and 2866 have a red LED display. Model 2865 requires a 120 VAC input at 50-400Hz, and model 2866 requires a 5 VDC input at 200mA. The large 3-1/2-digit display (0.56" high) is easily read from a distance of about 25 feet. Panel cutout adapters are available for 1/8 DIN panel cutouts. In addition, a large “U” shaped mounting bracket is available for applications where the panel strength is unknown or weak. Optional Display Hold can be activated from the rear connector, and activated with a switch (not supplied).

DISPLAY

Type

7-segment, red LED

Height

0.56" (14.2mm)

Decimal point

Fixed with range

Overrange indication

All digits blank except "1" above 1999 counts

POWER REQUIREMENTS

AC Voltages

120 V, ±10%, 50Hz to 400Hz, 3VA

Rated Circuit to Ground Voltage

250VDC (Model 2865) or
-4.06 to +4.5VDC (Model 2866)

ACCURACY @ 23ºC, ±2ºC

±(1.0% of input +5 counts) 45Hz to 1KHz

ENVIRONMENTAL

Operating Temperature

0 to 55°C

Storage Temperature

-40 to 60 °C

Relative Humidity

0 to 85%, non-condensing

Temp. Coefficient

±(0.1% of input) per ºC

Warmup time

15 minutes

ANALOG TO DIGITAL CONVERSION

Technique

Dual slope

Rate

2.5 samples/second-nominal

MECHANICAL

Bezel

1.93" x 3.9" (49mm x 99mm)

Depth

4.72" (120mm)

Panel cutout

1.68" x 3.622" (42.72mm x 92mm)

Weight

12.5oz (354.3g)

Input

Range	Resolution	Input Resistance
200mV	100µV	100M
2V	1µV	100M
20V	10µV	100M
200V	1µV	100M

Tech Specs

Temperature / PID Controllers
Size Rectangular	1/8 DIN
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Voltage
Size-Face Width	Other
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
