Siglent SDG805 DDS Function Signal Arbitrary Waveform Generator 5MHz

Name: Siglent SDG805 DDS Function Signal Arbitrary Waveform Generator 5MHz
Brand: Siglent
SKU: SiglentSDG805
Price: 248.00 USD
Availability: InStock
Rating: 4.86 (7 reviews)

5 (7 Reviews) | Model: Siglent SDG805

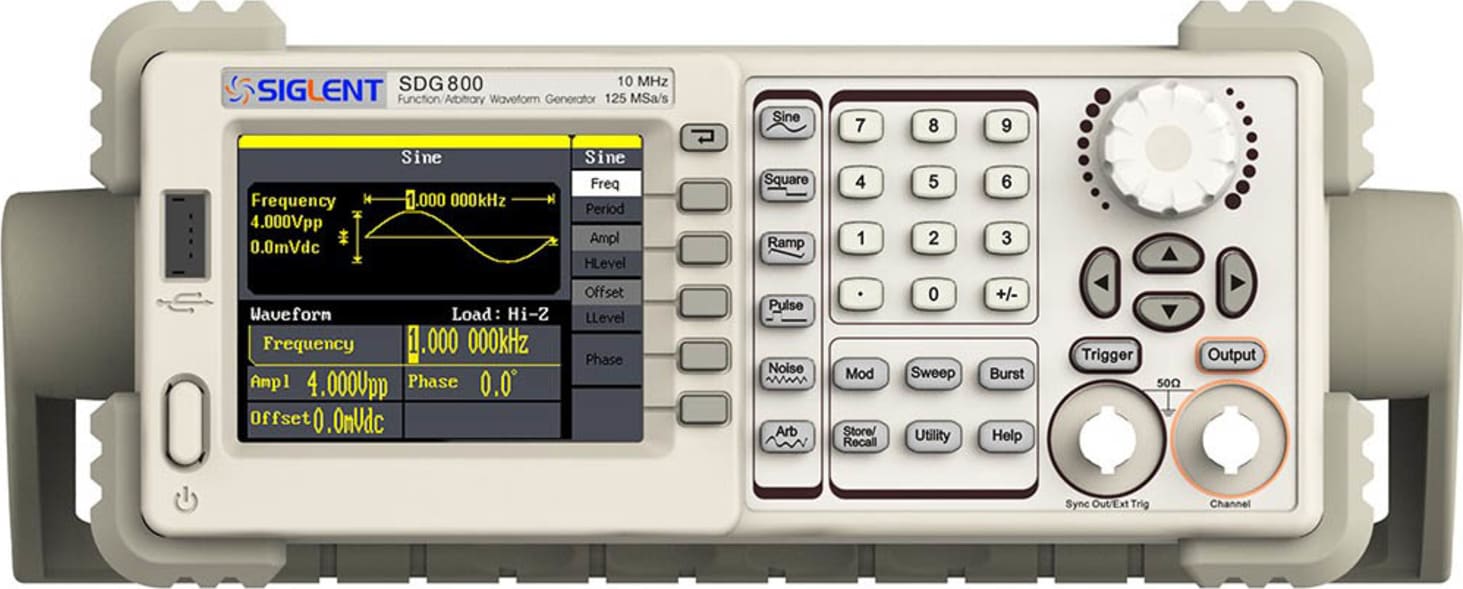

Siglent SDG800 series DDS Function Signal Arbitrary Waveform Generator

Compare

5MHz; 1 channel; 125MSa/s; wave length: 16Kpts; function/arbitrary waveform output amplitude:4mV 20Vpp (high impedance); modulation function(AM,DSB-AM,FM,PM,ASK,FSK,PWM,Sweep,Burst),EasyPulse technology

DDS technology, Single-channel output
125MSa/s sample rate, 14bit vertical resolution.
5 types of standard output waveform, built-in 46 arbitrary waveforms(include DC)
Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
Abundant input/output: waveform output, Synchronous signal output, , external trigger input.
Standard interfaces: USB Device, USB Host.
Supplied with powerful arbitrary editing software
Support remote control

Application fields:

Analog sensor
Simulation environment signals
Circuit function test
IC test
Researching and training

Standard Accessories:

A Quick Start
A Certification
An CD(including EasyWave computer software system)
A Power Cord that fits the standard of destination country
A USB Cable

View Product Details

List Price: $248.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits
Function Generator / Frequency Counter Kits

for the Siglent SDG805

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Catalog: CT4036

(8)

In Stock!

Add to Cart

Siglent SDG805 DDS Function Signal Arbitrary Waveform Generator 5MHz

The SDG800 series function/arbitrary waveform generator family output frequencies up to 5MHz (pulse), 10MHz (square), 30MHz (sine) and have a sampling rate of 125MSa/s. They use the SIGLENT EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.

Reasonable price & outstanding performance
SDG800 series Function/Arbitrary Waveform Generator is a new family member of SIGLENT with friendly design: 3.5 inch TFT-LCD display; Built-in Chinese/English language; Online help function; Support U dick and internal storage, facilitative files management.

Edit arbitrary waveform
Enables edition of 14-bit 16kpts arbitrary output waveforms, Arbitrary editing software EasyWave provides 9 standard waveforms: Sine, Square, Ramp, Pulse, ExRise, ExpFall, Sinc, Noise and DC, which meets all engineers’ basic needs; In addition, it provides plenty of ways of manual drawing, point-to-point line drawing and arbitrary point drawing. It facilitates to create complex waveforms; Multi-file screen management helps users to edit multiple-waveform simultaneously. It provides 10 Storage in non-volatile RAM. You can edit and store more waveforms by EasyWave.

Arbitrary waveform output
Built-in 46 arbitrary waveforms(include DC), including math, engineering and other commonly-used waveforms.

Complete set of modulation functions, sweep output, burst output:

Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, the modulation waveform can be observed directly, which it is suitable for education and training;
Sweep output: change output frequency from starting frequency to ending one within sweeping time, Sweeping time range: 1ms~500s. The carrier can be Sine, Square, Triangle and Arbitrary waveforms.
Burst output: It can periodically generate pulse sequence. Internal counter and external control signal are available to control burst output.

Design Features:

SDG800 Series support powerful PC editing software EasyWave, which can output arbitrary waveform featured 14bit vertical resolution and 16Kpts wave length. EasyWave provides 9 standard waveforms: Sine, Square, Ramp, Pulse, ExRise, ExpFall, Sinc, Noise and DC, which meet all engineers’ basic needs. In addition, it provides a variety of draw modes like manual drawing, straightline drawing(including horizontal straightline, vertical straightline, point-to-point straightline), coordinate drawing and equation drawing, making it easy to create complex waveforms. Multiple Document Interface management makes simultaneous multiple-waveform editing. SDG800 Series provides 10 nonvolatile storage spaces for arbitrary waveforms, and you can also edit and store more waveforms through EasyWave software.

Adjustment Handle
When using the instrument, SDG800 permits users to adjust the handle to a needed position which make it easier to operate and observe.

User Interface

SDG800 can only display one channel’s parameters and waveform. The picture below shows the interface when choosing sine waveform. The interface will have some difference when current function is different.

Current Function
Display current function name. For example: “sine” shows that sine waveform function is being chosen.
Waveform Display Area
It shows each channel’s current waveform.
Frequency
It shows each channel’s current waveform’s frequency. After press corresponding Freq menu, use number keys or knob to change the parameter value.
Amplitude
It shows each channel’s current waveform’s amplitude. After press corresponding Ampl menu, use number keys or knob to change the parameter value.
Offset
It shows each channel’s current waveform’s DC offset. After press corresponding Offset menu, use number keys or knob to change the parameter value.
Phase
It shows each channel’s current waveform’s phase value. After press corresponding Phase menu, use number keys or knob to change the parameter value.
Load
It shows each channel’s load scheme. High Resistance: display “Hi-Z” Load: display default “50Ω”
Menu
It shows the corresponding operation menu of the current function which is being chosen. For example: the picture above shows the function menu of “Sine” waveform.

Model	SDG805	SDG810	SDG830
Max. output frequency	5 MHz	10 MHz	30 MHz
Output channels	1
Sample rate	125MSa/s
Arbitrary waveform length	16kpts
Frequency resolution	1µHz
vertical resolution	14bits
Waveform	Sine, Square, Ramp, Pulse, Gaussian Noise. 46 built-in arbitrary waveforms(include DC)
Modulation	AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
Standard interface	USB Host & USB Device
Dimension	W x H x D=229mm x 105mm x 281mm
Frequency Specification
Waveform	Sine, Square, Ramp, Pulse, Noise, Arbitrary
Sine	1µHz ~ 5MHz	1µHz ~ 10MHz	1µHz ~ 30MHz
Square	1µHz ~ 5MHz	1µHz ~ 10MHz	1µHz ~ 10MHz
Pulse	500µHz ~ 5MHz
Ramp/Triangular	1µHz ~ 300kHz
Gaussian white noise	>5MHz (-3dB)	>10MHz (-3dB)	>30MHz (-3dB)
Arbitrary	1µHz ~ 5MHz
Resolution	1µHz
Accuracy	Within 90days ±50ppm within 1 year ±100ppm
Temperature coefficient	<5ppm/°C
Sine Wave
Harmonic Distortion	DC~1MHz <-60dBc 1MHz~10MHz <-55dBc 10MHz~30MHz <-50dBc
Total harmonic waveform distortion	DC~20kHz,1Vpp<0.2%
Spurious signal(non-harmonic)	DC~1MHz<-70dBc 1MHz~10MHz<-60dBc 10MHz~30MHz<-55dBc
Phase noise	10kHz Offset,–108dBc/Hz(typical value)
Square Wave
Rise/fall time	<24ns(10% ~ 90%)
Overshoot	<5%(typical,1kHz,1Vpp)
Duty Cycle	20%~80%
Asymmetric(50% Duty Cycle)	1% of period+20ns(typical,1kHz,1Vpp)
Jitter	500ps + 0.001% of period
Ramp/Triangle Wave
Linearity	<0.1% of Vpp(typical,1kHz,1Vpp,100% symmetric)
Symmetry	0%~100%
Pulse Wave
Pulse width	16ns, Min. 1ns resolution
Rise/Fall time (10% ~ 90%,typical)	20ns~1.6ks
Duty Cycle	0.1%Resolution
Overshoot	<5%
Jitter(pk-pk)	500ps + 0.001% of period
Arbitrary Wave
Waveform length	16k points
Vertical resolution	14bits
Sample rate	125MSa/s
Min. Rise/Fall time	8ns(typical)
Jitter(pk-pk)	8ns(typical)
Storage in non-volatile RAM memory (10 in total)	10 waveforms
Output Specification
Amplitude	2mVpp~10Vpp(50Ω,≤10MHz) 2mVpp~5Vpp(50Ω,>10MHz) 4mVpp ~ 20 Vpp（High impedance, <10MHz） 4mVpp ~ 10Vpp（High impedance,>10MHz）
Vertical accuracy (100 kHz sine)	±(1mVpp +0.3dB of setting value)
Amplitude flatness (compared to 100 kHz sine,5Vpp)	±0.3 dB
Impedance	50Ω
Protection	short-circuit protection
DC Offset
Range(DC)	±5V(50Ω) ±10V(High-Z)
Offset accuracy	±(\|setting offset value\|*1%+3mV)
AM Modulation
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Modulation depth	0% ~ 120%
DSB-AM Modulation
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Modulation depth	0% ~ 120%
FM Modulation
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary(2mHz~20kHz)
Frequency deviation	0 ~0.5*bandwidth 1mHz resolution
PM Modulation
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary (2mHz~20kHz)
Phase Deviation	0~360° ,0.1°Resolution
FSK Modulation
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform	50% duty-cycle square waveform(2mHz~50kHz)
ASK Modulation
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Modulation wavefor	m 50%duty-cycle square waveform(2mHz~50kHz)
PWM Modulation
Frequency	500µHz~20kHz
Modulation waveform	Sine, Square, Ramp, Arbitrary(except DC)
Sweep
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Type	linear/logarithmic
Direction	Up/down
Sweep time	1ms~500s
Trigger source	Manual, external, internal
Burst
Waveform	Sine, Square, Ramp, Pulse, Arbitrary(except DC)
Type	Count(1~50,000 periods),infinite, Gated
Start/Stop phrase	0°~360°
Internal period	1µs~500s
Gated source	External trigger
Trigger source	Manual, External or Internal
Trigger Input
Input Level	TTL compatible
Slope	Up or down
Pulse width	>100ns
Input impedance	>5kΩ,DC coupling
SYNC Output
Voltage level	TTL compatible
Pulse width	>50ns
Output impedance	50Ω(typical)
Max. frequency	2MHz

GENERAL SPECIFICATION
Display
Display type	3.5inch’TFT-LCD
Resolution	320×RGB×240
Color depth	24bit
Contrast Ratio	350:1(typical)
Luminance	300cd/m 2 (typical)
Power
Voltage	100~240 VAC RMS, 45~66Hz,CATII 100~127 VAC RMS, 45~440Hz,CATII
Consumption	<30W
Fuse	1.25A,250V
Environment
Temperature	Operation:0°C~40°C Storage:-20°C~60°C
Humidity range	Below +35℃:≤90% relative humidity +35℃~+40℃:≤60% relative humidity
Altitude	Operation: below 3,000 meters Storage: below 15,000 meters
Others
Dimension	Width:229mm Height:105mm Depth:281mm
Weight	N.W: 2.6Kg G.W: 3.4Kg
IP protection
IP2X
Calibration Cycle
1year

Attention:
All these specifications apply to the SDG800 Series Function/Arbitrary Waveform Generator unless otherwise explanation. To satisfy these specifications, the following conditions must be met first:

The instrument has been operating continuously for more than 30 minutes within specified operating temperature range (18ºC~28°C.
The temperature variation does not exceed 5℃.

Note: all specifications are guaranteed unless where noted ‘typical’.

Tech Specs

Generators / Counters/Function Generator Template
Channels	1
Frequency Maximum	5 MHz
Frequency Minimum	1 uHz (0.000001 Hz)
Functions	Burst, CMOS, Noise, Other, Pulse, Ramp, Sine, Square, Sweep, Triangle, TTL
Max Amplitude Vpp @ 50 ohms	10 V
Arbitrary	Yes
Sample Rate	125 MSa/S
Screen Type	LCD, TFT
Color Screen	Yes
Digital Amplitude Resolution	14 Bits
Triggering	Yes Triggering External trigger
Counter that displays frequency on screen.	Yes
Modulation Types	AM, FM, FSK, PWM
Graphical Display	Yes
Memory	16 KP [kilopoints] (16 kB)
Direct Digital Synthesis (DDS)	Yes
PC Based	No
Test Equipment General Attributes
Unique Features	* Utilizes EasyPulse technology * Includes EasyWave arbitrary waveform editing software.
Warranty	3 YEARS
Warranty Details	Service center in Cleveland, OH
Safety Approval	CE
Interfaces I/O	GPIB, USB Host, USB
Storage	Compact Flash, Internal Memory
Product Weight	5 LBS
Product Height	105 MM (4.13 IN)
Product Length	281 MM (11.06 IN)
Product Width	229 MM (9.02 IN)
Shipping Weight	7.5 LBS
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
Shipping Height	195 IN
Shipping Length	369 IN
Shipping Width	330 IN

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 7 reviews

Most Helpful First | Newest First

Recommend to a Friend

Well done

5.0

I purchased this to replace a malfunctioning unit of a different brand. Not only was it cheaper, the functions were easy and did exactly what I needed. Great for prototyping analog systems.

Phil on Nov 28, 2015

Recommend to a Friend

good stuff

4.0

happy with the purchase. Tequipement team was very professionnal and the generator is working as described. the only downside is that I'm trying to make the trigger work and I can't and the documentation is poor about this specific feature. otherwise that would be a 5 stars

Verified Purchase Christophe Guittard on Oct 04, 2015

Recommend to a Friend

Overkill for my needs...

5.0

I was in the market for an audio signal generator. The better Sig-Gen's were nearly the cost of this AWG, so I bit.

It does so much more than my limited knowledge/experience can comprehend.

I can say that the functions test precisely with my new Rigol DS1054Z DSO.

Verified Purchase Allen Gordon on May 26, 2015

Recommend to a Friend

Solid

5.0

Great instrument! Excellent build quality -- nothing feels cheap on this unit. Nice bright color LCD display and for the most part the menus and user interface are pretty intuitive. Fanless and silent yet runs cool.

This only costs a bit more than the 1970's era HP analog signal generators on ebay -- and those boat anchors can't do all the modulation, burst, and arbitrary functions that the SDG80x units can.

If you only need a single output signal generator it's hard to beat the SDG805 at this price point.

Verified Purchase Jamieson on May 14, 2015

Recommend to a Friend

Solid units for the bench or field

5.0

We have the SDG805 (5MHz) and the SDG830 (30MHz). They are both units and pack a lot of bang for the buck.

The LCD display is sharp and easy to read. I have even used it in direct sunlight outside without any difficulty.

The interface is simple. We appreciate that because these instruments aren't used daily. So not having to read the manual or hunt for some parameter makes things easier.

One feature I especially like is the programmable DC output. We have written software using the communications interface that generates square waves to test a product of ours. That product also has analog inputs for measuring DC. Using the DC output of the Siglent, we can test both inputs to our product with only one instrument. Very slick!

We have not used the ARB functionality, so I can't comment on it.

We will be buying more as our needs arise. I just wish that Siglent made a nice modern universal counter too.

James Jarvis on Apr 17, 2015

Recommend to a Friend

Great bang for the buck

5.0

I've been looking for a decent value in a Function Generator, looking for something to match the ones in the school labs, and this seems to be it. I've barely scratched the surface of it so far, but it seems fairly intuitive to use, does modulation and sweep, and the high-z mode seems really handy. No complaints.

Verified Purchase Joseph P. on Jan 22, 2015

Recommend to a Friend

Easy to configure

5.0

I'm only a hobbyist/occasional user but I find this function generator very easy to use. I have so far mostly used it for some simple experiments and debugging of basic circuits but it just works. I haven't experienced any issues with it.

svef on Jan 06, 2015

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Siglent SDG805 DDS Function Signal Arbitrary Waveform Generator 5MHz

Recommended for you

Accessories

for the Siglent SDG805

Cal Test CT4103 Universal Adapter Kit

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Tech Specs

Generators / Counters/Function Generator Template

Test Equipment General Attributes

5

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
