A Comprehensive Range of Mains and Battery Powered Digital Micro Ohmmeters with Temperature

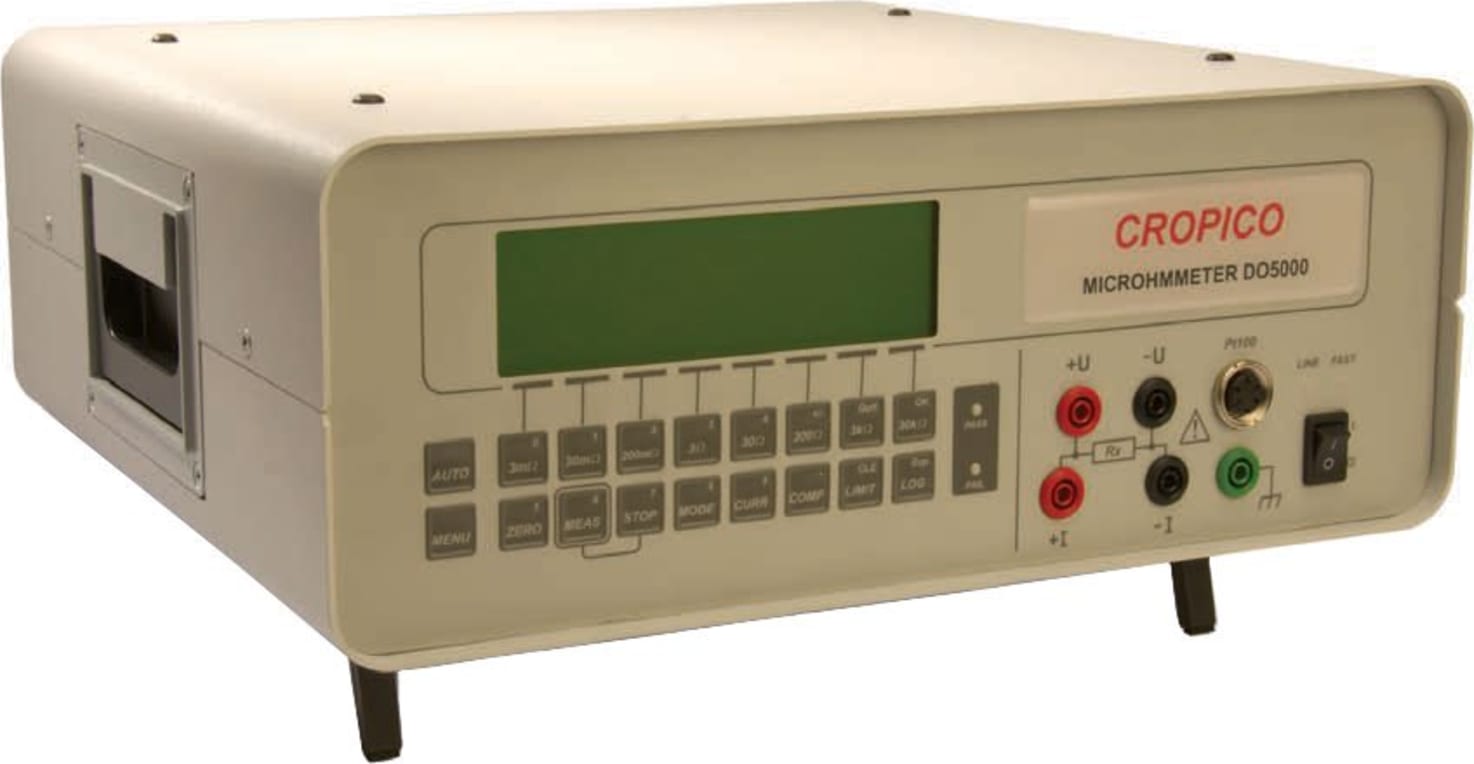

The DO5000 series of digital micro ohmmeters offer flexibility of measurement with high accuracy and exceptional functionality. The DO500 series encompass all the features required in an ohmmeter in one practical instrument.
This series of instruments have programmable measuring current in 100 steps, ensuring that we have a model in the range suitable for your application.
Automatic temperature compensation references the measurement to 20 o C and Hi / Lo limits permits sorting of components with the minimum of fuss. The DO5000 series all have the ability to take an external PRT 100 sensor, this is easily plugged into the socket on the front of the unit.
All these functions are available as standard as well as a data logging function which stores up to 4000 date and time stamped readings. Statistical analysis of these values allows you to display the Max / Min / Average values as well as the peak to peak and standard deviation.
The range of DO5000 instruments is ideally suited for laboratory testing of samples, production line testing, and with the addition of the IEEE-48 or PLC interfaces, the DO5000 series may be remotely controlled and integrated into an automated testing system.
When the units are used in the fast measuring mode they can easily do 50 measurements per second.
These features are available on all of the models in the range. The DO5001 only differs from the DO5000 in that it can be mains and battery powered. The DO5002 has a lower current capability than both of the other models.
