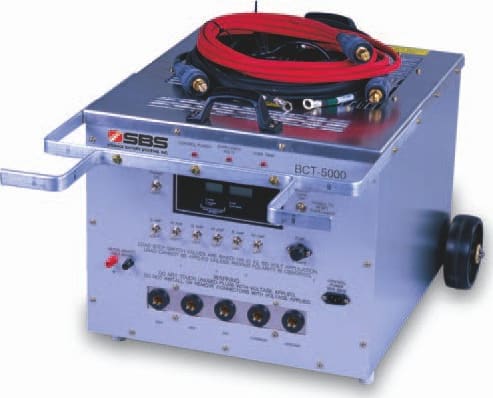

150 Amp DC Resistive Load Bank (24, 48 & 120Vdc)

The only way to know your industrial batteries will perform to specification is to test them regularly. SBS’s battery capacity testers enable you to test your wet or sealed batteries in a variety of ways and at three voltages. Load bank test 24V, 48V, or 120V DC systems with currents up to 171 amps, AC input:  120VAC, 60hz.  A built-in digital meter lets you read volts, amps, amp-hours, and elapsed time without having to hook up a separate meter. The display is accurate to 1% of full scale at the rated voltages. The unit also offers continuous operation, so there’s no cool down needed after or between tests. Temperature compensation and over-voltage/over-temperature protection are included. Use the master load control switch to instantly apply or remove loads. UVR safety low voltage disconnects (LVD).  Unit comes with 5M QD test leads suitable for most applications.

Built-in Protection: The over-voltage and over-temperature protection components coupled with load elements extend instrument life and system reliability by operating at less than 50% of the maximum temperature rating. Additionally, the automatic under-voltage trip keeps cells from being damaged during testing.
