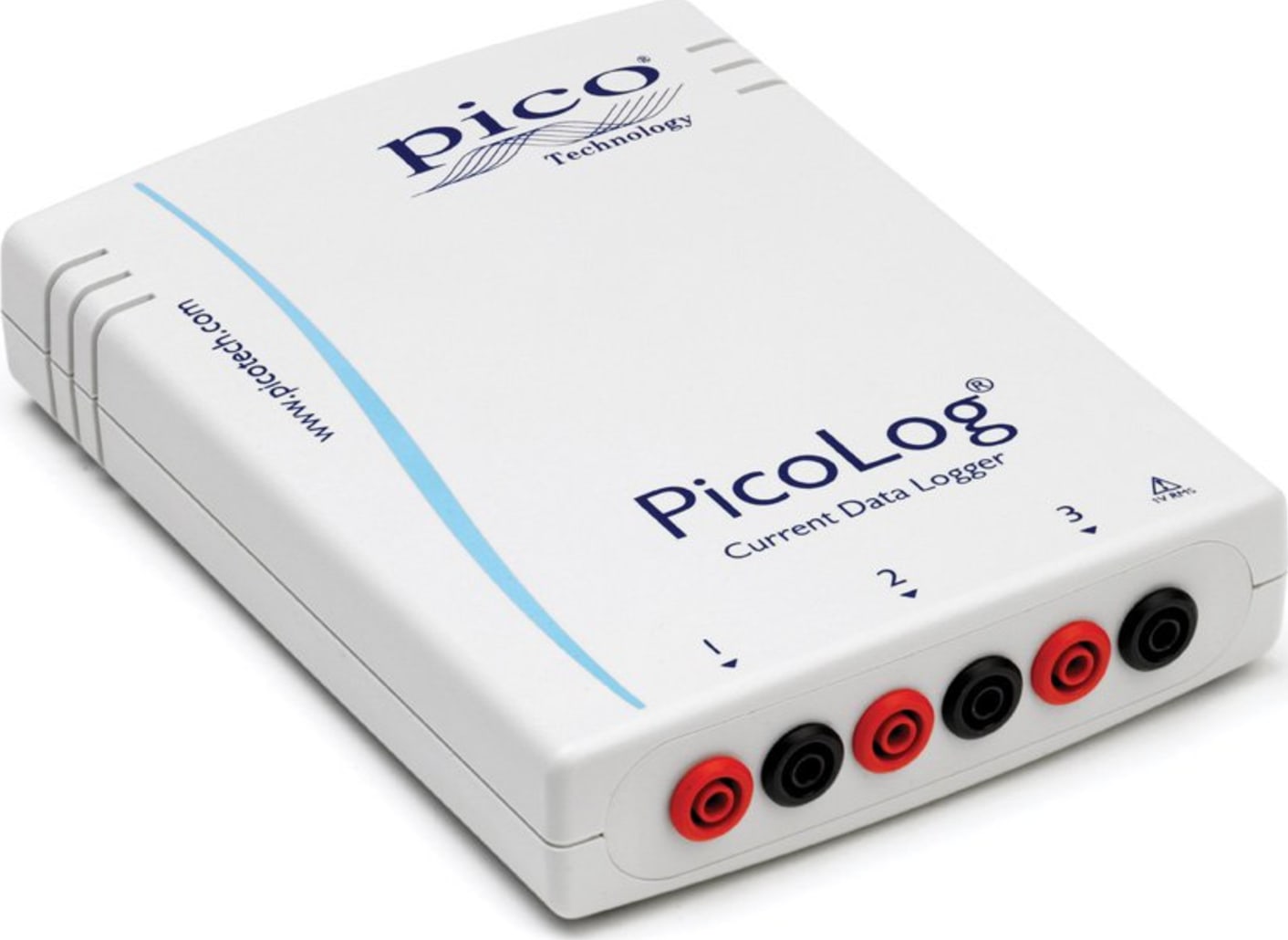

| PicoLog CM3 current data logger specifications |
| Number of channels |
3 |
| Range (voltage input) |
0 to 1 V AC RMS |
Accuracy (voltage input)
< 200 mV RMS
< 1 V RMS |
±1%
±2.5% |
| RMS noise |
60 µV |
| Resolution |
24 bit |
| Conversion time per enabled channel |
720 ms |
| Voltage input |
1 V RMS, 20 Hz to 1 kHz |
| Input connectors |
4 mm sockets |
| Input impedance |
>1 MΩ, AC coupled |
| Overvoltage protection |
±30 V DC |
| PC requirements |
| Minimum |
Processor: 1 GHz
Memory: 512 MiB
Free disk space: 32–bit: 600 MB, 64–bit: 1.5 GB
Operating system: 32– or 64–bit edition of Microsoft Windows XP (SP3), Vista, Windows 7 or Windows 8.1 (not Windows RT)
Ports: USB 1.1 port or Ethernet. |
| Recommended |
Processor: 1 GHz
Memory: 512 MiB
Free disk space: 32–bit: 850 MB, 64–bit: 2 GB
Operating system: 32– or 64–bit edition of Microsoft Windows 7 or Windows 8.1 (not Windows RT)
Ports: USB 1.1 (or higher), or Ethernet. |
| Environmental |
Operating environment
Temperature range
Humidity range |
0 °C to 50 °C (20 °C to 28 °C for stated accuracy)
20% to 80% RH, non–condensing |
Storage environment
Temperature range
Humidity range |
-20 °C to +60 °C
5% to 95% RH, non–condensing |
| Physical properties |
| Dimensions |
184 x 135 x 36 mm (approx 7.2 x 5.3 x 1.4 in) |
| Software |
| PicoLog for Windows |
PicoLog data acquisition software can collect up to 1 million samples. Features include:
Multiple views — view data as a graph, spreadsheet or text
Parameter scaling — convert raw data into standard engineering units
Math functions — use mathematical equations to calculate additional parameters
Alarm limits — program an alert if a parameter goes out of a specified range
IP networking — transfer measurements via a LAN or over the Internet
Operating systems supported: Microsoft Windows XP (SP3) to Windows 8.1 (stable software). |
| Software development kit |
Includes drivers and example code for various programming languages including C, C#, Excel and LabVIEW. |
| Language support |
Software
PicoLog |
Full support for: English, Français, Deutsch
Menus and dialogs only for: Italiano, Español, Svenska |
Documentation
User’s guide
Programmer’s guide
Installation guide |
English, Français, Deutsch, Italiano, Español, 中文
English
English, Français, Deutsch, Italiano, Español, Svenska, Nederlandse, Dansk |
| General |
| Additional hardware (supplied) |
USB 2.0 cable, Ethernet cable, user manuals, software CD–ROM |
| PC interface |
USB 2.0 (USB 1.1 compatible) or Ethernet |
| Power requirements |
Powered from USB port or Ethernet |
| Compliance |
European EMC and LVD standards
FCC Rules Part 15 Class A
RoHS compliant |
| Total satisfaction guarantee |
In the event that this product does not fully meet your requirements you can return it for an exchange or refund. To claim, the product must be returned in good condition within 14 days. |
| Warranty |
5 years |
