Model |

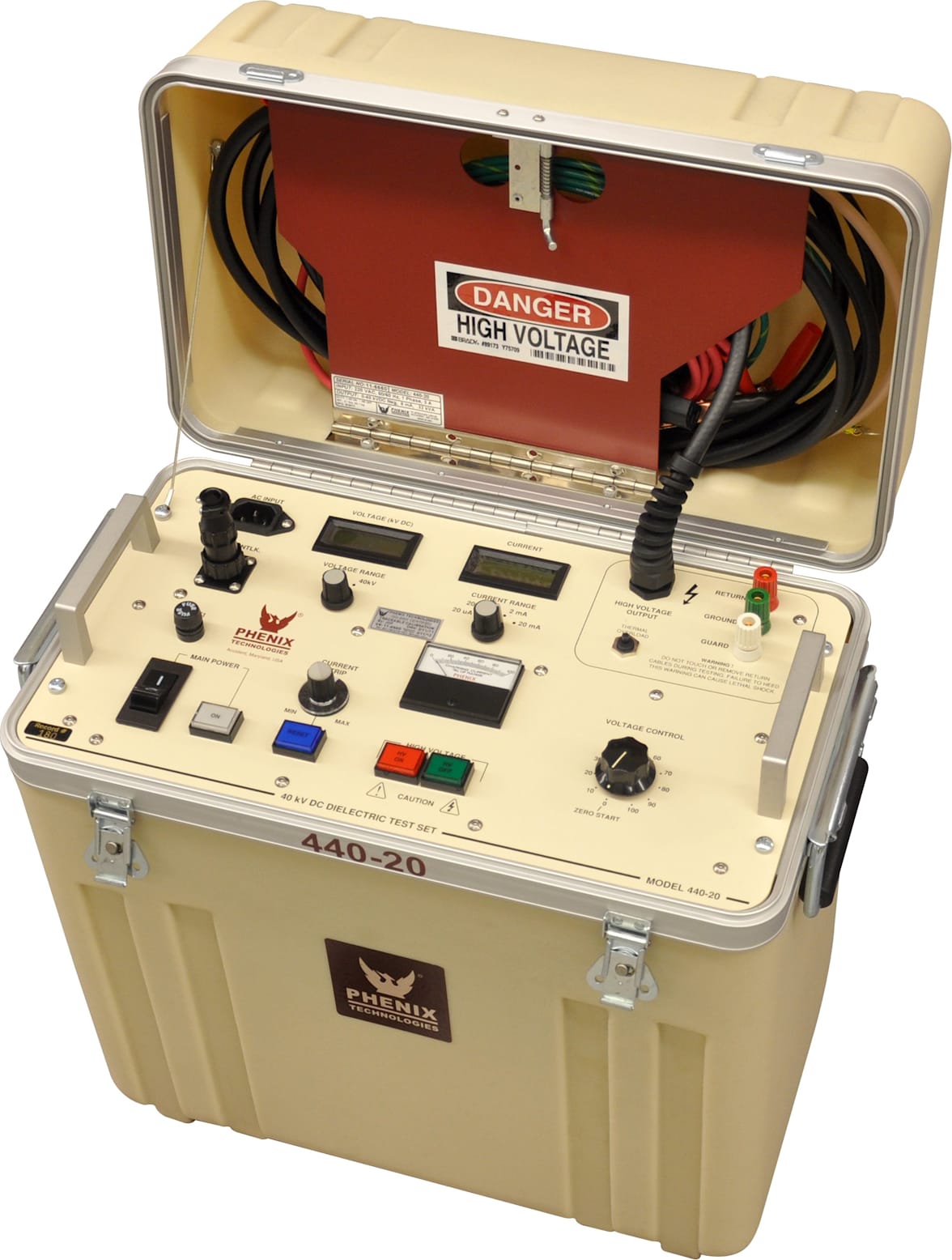

440-20 |
475-20 |
4100-10 |
4120-10 |
4160-5 |
4200-5 |
| Input |
Voltage / Current |
110-120 V, 5 A
220-240 V, 3A |
110-120 V, 10 A
220-240 V, 5A |
110-120 V, 10 A
220-240 V, 5A |
110-120 V, 10 A
220-240 V, 5 A |
110-120 V, 10 A
220-240 V, 5 A |
110-120 V, 10 A
220-240 V, 5 A |
| Frequency |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
| DC Output |
Voltage / Current |
0-40 kV, 20 mA |
0-75 kV, 20 mA |
0-100 kV, 10 mA |
0-120 kV, 10 mA |
0-160 kV, 5 mA |
0-200 kV, 5 mA |
| Ripple |
<2% |
<2% |
<2% |
<2% |
<2% |
<2% |
| Polarity |
negative output, positive ground |
| Duty Cycle |
Continuous Capacitive Charging |
20 mA |
20 mA |
10 mA |
10 mA |
5 mA |
5 mA |
| Internal Discharge Device |
Internal Discharge Device |
3 kJ |
6 kJ |
6 kJ |
12 kJ |
12 kJ |
12 kJ |
| Digital Metering |
Type / Accuracy |
3 1/2 digit, 0.5% of Full Scale |
| Voltmeter Range(s) |
0-19.99/40 kV |
0-19.99/75 kV |
0-19.99/100 kV |
0-19.99/120 kV |
0-19.99/160 kV |
0-19.99/200 kV |
| Currentmeter Range(s) |
0-19.99 μA/ 199.9 μA/ 1.999 mA/ 19.99 mA |
| Output Charging Indicator |
1.5" Analog 0-100% of selected range indication |
| Dimensions & Weights |
Controls |
L
W
H
Wt |
18.5" (470 mm)
10.5" (267 mm)
21.5" (546 mm)
50 lbs (23 kgs) |
18.5" (470 mm)
10.5" (267 mm)
21.5" (546 mm)
59 lbs (27 kgs) |
22.5" (572 mm)
21" (533 mm)
16.5" (420 mm)
98 lbs (44 kgs) |
21" (533 mm)
17" (432 mm)
14" (355 mm)
33 lbs (15 kgs) |
21" (533 mm)
17" (432 mm)
14" (355 mm)
33 lbs (15 kgs) |
21" (533 mm)
17" (432 mm)
14" (355 mm)
33 lbs (15 kgs) |
| HV Tank |
L
W
H
Wt |
one-piece design |
one-piece design |
one-piece design |
17.5" (440 mm)
12" (305 mm)
22" (560 mm)
111 lbs (50 kgs) |
18" (460 mm)
12.75" (325 mm)
28" (710 mm)
150 lbs (68 kgs) |
18" (460 mm)
12.75" (325 mm)
28" (710 mm)
150 lbs (68 kgs) |
| Shipping Size |
L
W
H
Wt
|
22" (558 mm)
14" (356 mm)
24" (610 mm)
56 lbs (25 kgs) |
22" (558 mm)
14" (356 mm)
24" (610 mm)
69 lbs (31 kgs) |
27" (686 mm)
26" (660 mm)
21" (533 mm)
115 lbs (52 kgs) |
48" (1219 mm)
30" (762 mm)
31" (787 mm)
195 lbs (88 kgs) |
42" (1067 mm)
27" (686 mm)
37" (940 mm)
285 lbs (129 kgs) |
42" (1067 mm)
27" (686 mm)
37" (940 mm)
285 lbs (129 kgs) |
| Cables Included |
Input Power
High Voltage
Ground
Return
Power Interconnect |
7' (2 m)
20' (6 m)
20' (6 m)
20' (6 m)
n/a |
7' (2 m)
20' (6 m)
20' (6 m)
20' (6 m)
n/a |
7' (2 m)
20' (6 m)
20' (6 m)
20' (6 m)
n/a |
7' (2 m)
20' (6 m)
20' (6 m)
20' (6 m)
25' (8 m) |
7' (2 m)
20' (6 m)
20' (6 m)
20' (6 m)
25' (8 m) |
7' (2 m)
20' (6 m)
20' (6 m)
20' (6 m)
25' (8 m) |
