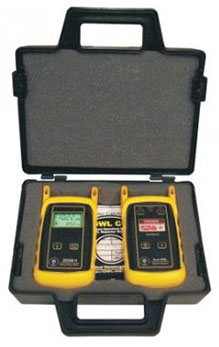

ZOOM 2 / Laser OWL Test Kit
The ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM 2 comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule.
![]()
General Features
- Charger Port / Optional VFL Port - Allows for charging of re-chargable 9-volt batteries, as well as wall power operation (9VDC transformer and 9-volt re-chargeable battery not included).
- NOT USED
- 2.5mm Universal Connector Port - accepts many popular 2.5mm ferrule connectors, including ST, SC, and FC. Also, for an additional charge, a 1.25mm universal cap is available (for connection to LC, MU, and other SFF connectors).
- LCD Display - shows optical power/loss levels, power units, wavelength, and battery status.
- Single press changes wavelength; holding button powers the unit ON or OFF.
- Single press toggles the power units between dBm, dB, and uW; holding sets the reference for the selected wavelength.
DO NOT USE BATTERY CHARGING PORT WITH NON- RECHARGEABLE BATTERIES. THERE IS THE POTENTIAL FOR EXPLOSION AND DAMAGE MAY OCCUR TO THE UNIT AND/OR THE USER.
As an option, a Visual Fault Locator (VFL) can be installed in place of the charger port.
The Laser OWL is a 1310/1550nm NIST traceable singlemode light source. Its dual wavelength outputs are temperature-stabilized for accurate measurements. The Laser OWL has three connector options: ST, SC, or FC.
![]()
Functional Description
- 1310nm port - Houses a 1310nm singlemode source and can be either a ST, SC, or FC connector.
- Charger Port - Allows for charging of re-chargable 9-volt batteries, as well as wall power operation. DO NOT USE BATTERY CHARGING PORT WITH NON- RECHARGEABLE BATTERIES, AS THIS COULD POTENTIALLY CAUSE HARM TO THE UNIT AND/OR THE USER.
- 1550nm port - Houses a 1550nm singlemode source and can be either a ST, SC, or FC connector.
- 1310nm Indicator LED - Indicates the ON/OFF status of the 1310nm laser source.
- 1550nm Indicator LED - Indicates the ON/OFF status of the 1550nm laser source.
- Charger Indicator LED - Indicates the status of the charger port.
- Power Button - Powers the unit ON or OFF.
- Wavelength Select Button - Switches the unit between 850nm and 1300nm.
NOTE: During normal operation, if the Output LED (3) is not lit, this indicates that the battery has insufficient power, and must be replaced.
