OWL KIT-WT-WS-MDSDxx WaveTester MM/SM WaveSource Quad MM/SM Auto-test kit

0 reviews | Model: OWL KIT-WT-WS-MDSDxx

OWL KIT-WT-WS-MDSDxx WaveTester / WaveSource Quad Auto-Test Kit

Compare

WaveTester MM/SM WaveSource Quad MM/SM Auto-test kit

Certification of multimode fiber links at 850/1300nm, and singlemode fiber links at 1310/1550nm
Auto-test functions store references and data points automatically
Data storage for up to 200 data points
USB interface for continuous data logging, report printing, or data downloading
OWL Reporter software for printing formatted fiber certification reports
Measurement modes include absolute (for optical power) or relative (for optical loss)
Selectively view, delete or re-sample data points

View Product Details

List Price: $2,010.00

Your Price: $1,546.15

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	OWL KIT-WT-WS-MDSDxx WaveTester MM/SM WaveSource Quad MM/SM Auto-test kit	OWL KIT-WT-WS-MDxx WaveTester meter and dual-wavelength multimode source (850/1300nm)	OWL KIT-WT-WS-SDxx WaveTester meter and dual-wavelength single-mode source (1310/1550nm)	OWL KIT-WT-WS-VSDxx WaveTester meter and dual-wavelength single-mode source (1310/1550nm) ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

KIT-WT-WS-MDSDxx WaveTester MM/SM WaveSource Quad MM/SM Auto-test kit

Data storage for up to 200 data points
USB interface for continuous data logging, report printing, or data downloading
OWL Reporter software for printing formatted fiber certification reports
Measurement modes include absolute (for optical power) or relative (for optical loss)
Selectively view, delete or re-sample data points

WaveTester / WaveSource 1310/1550/VFL Test Kit

Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed.

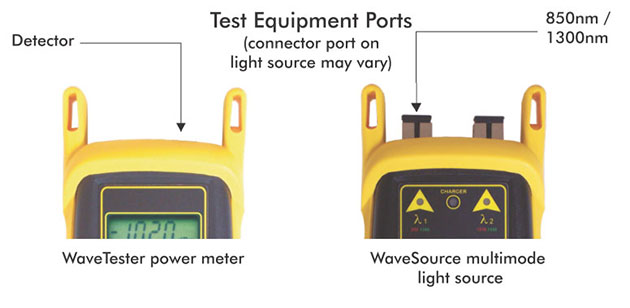

Figure shows the ports used during this procedure. These ports may vary depending upon the model of equipment.

Check OWL WaveTester Series Test Kit Quick Reference Guide in the Document Tab for more details.

The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard copy documentation as proof of adherence to standards.

The WaveTester / WaveSource 850/1300 Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in multimode networks

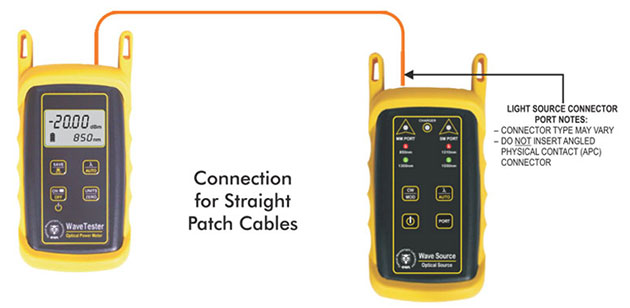

Connect the power meter and light source together with the first patch cable as shown in the figure.

Check OWL WaveTester Series Test Kit Quick Reference Guide in the Document Tab for more details.

The WaveTester optical power meter is multimode and singlemode ready, and can store reference values for all wavelengths used for optical loss measurements. Up to 200 fiber runs may be stored, and downloaded via a PC serial port for report generation using our OWL Reporter software

The WaveSource 850/1300 is a multimode light source. Its dual wavelength outputs (850 nm & 1300 nm) are temperature-stabilized for accurate measurements. Two connector options are available (STor SC).

Applications

Full-featured fiber link certification
Optical loss (attenuation) measurement
Patch cord verification

The WaveTester / WaveSource 1310/1550/VFL Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode networks.

Supported Cabling Standards:

EIA/TIA 568
ISO/IEC 11801
10-Gig Ethernet
1000Base-SX/LX
100Base-FX
10Base-FB/FL
FDDI
ATM-155/622
Fiber Channel
Token Ring

WaveSource Quad Fiber Optic Light Source
Launch Method (multimode)	LED
Launch Method (singlemode)	FP Laser
Connector	ST, SC, or FC (specify)
Center Wavelength (850 mm)	850 +30 / -10 nm
Center Wavelength (1300 nm)	1300 +/- 50 nm
Center Wavelength (1310 nm)	1310 +/- 30 nm
Center Wavelength (1550 nm)	1550 +/- 30 nm
Spectral Width (FWHM; 850 nm)	50 nm
Spectral Width (FWHM; 1300 nm)	180 nm
Spectral Width (FWHM; 1310 nm)	2 nm
Spectral Width (FWHM; 1550 nm)	2 nm
Output Power (multimode)	-20.0 dBm
Output Power (singlemode)	-10.0 dBm
Initial Accuracy	0.1 dB
Output Modes	Continuous Wave Modulated
Battery Life	up to 30 hrs
Battery Type	9V alkaline
Battery Capacity Display	Yes
Operating Temperature	0 to 55 C
Storage Temperature	0 to 75 C
Width	2.75 inch
Height	4.94 inch
Depth	1.28 inch
Weight	154g (5 oz)

Micro OWL 2 Optical Power Meter
Detector Type	InGaAs
Calibrated Wavelengths	850, 980, 1300, 1310, 1490, 1550, 1625 nm
Measurement Range	+5 to -70 dBm
Accuracy	+/- 0.15 dB
Resolution	0.01 dB
Battery Life	up to 100 hours (9V)
Connector Type	2.5/1.25 mm Universal
Data Storage Points	up to 1000
Download Data Points	OWL Reporter Software
Power Units Displayed	dBm, dB, uW
Battery Capacity Display	Yes
Backlight	Yes
NIST Traceable	Yes
Auto-shutdown	Yes
Operating Temperature	-10 to 55 C
Storage Temperature	-30 to 70 C
Width	3.48 inch
Height	6.48 inch
Depth	1.1 inch
Weight	373 g (12 oz)
