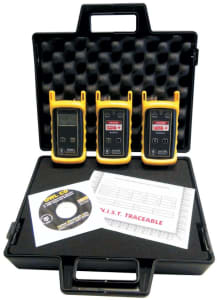

OWL KIT-Z2-D285xx-L213xx ZOOM 2 / Dual OWL 850 / Laser OWL 1310 Test Kit

0 reviews | Model: OWL KIT-Z2-D285xx-L213xx

Compare

ZOOM 2 / Dual 850 / Laser 1310 MM/SM Test Kit

Economical option for quick attenuation and loss testing of both multimode and singlemode networks
Easy-to-read 4-digit 7-segment LCD display
Store reference values for calibrated wavelengths
Intuitive 2-button interface on both units
On-screen wavelength, measurement units, and low battery indicator
NISTtraceable

View Product Details

List Price: $915.00

Your Price: $703.85

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	OWL KIT-Z2-D285xx-L213xx ZOOM 2 / Dual 850 / Laser 1310 MM/SM Test Kit	OWL KIT-Z2-D2ST-L2SC ZOOM 2 / Dual OWL / Laser OWL MM/SM Test Kit	OWL KIT-Z2-D2xx-L2xx ZOOM 2 / Dual OWL / Laser OWL MM/SM Test Kit	OWL KIT-Z2-L2xx ZOOM 2 / Laser OWL SM Test Kit	OWL KIT-Z2-D285SC-L213FC ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit, SC/FC Conn ...	OWL KIT-Z2-D285ST-L213FC ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit, ST/FC Conn ...	OWL KIT-Z2-D285FC-L213SC ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit, FC/SC Conn ...	OWL KIT-Z2-D285FC-L213ST ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit, FC/ST Conn ...	OWL KIT-Z2-D2FC-L2SC ZOOM 2 / Dual OWL / Laser OWL MM/SM Test Kit, FC/SC Connectors	OWL KIT-Z2-D2FC-L2ST ZOOM 2 / Dual OWL / Laser OWL MM/SM Test Kit, FC/ST Connetors	OWL KIT-Z2-D285FC-L213FC ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit, FC/FC Conn ...	OWL KIT-Z2-D2SC-L2FC ZOOM 2 / Dual OWL / Laser OWL MM/SM Test Kit,SC/FC Connectors
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

OWL KIT-Z2-D285xx-L213xx - ZOOM 2 / Dual OWL 850 / Laser OWL 1310 Test Kit

Easy-to-read 4-digit 7-segment LCD display
Store reference values for calibrated wavelengths
Intuitive 2-button interface on both units
On-screen wavelength, measurement units, and low battery indicator

The ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of multimode and singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM 2 comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule.

ZOOM 2 Optical Power Meter
Detector	InGaAs 1mm
Calibrated Wavelengths	850nm, 1300, 1310nm, 1490, 1550nm
Measurement Range	+5 to -60 dBm
Accuracy1	±0.15 dB
Linearity1	±0.20 dB
Resolution	0.01 dBm
Battery Life	up to 250 hours
Operating Temperature	-10 to 55° C
Storage Temperature	-30 to 70° C
NIST Traceable	Yes
Battery Capacity Display	Yes
Connector	2.5mm Universal
Width	2.75”
Height	4.94”
Depth	1.28”
Weight	154g
Dual OWL 850 Multimode Light Source
Launch Method	LED
Connector	SC, ST
Center Wavelength	850 ±30nm
Spectral Width	60 nm
Output Power	-20.0 dBm
Initial Accuracy	0.1 dB
Fiber Type	multimode
Battery Life	40 hours
Battery Capacity Display	Yes
Operating Temperature	0 to 55° C
Storage Temperature	0 to 75° C
Width	2.75”
Height	4.94”
Depth	1.28”
Weight	154g
Laser OWL 1310 Singlemode Laser Source
Launch Method	FP Laser
Center Wavelength (1310nm)	1310 ±30nm
Spectral Width (FWHM)	2 nm
Output Power	-10.0 dBm
Initial Accuracy	0.1 dB
Fiber Type	singlemode
Battery Life	25 hours
Battery Capacity Display	Yes
Operating Temperature	0 to 55° C
Storage Temperature	0 to 75° C
Width	2.75”
Height	4.94”
Depth	1.28”
Weight	154g
