NK AT2-005-000-FT AT Series Current Transducers

0 reviews | UPC: 817524010428 | Model: NK AT2-005-000-FT

Compare

0-100, 0-150 and 0-200 Amp Ranges, Top Terminals

Accurate
- Factory matched and calibrated single piece transducer is more accurate than traditional two-piece field installed solutions
Average Responding
- “Average Responding” algorithm gives an RMS output on pure sine waves. Perfect for constant speed (linear) loads
Jumper Selectable Ranges
- Reduces inventory
- Eliminates zero and span pots
Isolation
- Output is magnetically isolated from the input for safety
- Eliminates insertion loss (voltage drop)
UL, CUL and CE Approval
- Accepted worldwide

Applications:

Automation Systems
- Analog current reading for remote monitoring and software alarms
Data Loggers
- Self-powered transducer helps conserve data logger batteries
Panel Meters
- Simple connection displays power consumption

View Product Details

List Price: $127.00

Your Price: $113.03

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	NK AT2-005-000-FT 0-100, 0-150 and 0-200 Amp Ranges, Top Terminals	NK AT1-005-000-FT 0-10, 0-20 and 0-50 Amp Ranges, Top Terminals	NK AT2-005-000-SP 0-100, 0-150 and 0-200 Amp Ranges, Top Terminals	NK AT2-420-24L-FF 0-100, 0-150 and 0-200 Amp Ranges, Front Terminals	NK AT1-420-24L-FT 0-10, 0-20 and 0-50 Amp Ranges, Top Terminals	NK AT1-010-000-FT 0-10, 0-20 and 0-50 Amp Ranges, Top Terminals	NK AT0-420-24L-FF 0-2 and 0-5 Amp Ranges, Front Terminals	NK AT2-005-000-FF 0-100, 0-150 and 0-200 Amp Ranges, Front Terminals	NK AT2-010-000-FF 0-100, 0-150 and 0-200 Amp Ranges, Front Terminals	NK AT1-010-000-FF 0-10, 0-20 and 0-50 Amp Ranges, Front Terminals	NK AT0-420-24L-FT 0-2 and 0-5 Amp Ranges, Top Terminals	NK AT1-420-24L-SP 0-10, 0-20, 0-50 Amp Ranges, Top Terminals	NK AT2-010-000-SP 0-100, 0-150 and 0-200 Amp Ranges, Top Terminals	NK AT1-010-000-SP 0-10, 0-20 and 0-50 Amp Ranges, Top Terminals	NK AT2-420-24L-SP 0-100, 0-150, 0-200 Amp Ranges, Top Terminals	NK AT1-005-000-SP 0-10, 0-20 and 0-50 Amp Ranges, Top Terminals	NK AT1-005-000-FF 0-10, 0-20 and 0-50 Amp Ranges, Front Terminals	NK AT0-420-24L-SP 0-2 and 0-5 Amp Ranges, Top Terminals	NK AT2-420-24L-FT 0-100, 0-150 and 0-200 Amp Ranges, Top Terminals	NK AT1-420-24L-FF 0-10, 0-20 and 0-50 Amp Ranges, Front Terminals	NK AT2-010-000-FT 0-100, 0-150 and 0-200 Amp Ranges, Top Terminals
Price
In Stock
Maximum Current	200 A	50 A	200 A	200 A	50 A	50 A	5 A	200 A	200 A	50 A	5 A	50 A	200 A	50 A	200 A	50 A	50 A	5 A	200 A	50 A	200 A
Adjustable Output	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Accuracy	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

NK AT2-005-000-FT AT Series Current Transducers

AT Series Current Transducers

Amp ranges: 0-10, 0-20 and 0-50 amp
Terminals: Front
Isolation Voltage: UL listed to 1,270VAC (tested to 5KV)
Input ranges: Field selectable ranges from 0–200A
Case: UL94 V0 flammability rated

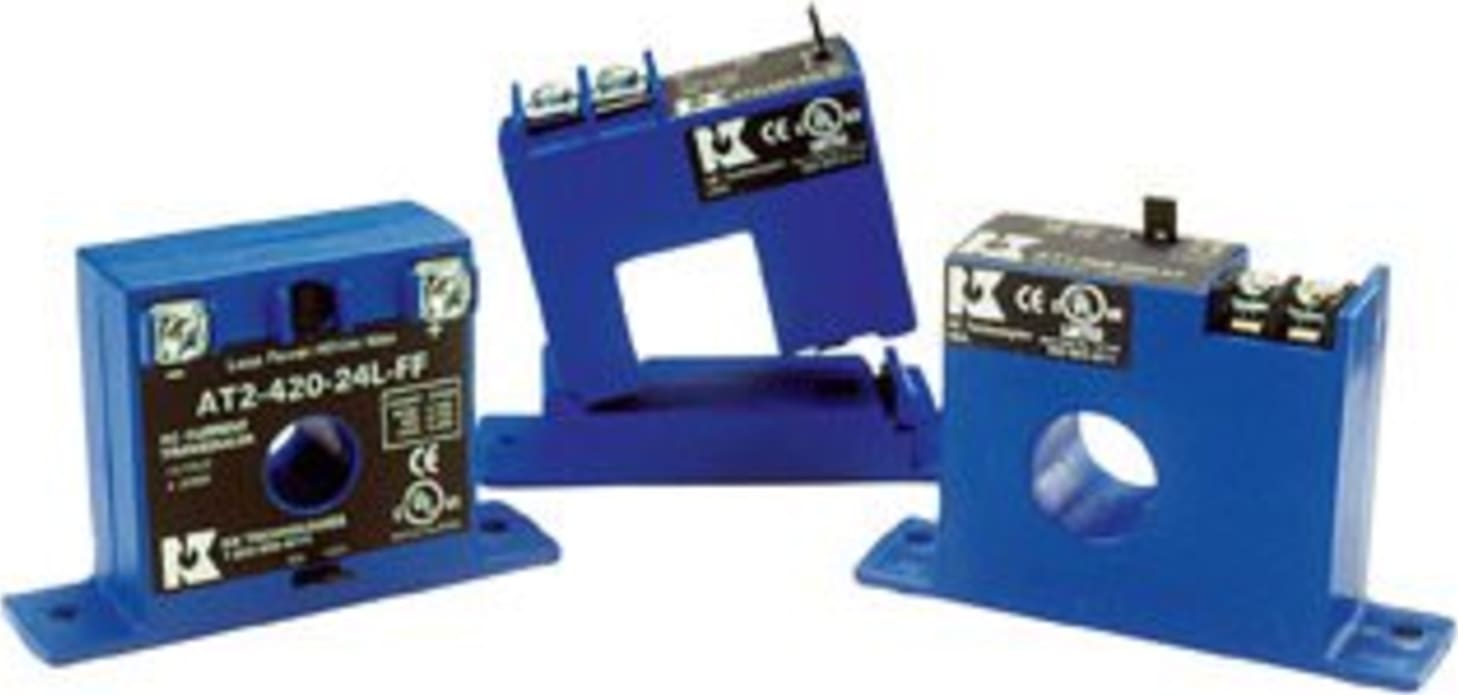

AT Series Current Transducers combine a current transformer and signal conditioner into a single package. The AT Series has jumper selected current input ranges and industry standard 4–20mA, 0–5VDC or 0–10VDC outputs. The AT Series is designed for application on ‘linear’ or sinusoidal AC loads. Available in a split-core case or two types of solid-core cases.

Designed to provide an analog current reading for monitoring, data logging and panel meter applications, these transducers offer a choice of 0–5VDC, 0–10VDC or 4–20mA average responding or True RMS outputs. Self-powered and split-core options make these a cost-effective choice as a PLC input in motor status applications or where VFDs are involved.

Connections:

Notes:

- Pressure plate screw terminals
- 12-22 AWG solid or stranded
- Field adjustable setpoint.

General Specifications
Model	-005 Model	-010 Model	-420 Model
Output Signal	0–5VDC	0–10VDC	4–20mA
Output Limit	8.2VDC	15VDC	32mA
Accuracy	1.0% FS
Response Time (10–90% step change)	100 ms		300 ms
Frequency Range	50–60Hz		20–100Hz*
Other Frequencies	Special calibration available for any frequency from 10–400Hz*
Power Supply	120VAC or 24VAC/VDC, 2VA max		12–40VDC, Loop-powered
Loading	1mOhm min. for rated accuracy 100kOhm add 1.3% error
Isolation Voltage	UL listed to 1,270VAC (tested to 5KV)
Input Ranges	Field selectable ranges from 0–200A; custom ranges available; consult factory
Sensing Aperture	-FF Case: 0.55” (14mm) dia. -FT Case: 0.74” (19mm) dia. -SP Case: 0.85” (21.6mm) sq
Case	UL94 V0 Flammability Rated
Environmental	-4 to 122°F (-20 to 50°C) 0–95% RH, noncondensing
Listings	UL 508 Industrial Control Equipment (USA & Canada), CE
*For sinusoidal waveforms only. Select ATR Transducers for distorted waveforms.

Current Sensors/Current Transducers Template
Maximum Current	200 A
Adjustable Output	No
Accuracy	1% FS
Response Time	100 MILISECONDS (0.1 s)
Aperture Size	19 MM
Test Equipment General Attributes
Product Height	2.50 IN
Product Length	4.75 IN
Product Width	3.50 IN
Shipping Height	2.50 IN
Shipping Length	4.75 IN
Shipping Width	3.50 IN
