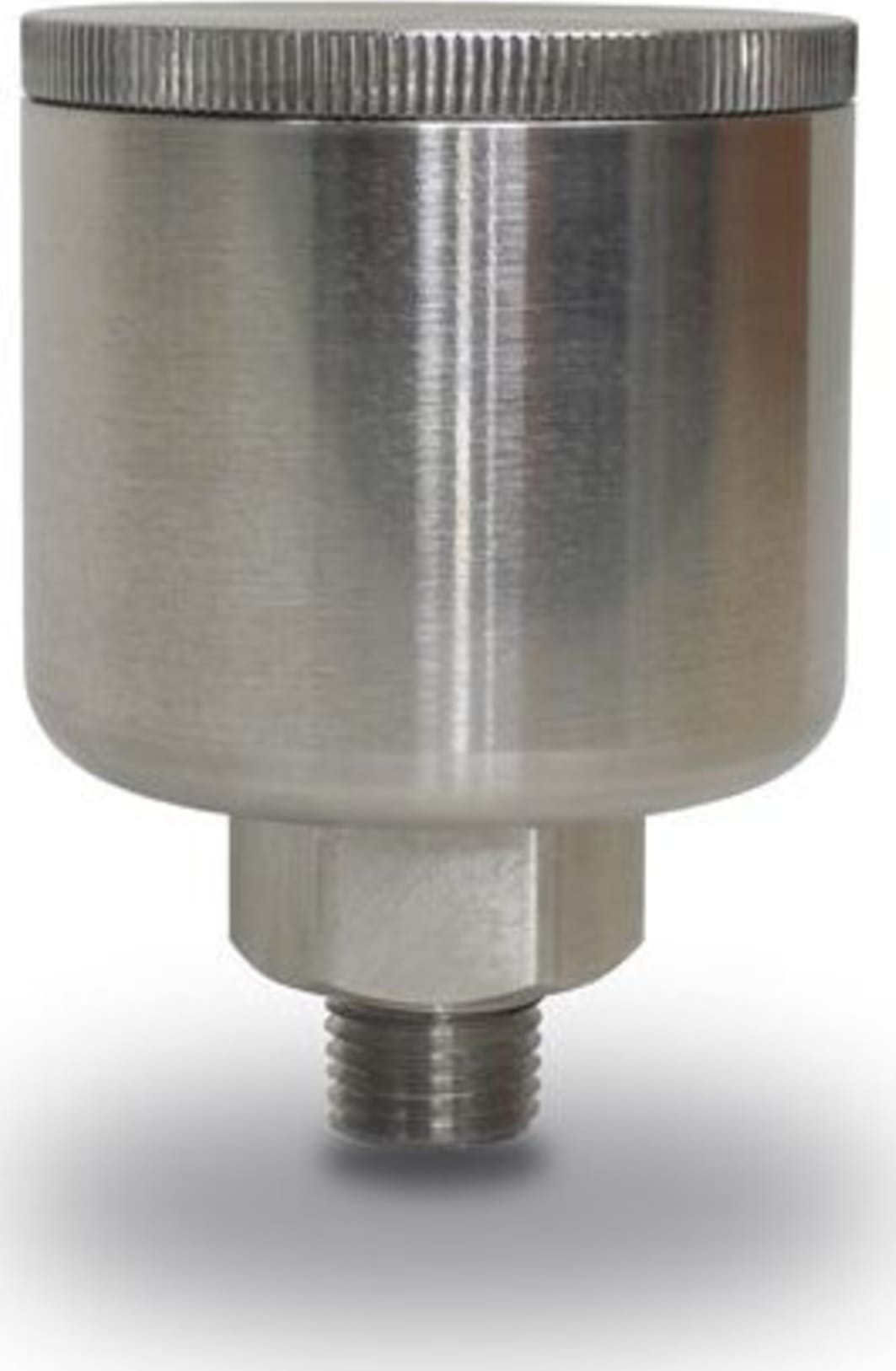

The Track-It™ Pressure/Temperature Data Logger is a battery powered stand alone water tight compact data logger that records up to 64,000 samples of Pressure and/or Temperature data. It can be configured to record Pressure and Temperature or either parameter alone to maximize data storage space. The unit is easily configured using the included Track-It™ Software. Simply connect a standard USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. The Track-It™ Pressure/Temperature Data Logger can be ordered in several pressure ranges: 0-35, 0-150, 0-350, 0-550 and 0-2300 PSI. The logger is packaged in a rugged submersible 316L stainless steel housing and has a standard 1/4” NPT fitting. The replaceable internal lithium battery has up to a 5 year life.

Typical Uses:

• Petro Chemical
• Municipalities
• Industrial processes
• Food processing
• Water supply line
• Hydrant water pressure
• Household water pressure
• Building supply pressure
• Oil and Gas
• Compressors
• Pumps
• Water and waste water

Track-It Software:

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data.Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.

View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.

Compatible with Win XP/Vista/7, 32 and 64 Bit
