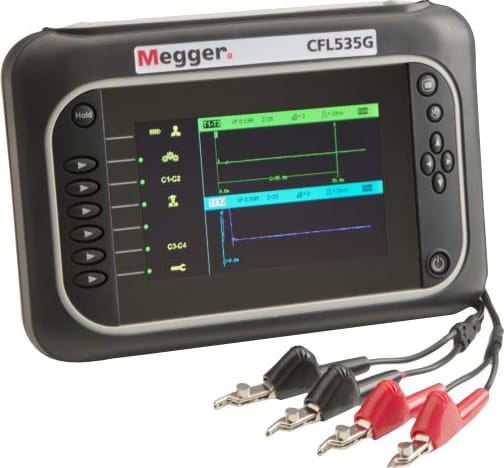

| General |
| Ranges |
Up to 20000m with a minimum resolution of 0.1m |
| Accuracy |
±1% of range ± 1 pixel at 0.67VF
[Note- The measurement accuracy is for the indicated cursor position only and is conditional on the velocity factor being correct.] |
| Resolution |
1% of range |
| Input Protection |
This instrument complies with IEC61010-1 for connection to live systems up to 150 V CAT IV. Fused leads must be used if the voltage between the terminals exceeds 300 V. |
| Output pulse |
Up to 20 volts peak to peak into open circuit. Pulse widths determined by range and cable |
| Gain |
Set for each range with user selectable steps (in Manual operating mode) |
| Velocity Factor |
Variable from 0.2 to 0.99 in steps of 0.01 |
| TX Null |
Automatic |
| Power Down |
User programmable auto power off timer 1, 5, 10 mins or off |
| Batteries |
Li-ion rechargeable battery with 12 hours typical life |
| Safety |
This instrument complies with IEC61010-1 for connection to live systems up to 150 V CAT IV or 300 V CAT III. Fused leads must be used if the voltage between the terminals exceeds 300 V. Compliant with EN60950-1, EN61010-3, UN38.3 and EN62133 |
| EMC |
Complies with Electromagnetic Compatibility Specifications (Light industrial) BS EN 61326-1, with a minimum performance of ‘B’ for all immunity tests |
| Mechanical |
The instrument is designed for use indoors or outdoors and is rated to IP54. |
| Case Dimensions |
11.4 in (290 mm) x 7.5 in (190 mm) x 2.2 in (55 mm) |
| Instrument weight |
3.8 lbs (1.7kg) |
| Case material |
ABS |
| Connectors |
Four 4mm-safety terminals and two F connectors. Other standard push on adapters will fit the CFL535G |
| Test Leads |
2 meters long consisting of 2 x 4mm shrouded connector to miniature crocodile clips (CFL535G) or Bed-of-Nails lead set (CFL535G) or .5 meter fused leads (CFL535GP) |
| Display |
800 x 480 pixel WVGA color graphics LCD, viewable in external environments. User selectable color schemes |
| Environmental |
| Operational Temperature |
5 ºF to 122 ºF (-15 ºC to 50 ºC) |
| Charging Temperature |
32 ºF to 104 ºF (0 ºC to 40 ºC) |
| Storage Temperature |
-4 ºF to 158 ºF (-20 ºC to 70 ºC) |
