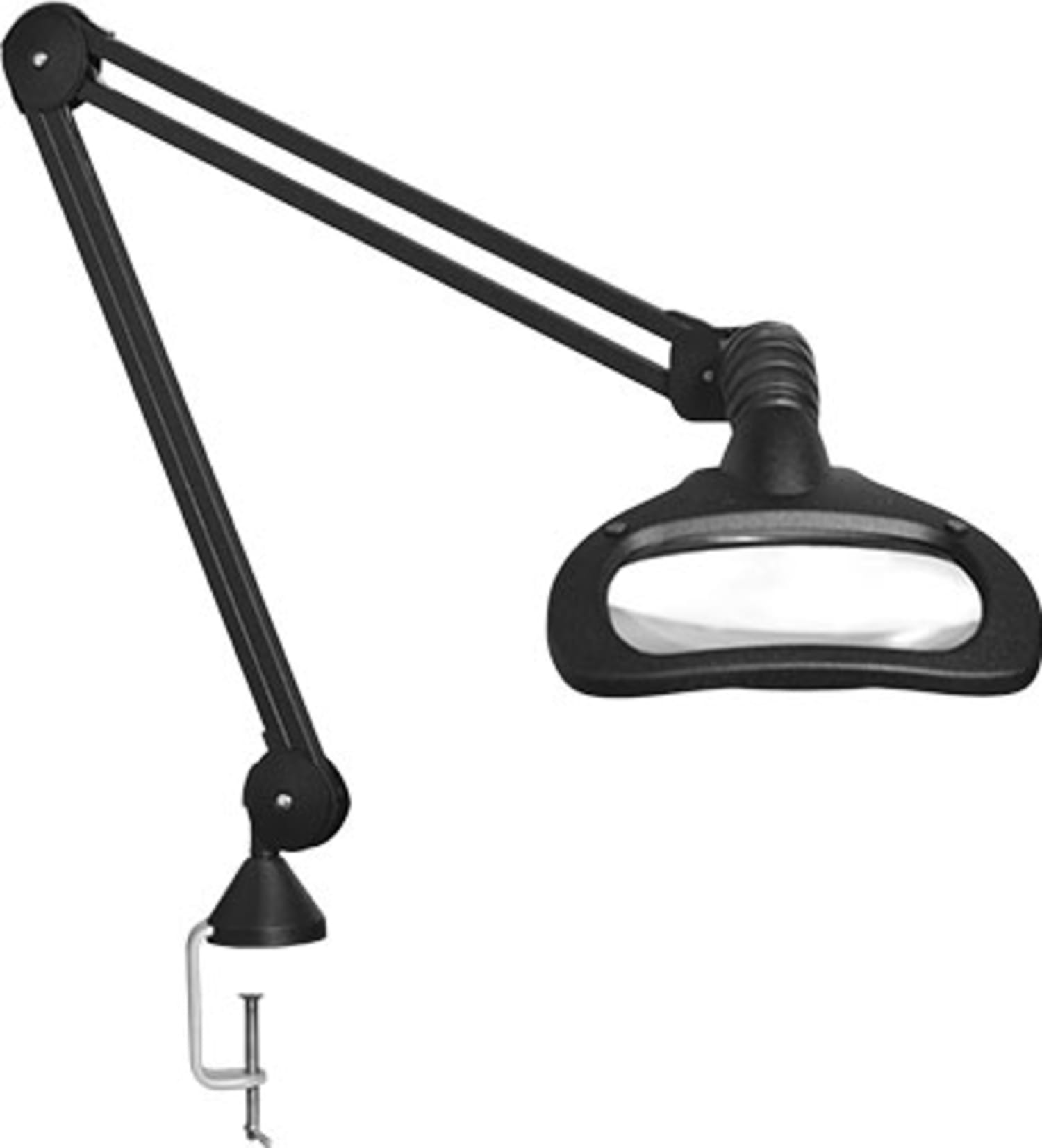

Luxo WAL026780 - Wave LED Magnifier (ESD/UV Version), 45" Arm, 3.5 Diopter Lens and Clamp

Wave LED magnifier - ESD Version

• ***ULTRAVIOLET VERSION***
• 45" arm
• 3.5 diopter lens
• Table clamp
• Black

The Wave LED UV-ESD is an illuminated magnifier designed for the inspection of conformal coatings in static-sensitive environments where electrostatic discharges can prove fatal for electronic components. The shade and arm are powder-coated with a metal-laced paint that measures 104 Ω/sq. (conductive). The remaining components are molded in a material that measures 105 – 106 Ω/sq. (static dissipative). Since the surfaces are no longer insulative, triboelectric charging results in drastically lower voltages, especially since any charge (under 50 volts) is uniformly distributed throughout the entire surface of the head assembly.

Maximum flexibility and precision

No knobs to tighten, nothing to adjust. The self-balancing shade and hands-free neck assembly make exact positioning easy. The spring-balanced arm provides maximum vertical and horizontal movement, and will always stay in the right position without drifting. The WAVE LED ESD is supplied with a 6.75" x 4.5", 3.5- (1.88X) or 5-diopter (2.25X) white crown optical-quality glass lens. A cloth shade cover is provided to protect the lens from unwanted dust and debris. Color: Black.

LED: Lightsource of the future

The Wave LED ESD is equipped with two 6W LED modules, which are individually controllable. A 9/4 hour automatic shut-off feature and step dimming (0-50-100%) further ensure energy savings.
