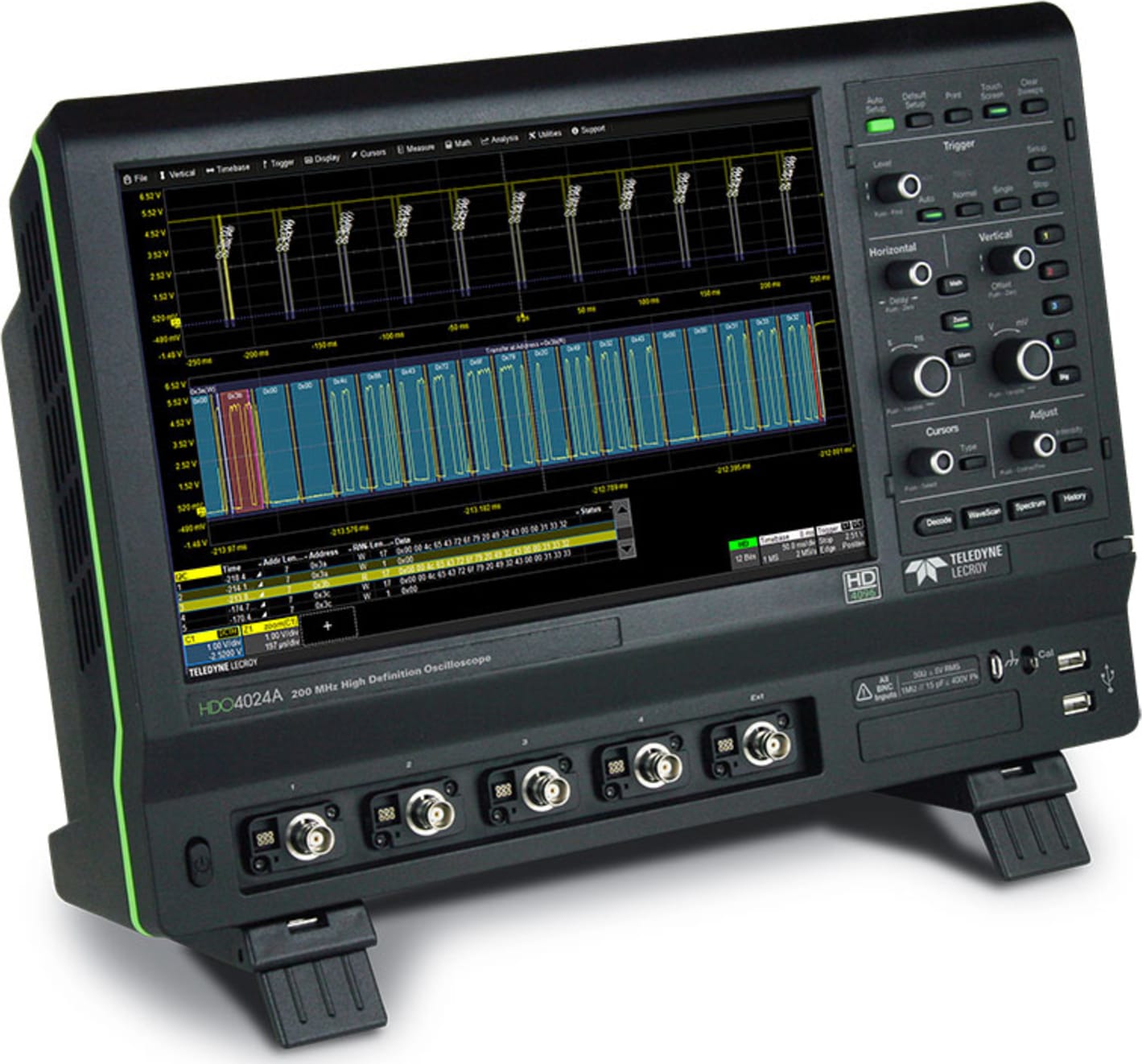

| Bandwidth @ 50 Ω (-3 dB) |
200 MHz |
350 MHz |
500 MHz |
1 GHz |
| Rise Time (10–90%, 50 Ω) |
1.75 ns |
1 ns |
700 ps |
450 ps |
| Input Channels |
4 |
| Vertical Resolution |
12-bits; up to 15-bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) |
8.8 bits |
8.7 bits |
8.6 bits |
8.4 bits |
| Vertical Noise Floor |
| 1 mV/div |
70 μVrms |
85 μVrms |
100 μVrms |
145 μVrms |
| 2 mV/div |
70 μVrms |
85 μVrms |
100 μVrms |
145 μVrms |
| 5 mV/div |
75 μVrms |
90 μVrms |
105 μVrms |
150 μVrms |
| 10 mV/div |
80 μVrms |
95 μVrms |
110 μVrms |
155 μVrms |
| 20 mV/div |
100 μVrms |
110 μVrms |
130 μVrms |
185 μVrms |
| 50 mV/div |
195 μVrms |
210 μVrms |
265 μVrms |
275 μVrms |
| 100 mV/div |
340 μVrms |
360 μVrms |
450 μVrms |
500 μVrms |
| 200 mV/div |
1.00 mVrms |
1.10 mVrms |
1.25 mVrms |
1.75 mVrms |
| 500 mV/div |
1.90 mVrms |
2.10 mVrms |
2.60 mVrms |
2.75 mVrms |
| 1 V/div |
3.40 mVrms |
3.70 mVrms |
4.50 mVrms |
4.90 mVrms |
| Sensitivity |
50 Ω: 1 mV/div–1 V/div, fully variable; 1 MΩ: 1 mV/div–10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) |
±(0.5%) F.S, offset at 0 V |
| Channel-Channel Isolation |
DC-200 MHz: 60 dB (>1000:1), (For any two input channels, same V/div settings, typical) |
DC-200 MHz: 60 dB (>1000:1), 200 MHz up to rated BW: 50 dB (>300:1), (For any two input channels, same V/div settings, typical) |
DC-200 MHz: 60 dB (>1000:1), 200 MHz up to rated BW: 50 dB (>300:1), (For any two input channels, same V/div settings, typical) |
DC-200 MHz: 60 dB (>1000:1), 200-500 MHz: 50 dB (>300:1), 500 MHz up to rated bandwidth: 40 dB (>100:1) (For any two input channels, same V/div settings, typical) |
| Offset Range |
50 Ω: 1 mV - 4.95 mV: ±1.6 V, 5 mV - 9.9 mV: ±4 V, 10 mV - 19.8 mV: ±8 V, 20 mV - 1 V: ±10 V
1 MΩ: 1 mV - 4.95 mV: ±1.6 V, 5 mV - 9.9 mV: ±4 V, 10 mV - 19.8 mV: ±8 V, 20 mV - 100 mV: ±16 V,
102 mV - 198 mV: ±80V, 200 mV - 1 V: ±160 V, 1.02 V -10 V: ±400 V |
| DC Vertical Offset Accuracy |
±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage |
50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≤ 10 KHz) |
| Input Coupling |
50 Ω: DC, GND; 1 MΩ: AC, DC, GND; |
| Input Impedance |
50 Ω ± 2.0%;1 MΩ ± 2.0% || 16 pF, |
| Bandwidth Limiters |
20 MHz, 200 MHz |
| Horizontal - Analog Channels |
| Acquisition Modes |
Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/DIvision Range |
200 ps/div - 1.25 ks/div with standard memory (up to 2.5 ks/div with -L memory);
RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Clock Accuracy |
±2.5 ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter |
Up to 10 ms acquired time range: 280 fsrms (internal timebase reference) |
| Jitter Between Channels |
Analog Channels: 2 psrms (TIE, typical); Digital Channels: 350 ps (maximum) between any two channels
Analog-Digital Channels: <5ns (maximum) between any analog and any digital channel |
| Channel-Channel Deskew Range |
±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) |
10 MHz ±25 ppm at 0 to 10 dBm into 50 Ω |
| External Timebase Reference (Output) |
10 MHz, 2.0 dBm ±1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| Acquisition - Analog Channels |
| Sample Rate (Single-shot) |
10 GS/s on all 4 Channels with Enhanced Sample Rate |
| Sample Rate (Repetitive) |
125 GS/s, user selectable for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (# of Segments in Sequence Mode) |
Standard: 12.5 Mpts/ch for all channels, 25 Mpts (interleaved) (10,000 segments)
Option - L: 25 Mpts/ch for all channels, 50 Mpts (interleaved) (10,000 segments) |
| Intersegment Time |
1 μS |
| Averaging |
Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) |
From 12.5- to 15-bits vertical resolution |
| Envelope (Extrema) |
Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation |
Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2 pt or 4 pt Sin x/x respectively |
| Vertical, Horizontal, Acquisition - Digital Channels (with HDO4000A-MS only) |
| Input Channels |
16 Digital Channels |
| Threshold Groupings |
Pod 2: D15 - D8, Pod 1: D7 - D0 |
| Threshold Selections |
TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined |
| Maximum Input Voltage |
±30V Peak |
| Threshold Accuracy |
±(3% of threshold setting + 100mV) |
| Input Dynamic Range |
± 20V |
| Minimum Input Voltage Swing |
400mV |
| Input Impedance (Flying Leads) |
100 kΩ || 5 pF |
| Maximum Input Frequency |
250 MHz |
| Sample Rate |
1.25 GS/s |
| Record Length |
Standard: 12.5 MS (25 MS interleaved) - 16 Channels
Optional -L: 25 MS (50 MS interleaved) - 16 Channels |
| Minimum Detectable Pulse Width |
2 ns |
| Channel-to-Channel Skew |
350 ps |
| User Defined Threshold Range |
±10 V in 20 mV steps |
| User Defined Hysteresis Range |
100 mV to 1.4 V in 100 mV steps |
| Triggering System |
| Modes |
Normal, Auto, Single, and Stop |
| Sources |
Any input channel, External, Ext/10, or line; slope and level unique to each source (except for line trigger) |
| Coupling |
DC, AC, HFRej, LFRej |
| Pre-trigger Delay |
0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay |
0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off |
From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter |
≤ 4 ps rms (typical) |
≤ 4 ps rms (typical) |
≤ 3.5 ps rms (typical) |
≤ 3.5 ps rms (typical) |
| Internal Trigger Level Range |
±4.1 div from center (typical) |
| External Trigger Input Range |
Ext: ±400 mV, Ext/10: ±4 V |
| Maximum Trigger Rate |
1,000,000 waveforms/sec (in Sequence Mode, up to 4 channels) |
Trigger Sensitivity with Edge Trigger
(Ch 1–4) |
0.9 division: 10 MHz
1.0 divisions: 200 MHz |
0.9 division: 10 MHz
1.0 divisions: 200 MHz
2.0 divisions: 350 MHz |
0.9 division: 10 MHz
1.0 divisions: 200 MHz
1.5 divisions: 250 MHz
2.0 divisions: 500 MHz |
0.9 division: 10 MHz
1.0 divisions: 200 MHz
1.5 divisions: 500 MHz
2.0 divisions: 1 GHz |
Trigger Sensitivity with Edge Trigger
(External Input) |
0.9 division: 10 MHz
1.0 divisions: 200 MHz
2 |
0.9 division: 10 MHz
1.0 divisions: 200 MHz
2.0 divisions: 350 MHz |
0.9 division: 10 MHz
1.0 divisions: 200 MHz
1.5 divisions: 250 MHz
2.0 divisions: 500 MHz |
0.9 division: 10 MHz
1.0 divisions: 200 MHz
1.5 divisions: 500 MHz
2.0 divisions: 1 GHz |
| Max. Trigger Frequency, Smart Trigger |
200 MHz |
350 MHz |
500 MHz |
1 GHz |
| Trigger Types |
| Edge |
Triggers when signal meets slope (positive, negative, or either) and level condition |
| Width |
Triggers on positive or negative glitches with selectable widths. Minimum width 1.5ns, Maximum width: 20 s |
| Glitch |
Triggers on positive or negative glitches with selectable widths. Minimum width 1.5ns, Maximum width: 20 s |
| Window |
Triggers when signal exits a window defined by adjustable thresholds |
| Pattern |
Logic combination (AND, NAND, OR, NOR) of up to 5 inputs (4 channels and external trigger input).
Each source can be high, low, or don’t care. The High and Low level can be selected independently.
Triggers at start or end of the pattern. |
| TV-Composite Video |
Triggers NTSC or PAL with selectable line and field;
HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or
CUSTOM with selectable Fields (1–8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz),
Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative) |
| Runt |
Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns |
| Slew Rate |
Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns |
| Interval |
Triggers on intervals selectable between 1 ns and 20 s |
| Dropout |
Triggers if signal drops out for longer than selected time between 1 ns and 20 s |
| Triggers with Exclusion Technology |
Glitch, Width, Interval, Runt, Slew Rate - Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Qualified (Timeout or State/Edge Qualified) |
Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels). |
| Low Speed Serial Protocol Trigger (Optional) |
I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
| Measurement Tools |
| Measurement Functionality |
Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. . Histicons provide a fast, dynamic view of parameters and wave shape characteristics. Parameter gates define the location for measurement on the source waveform. |
| Measurement Parameters - Horizontal + Jitter |
Delay (from trigger, 50%), Duty Cycle (50%, @level), Edges (@level),Fall Time (90-10, 20-80), Frequency (50%, @level), Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, 20-80), Skew, Time (@level), Δ Time (@level), Width+, Width- |
| Measurement Parameters - Vertical |
Amplitude, Base, Maximum, Mean, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse |
Area, Base, Fall Time (90-10, 80-20), Overshoot (positive, negative), Rise Time (10-90, 80-20), Top, Width+, Width- |
| Math Tools |
| Math Functionality |
Display up to 2 math functions traces (F1-F2). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math |
Average (summed), Average (continuous), Difference (–), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Filters |
Enhanced resolution (to 15 bits vertical) |
| Math Operators - Frequency Analysis |
FFT (power spectrum, magnitude), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions |
Absolute value, Derivative, Integral, Invert (negate), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Measurement and Math Integration |
| |
Trend (datalog) of up to 1 million measurement parameters. |
| Pass/Fail Testing |
| Pass/Fail Testing |
Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions) with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
| Display System |
| Display Size |
Color 12.1” widescreen flat panel TFT-Active Matrix with high resolution touch screen |
| Display Resolution |
WXGA; 1280 x 800 pixels |
| Number of Traces |
Display a maximum of 16 traces. Simultaneously display channel, zoom, memory, math, and X-Y traces |
| Grid Styles |
Auto, Single, Dual, Quad, Octal, Tandem, Quattro, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation |
Sample dots joined, or sample dots only |
| Processor/CPU |
| Type |
Intel® Core™ i3-2330E Dual, 2.2 GHz (or better) |
| Processor Memory |
8 GB standard standard |
| Operating System |
Microsoft Windows® 7 Pro 64-Bit Embedded |
| Oscilloscope Operating Software |
Teledyne LeCroy MAUI™ with OneTouch |
| Connectivity |
| Ethernet Port |
Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports |
Minimum 6 total (incl. 2 front panel) USB 2.0 ports support Windows compatible devices |
| USB Device Port |
1 USBTMC port |
| GPIB Port (Optional) |
Supports IEEE – 488.2 (External) |
| External Monitor Port |
15 pin D-Type WXGA compatible DB-15 to support customer-supplied external monitor. Includes support for extended desktop operation with WXGA resolution on second monitor. Supports touch screen integration of external monitor (Note: external display can not use a Fujitsu touch-screen driver). |
| Remote Control |
Via Windows Automation, or via Teledyne LeCroy Remote Command Set |
| Probes |
| Standard Probes |
Qty. (4) ÷10 Passive Probes |
| Probing System |
ProBus. Automatically detects and supports a variety of compatible probes |
| Power Requirements |
| Voltage |
100–240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II |
| Power Consumption (Nominal) |
200 W / 200 VA |
| Max Power Consumption |
320 W / 320 VA (with all PC peripherals and active probes connected to 4 channels) |
| Environmental |
| Temperature |
Operating: 5 °C to 40 °C; Non-Operating: -20 °C to 60 °C |
| Humidity |
Operating: 5% to 90% relative humidity (non-condensing) up to +31 °C, Upper limit derates to 50% relative humidity (non-condensing) at +40 °C;
Non-Operating: 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude |
Operating: 3,048 m (10,000 ft) max at +30 °C; Non-Operating: Up to 12,192 meters (40,000 ft) |
| Random Vibration |
Operating : 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes;
Non-Operating: 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock |
30 gpeak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
| Physical |
| Dimensions (HWD) |
11.48”H x 15.72”W x 5.17”D (291.7 mm x 399.4 mm x 131.31 mm) |
| Weight |
12.9 lbs. (5.86 kg.) |
| Certifications |
CE Certification
UL and cUL Listing |
CE Compliant, UL and cUL listed, confirms to:
UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition)
CAN/CSA C22.2 No.61010-1-12 |
| |
CE Compliant, UL and cUL listed, confirms to:
UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition)
CAN/CSA C22.2 No.61010-1-12 |
| Warranty and Service |
| |
3-year warranty; calibration recommended annually. Optional service programs include extended warranty,
upgrades, and calibration services |
