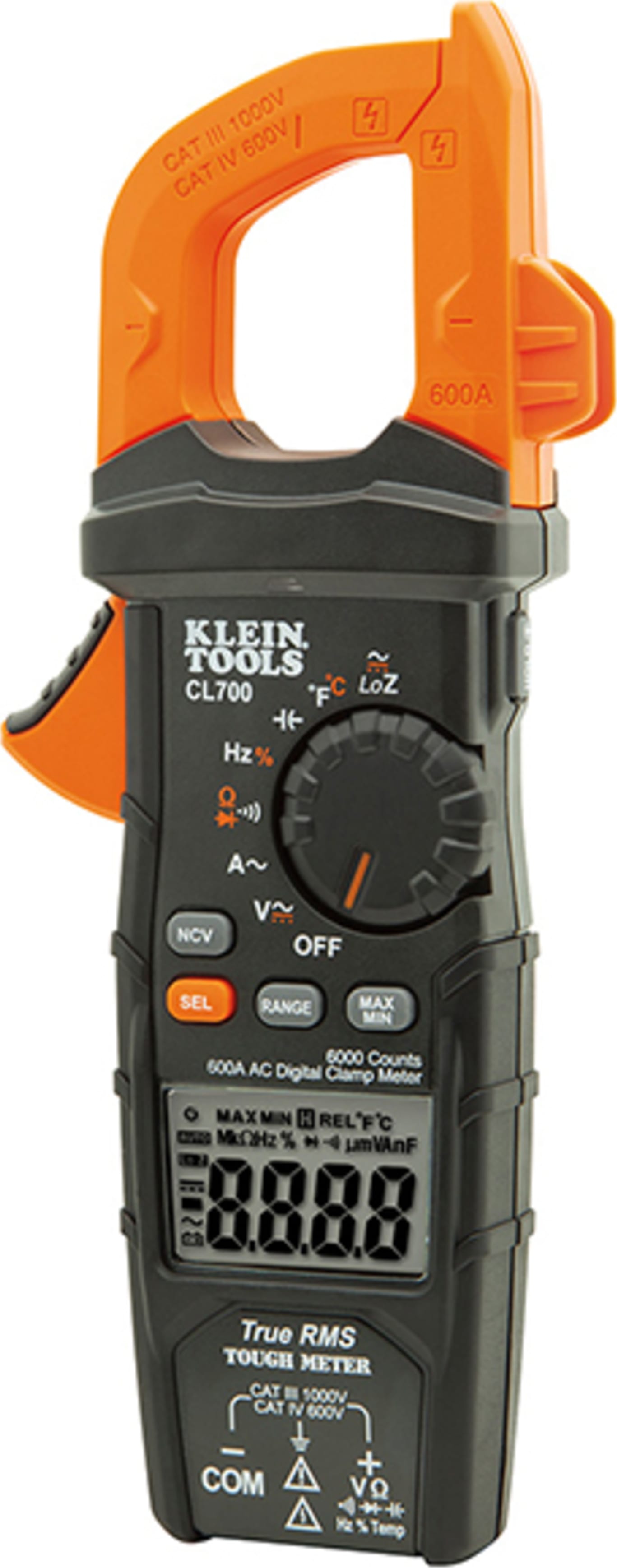

Klein Tools CL700 - Digital Clamp Meter, AC Auto-Ranging TRMS, Low Impedance (LoZ) Mode

Name: Klein Tools CL700 - Digital Clamp Meter, AC Auto-Ranging TRMS, Low Impedance (LoZ) Mode
Brand: Klein Tools
SKU: KleinCL700
Price: 109.97 USD
Availability: InStock

0 reviews | UPC: 092644690150 | Model: Klein Tools CL700

Klein Tools CL700 Digital Clamp Meter, AC Auto-Ranging, 600A

Compare

Digital Clamp Meter AC Auto-Ranging LoZ

Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
Electronic Tester's clamp measures AC current and its thermocouple probe measures temperature
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2 m) drop
Low battery indicator and easily accessible battery compartment
Includes a carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
Operating altitude to 6562-Foot (2000 m)

View Product Details

List Price: $153.94

Your Price: $109.97

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Klein Tools CL700 Accessories

Choose a Category

Line Splitters

for the Klein Tools CL700

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Klein Tools CL700 - Digital Clamp Meter, AC Auto-Ranging TRMS, Low Impedance (LoZ) Mode

Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
Electronic Tester's clamp measures AC current and its thermocouple probe measures temperature
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2 m) drop

The Klein Tools CL700 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.

Klein Tools CL700 Specifications
Safety Rating	CAT IV 600V
Batteries	2 x AAA
Jaw Size	1-3/8" (34.92 mm)
Height	9.09" (230.88 mm)
Width	3.82" (97.02 mm)
Depth	1.54" (39.11 mm)
Weight	11.8 oz. (335 g)
Included Accessories	Carrying Case, Test Leads, Thermocouple with Adapter, and Batteries
AC Current	600A
AC Voltage	1000V
Application	Measures AC Current
Audible Continuity	Yes
Auto Ranging	Yes
Auto-Power Off	Yes
Backlight	Yes
Capacitance Test	6000µF
DC Millivolts	Yes
DC Voltage	1000V
Data Hold	Yes
Dimensions	9.09" x 3.82" x 1.54"
Diode Test	Yes
Drop Protection	6.6 ft. (2 m)
Frequency/Duty Cycle	1Hz - 500 KHz
Included	Carrying Case, 41" Test Leads, Thermocouple with Adapter, and Batteries
Ingress Protection	IP40
LCD Display Count	6000
Low Impedance	Yes
Magnetic Mount	Available as Accessory
Max/Min	Yes
Non-Contact Voltage Testing	Yes
Number of Batteries	2 x AAA
Ohms (Resistance)	60MO
Range Hold	Yes
Special Features	Features Low Battery Indicator
Standard	CE Certified
Temperature Range	-14° - 1000°F (-26° - 538°C)
True RMS	Yes

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Voltage AC	1000 V
Maximum Conductor Size	1.3 IN
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Auto Ranging
Test Equipment General Attributes
Product Height	3.00 IN
Product Length	12.50 IN
Product Width	6.25 IN
HTS/Schedule B Number	9030310000
Shipping Height	3.00 IN
Shipping Length	12.50 IN
Shipping Width	6.25 IN
