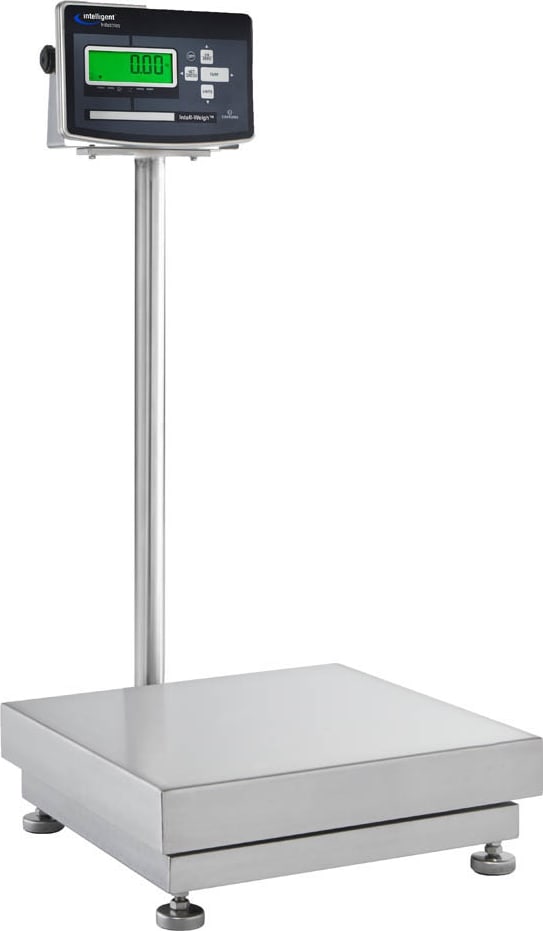

| Model: IWT-150-16 Specifications |
| Model |
IWT-150-16 |
IWT-300-16 |
IWT-300-24 |
IWT-600-24 |
| Capacity |
150 lb / 60 kg |
300 lb / 150 kg |
300 lb / 150 kg |
600 lb / 300 kg |
| Readability |
0.05 lb / 0.02 kg |
0.1 lb / 0.05 kg |
0.05 lb / 0.02 kg |
0.1 lb / 0.05 kg |
| Divisions |
3,000 |
3,000 |
3,000 |
3,000 |
| Weighing Units |
NTEP; lb, kg only / Non-NTEP Primary units – kg, lb,oz (Gn, dwt, ct, lb:oz also available) |
| Functions |
Net/gross, pre-tare function, checkweighing (parts counting, animal hold, peak hold non-NTEP) |
| Tare Range |
To capacity by subtraction |
| Power Source |
Built-in rechargeable battery or external power adapter (included) |
| Construction |
All stainless steel washdown with aluminum load cell |
| Display |
1 inch high backlit LCD display |
| Platform Size (W x D x H) |
16 x 16 x 6 inches / 400 x 400 x 152 mm |
24 x 24 x 6 inches / 610 x 610 x 152 mm |
| Overall Dimensi ons (W x D x H) |
16 x 16 x 34 inches / 400 x 400 x 863 mm |
24 x 24 x 34 inches / 610 x 610 x 863 mm |
| Connectivity |
RS 232 interface Bi-Directional or serial printer output |
| Net Weight |
42 lb / 20 kg |
71 lb / 32.2 kg |
| Shipping Weight |
48 lb / 22 kg |
88 lb / 40 kg |
| NEMA / IP Rating |
Platform: IP 66
Indicator: NEMA 4X / IP 67 |
| Approvals |
Platform: NTEP CoC # 07-067A1
Indicator: NTEP CoC # 07-110, Measurement Canada Approval #AM-5651 |
| Options |
Stainless Steel Wheel Kit, Printer |
| Intelligent-Check™ Indicator Option |
Graphic Checkweighing Display, Lot #, Time/Date, 3 Weighing Speeds, Pushbutton Tare |
