Intelligent Weighing Technology 8-ICS-SNTP-102 Intelligent-Check Indicator Series

Name: Intelligent Weighing Technology 8-ICS-SNTP-102 Intelligent-Check Indicator Series
Brand: Intelligent Weighing Technology
SKU: Intelweigh8-ICS-SNTP-102
Price: 351.00 USD
Availability: InStock

0 reviews | Model: Intelligent Weighing Technology 8-ICS-SNTP-102

Compare

Capacity: NTEP, Readability: , Pan/Platform Size: , Draft Shield: NTEP up to 10,000

Large Backlit HI-OK-LO Graphic Display
Full Keyboard Tare
Bi-directional RS 232 Interface
Heavy Duty Construction
Stainless Steel, Washdown - NEMA 4X / IP 67 Protection
NTEP / Measurement Canada Approved 10,000 Divisions, Class III and IIIL
Real Time Clock

View Product Details

List Price: $390.00

In Stock:

View Payment Options

Recommended for you

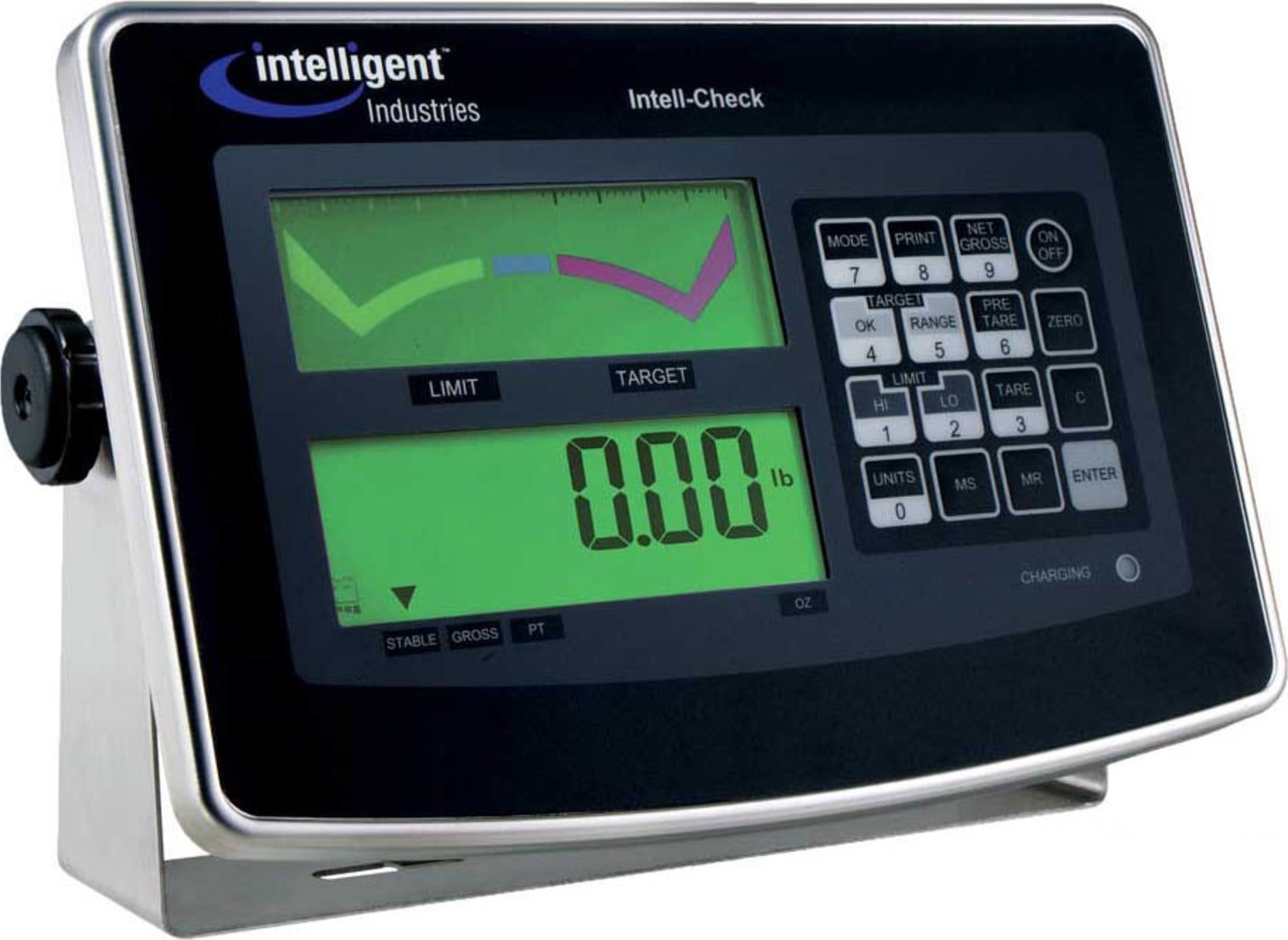

Intelligent-Check Indicator Series

Intelligent Weighing Technology 8-ICS-SNTP-102

Features & Benefits

Large backlit graphic display - can be easily read in less than ideal conditions
Auto zero tracking - ensures that you always start weighing at zero
Adjustable weighing speed filters - allows you to adjust for environmental conditions
HI-OK-LO graphic display with configurable buzzer output - makes checkweighing fast and easy
Real time clock - for time and date printing
Gravitational correction software - allows you to input different G acceleration factors

Accumulation function - allows you to add together consecutive weights to arrive at a total
Low battery indicator - alerts you to charge the battery, saving downtime
Automatic power save - conserves battery power

Model: 8-ICS-SNTP-102 Specifications
Free Capacity	Setting Up to 10,000 divisions NTEP or MC (up to 30,000 divisions non-NTEP)
Weighing Units	NTEP or MC: kg, lb, only Non NTEP/MC: Primary units – kg, lb, oz (Gn, dwt, ct, lb:oz, g also available)
Functions	Checkweighing with memory store and recall, limit and target weight modes, net/gross function, pre-tare function, time/date. Lot #, accumulation (only w/ printer), percentage, with signals for relay output.
Number of Load Cells	Can drive up to 4 350 Ω load cells
Calibration	Via keyboard
Zero Adjustable Range	-1mV ~ +5mV
Non Linearity	0.01% F.S.
Input Signal Range	-2mV ~ +16mV
Load Cell Excitation	5V DC ± 5% 100mA
Internal Resolution	300,000 Counts maximum
A/D Resolution	500,000 Counts maximum
Display Resolution	30,000 Divisions (non NTEP/MC)
Display	Large backlit graphic HI-OK-LO checkweighing LCD display
Power Source	Built-in rechargeable battery or external power adapter (included)
Construction	Stainless steel
Operating Environment	32 °F ~ 104°F / 0°C ~ 40°C
Dimensions (w x h)	10.1 x 6.7 inches / 256 x 170 mm
Connectivity	RS 232 interface bi-directional or serial printer output, real time clock for time and date printing
Net Weight	5 lb / 2.3 kg
Shipping Weight	7 lb / 3.2 kg
NEMA / IP Rating	NEMA 4X / IP 67
Approvals	NTEP CoC #07-110 Measurement Canada Approval #AM-5651
Options	Relay outputs
Accessories	Printers
