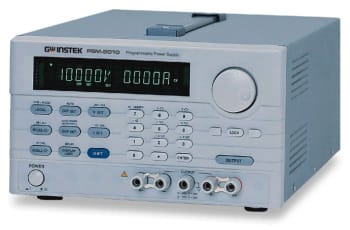

The PSM-Series are single output / dual range, 120 or 200W, programmable linear DC power supplies. OVP, OCP, OTP, and, output On/Off control protect the PSM-Series and their load from unexpected conditions. High resolution, high regulation, and low ripple are maintained at 1mV/1mA, 0.01%, and <350 Vrms, respectively. Operation and configuration are simplified with a digital interface and a clear LCD display. Standard features include store/recall output memories, automatic stepping with timers for continuous testing and self-testing, and software calibration features to reduce maintenance efforts. SCPI programming, LabVIEW drivers, RS-232C, and GPIB interfaces enable easy automated test system integration and remote control. The PSM-Series are an ideal choice for high precision applications such as QA verification and product development.

Other Features:

• Wheel knob for Fine and Coarse adjustment and item selection.
• Both front and rear panels are equipped with Remote voltage sensing.
• The protection function of output ON/OFF and Over Voltage/Current/ Temperature protection.
• Intelligent control fan (Vary with different output power).
• Warning signal by the built-in Buzzer.
• A programmed calibration procedure.
• The brand new panel design and the 1/2 rack size reduction volume design.
• Save and Recall function of 100 groups setting and proceed together with auto operation can achieve the purpose of auto test.
• IEEE-488.2 and SCPI compatible command setting.
• Correspond to many safety regulations
