Instek GPS-1850D 0-18V, 0-5A DIGITAL Power Supply

Name: Instek GPS-1850D 0-18V, 0-5A DIGITAL Power Supply
Brand: Instek
SKU: InstekGPS-1850D
Price: 188.10 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: Instek GPS-1850D

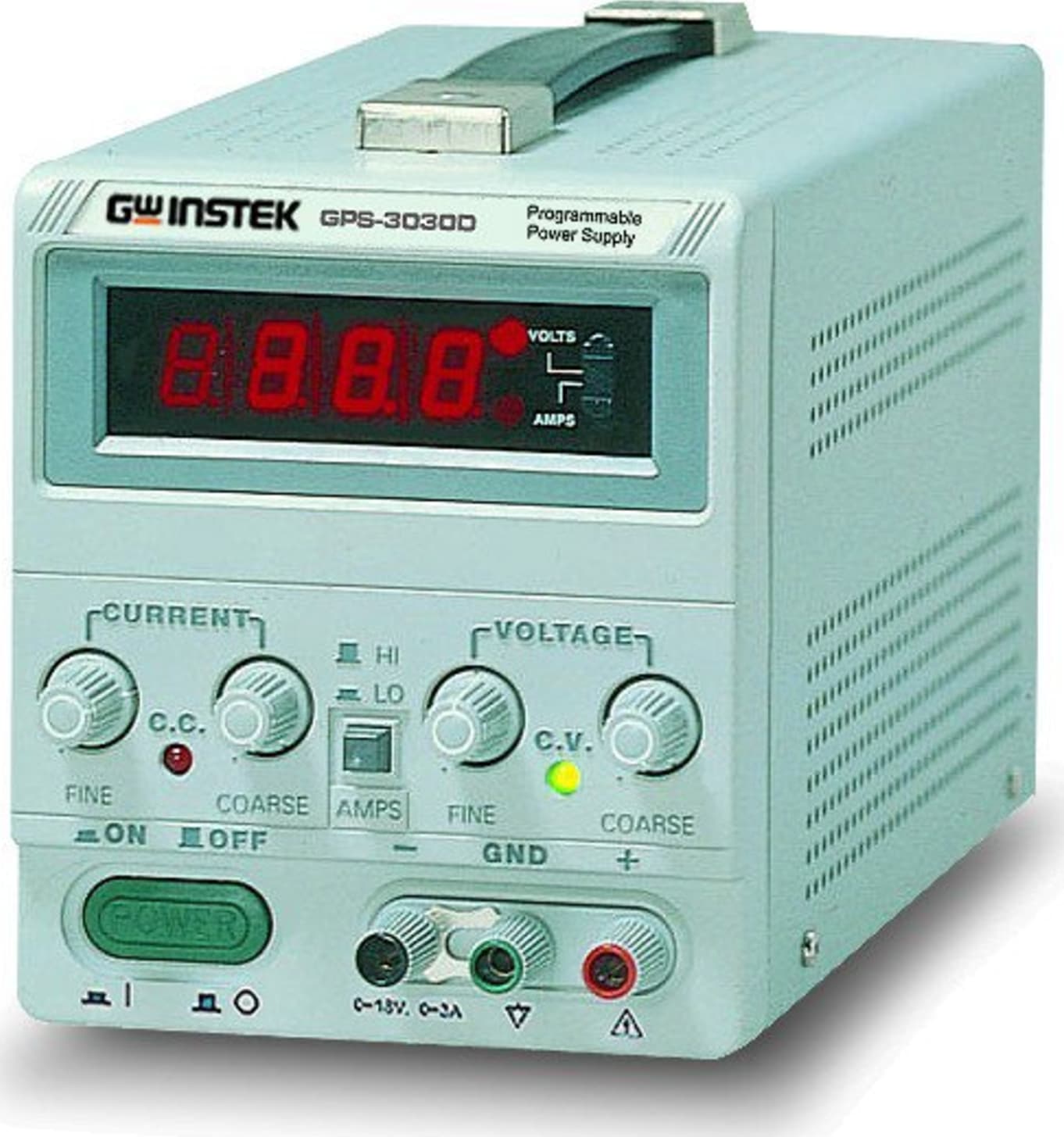

Instek GPS Series Linear D.C. Power Supply

Compare

90W DC Linear Power Supply 0-18V, 0-5A DIGITAL

0-5A DIGITAL
Light and Compact Design
0.01% High Regulation
Constant Voltage and Constant Current Operation
Remote Control for External Programmability
Internal Select for Continuous or Dynamic Load
Low Ripple and Noise
Overload and Reverse Polarity Protection
Series or Parallel Operation

View Product Details

List Price: $209.00

Your Price: $188.10

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Instek GPS-1850D 90W DC Linear Power Supply 0-18V, 0-5A DIGITAL	Instek GPS-3030D 90W DC Linear Power Supply 0-30V, 0-3A DIGITAL Display	Instek GPS-1830D 54W DC Linear Power Supply 0-18V, 0-3A DIGITAL Display	Instek GPS-3030DD 90W DC Linear Power Supply 0-30V, 0-3A, DUAL DISPLAY, DIGITAL
Price
In Stock
Outputs	Single	Single	Single	Single
Voltage Output 1	Variable	Variable	Variable	Variable
Max Voltage Output 1	18 V	30 V	18 V	30 V
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Instek GPS-1850D Accessories

Choose a Category

for the Instek GPS-1850D

Instek GTL-105A (3A), for GPS/GPR/GPC/PPS/PPT/PST

Catalog: GTL-105A

(0)

In Stock!

Add to Cart

Instek GTL-104A (4A-10A), for GPS/GPR/GPC/PPS/PPT/PSP/PSM

Catalog: GTL-104A

(0)

In Stock!

Add to Cart

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(23)

In Stock!

Add to Cart

Instek GPS-1850D 0-18V, 0-5A DIGITAL Power Supply

90W Linear D.C. Power Supply

The GPS-Series includes both analog and digital display meters with varying power outputs.
Features overload and reverse polarity protection as well as high regulation and low ripple/noise that are maintained at 0.01% and < 1mVrms, respectively.
Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.

The regulated DC power supply have been designed to provide the most often required in the laboratory, schools and production lines. The output voltage is continuously adjustable between 0 to rating voltage in one range by means of coarse and fine potentiometer, the load current may have any value from 0 to rating current and adjusted by means of a coarse and fine potentiometer. Both outputs can accurately read in voltmeter and ammeter.

Both stability and ripple are extremely good to meet the requirements of modern circuit design. The unit can be used as either constant voltage or current source.

For applications when output greater than V or A is need, the unit can be connected up in a series or parallel.
For applications in audio production lines, the continuous or dynamic load internal selectable.

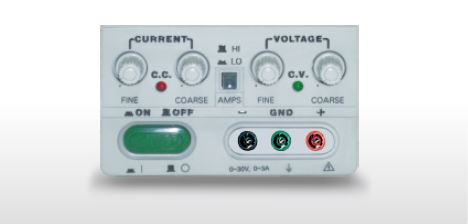

European Type Jack Terminal
for GPS-3030/GPS-3030D/GPS-3030DD

	GPS-1850	GPS-3030	GPS-6010	GPS-1830D	GPS-1850D	GPS-3030D	GPS-3030DD
DC OUTPUT
Output Volts (V)	0 ~ 18	0 ~ 30	0 ~ 60	0 ~ 18	0 ~ 18	0 ~ 30	0 ~ 30
Output Amps (A)	0 ~ 5	0 ~ 3	0 ~ 1	0 ~ 3	0 ~ 5	0 ~ 3	0 ~ 3
CONSTANT VOLTAGE OPERATION
Regulation	Line regulation≤0.01% + 3mV Load regulation≤0.01% + 3mV (rating current?3A) Load regulation≤0.01% + 5mV (rating current > 3A)
Ripple & Noise	≤0.5mVrms 5Hz ~ 1MHz (rating current?3A) ≤1mVrms 5Hz ~ 1MHz (rating current > 3A)
Recovery Time	≤100µS ( 50% load change, minimum load 0.5A )
Temp. Coefficient	≤300ppm/°C
Output range	0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Regulation	Line regulation≤0.2% + 3mA Load regulation≤0.2% + 3mA
Regulation	≤3mArms
Output Range	0 to rating current continuously adjustable (Hi/Lo range switchable)
METER
Analog	V-meter and I-meter 2.5 class Dimensions 50 x 50 mm
Digital	31/2 digital 0.5" LED display (3030D) 31/2 digital 0.39" LED display (3030DD) Accuracy ±(0.5%of rdg + 2 digits)
INSULATION
Chassis and Terminal	20MΩ or above (DC 500V)
Chassis and AC Cord	30MΩ or above (DC 500V)
POWER SOURCE
	AC 100V/120V/220V/240V±10%, 50/60Hz
ACCESSORIES
	User manual x 1 Power cord x 1 Test lead GTL-105 x 1 European test lead GTL-201A (optional)
DIMENSIONS & WEIGHT
	128(W) x 145(H) x 285(D)mm Approx. 5kg

Power Supplies/DC Power Supplies Template
Outputs	Single
Voltage Output 1	Variable
Max Voltage Output 1	18 V
Programmable	Yes
Current Output 1	Variable
Max Current Output 1	5 A
Meter Type	Digital
Switching	No
Linear/Switching	Linear
Constant current/voltage	Yes
Test Equipment General Attributes
Unique Features	0.01% High Regulation Internal Select for Continuous or Dynamic Load Overload and Reverse Polarity Protection Series or Parallel Operation
Warranty	2 YEARS
Product Weight	5 KILOS (11.02 LBS)
Product Height	285 MM (11.22 IN)
Product Length	128 MM (5.04 IN)
Product Width	145 MM (5.71 IN)
Data Logging	No
HTS/Schedule B Number	8504.40.6007
ECCN Number	3A992.a
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
