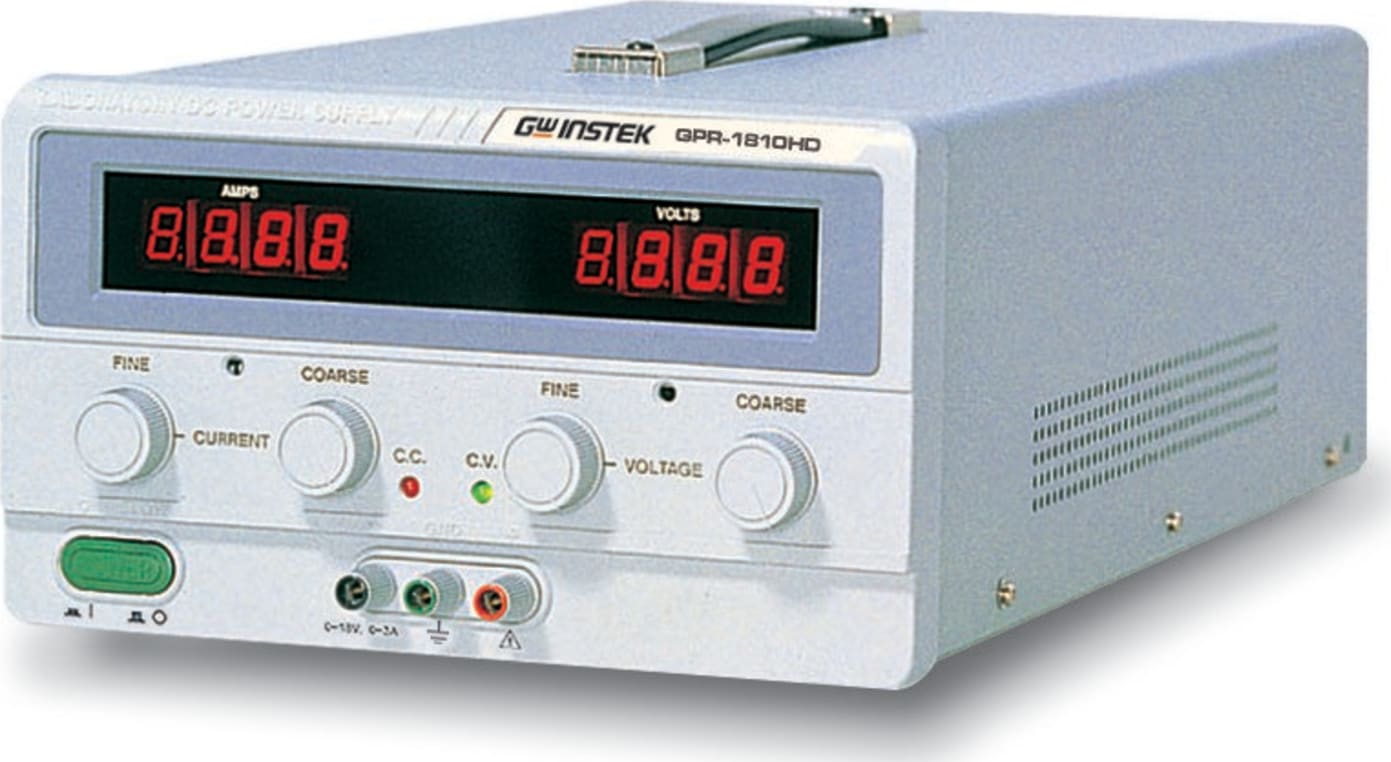

Instek GPR-1810HD Power Supply

Name: Instek GPR-1810HD Power Supply
Brand: Instek
SKU: InstekGPR-1810HD
Price: 351.00 USD
Availability: InStock

0 reviews | Model: Instek GPR-1810HD

Compare

180W DC Linear Power Supply 0-18V, 0-10A DIGITAL

0.01% High Resolution
Constant Voltage and Constant Current Operation
Internal Select for Continuous or Dynamic Load
Low Ripple and Noise
Overload and Reverse Polarity Protection
3½ Digit 0.5" LED Displays Showing Voltage and Current

Model	Output Volts (V)	Output Amps (A)
GPR-1810HD	0 ~ 18	0 ~ 10
GPR-3060D	0 ~ 30	0 ~ 6
GPR-6030D	0 ~ 60	0 ~ 3

View Product Details

Your Price: $351.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Instek GPR-1810HD 180W DC Linear Power Supply 0-18V, 0-10A DIGITAL
Price
In Stock
Outputs	Single
Voltage Output 1	Variable
Max Voltage Output 1	18 V
Compare	Add to compare

Recommended for you

Instek GPR-1810HD Accessories

Choose a Category

Power Supply Kits

for the Instek GPR-1810HD

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

The GPR-M Series are single output, 180W, linear DC power supplies, featuring all the same functions as the GPR-H Series but for lower power demands. Like the GPR-H Series, the GPR-M Series are suitable for high-end precision bench top applications. Low load and line regulation for both constant voltage and constant current mode ensure reliable, predictable output. Overload and reverse polarity protection as well as internal selection for dynamic or constant load are standard.

DC OUTPUT
	Output Volts (V)	Output Amps (A)
GPR-1810HD	0 ~ 18	0 ~ 10
GPR-3060D	0 ~ 30	0 ~ 6
GPR-6030D	0 ~ 60	0 ~ 3
CONSTANT VOLTAGE OPERATION
Regulation	Line regulation < 0.01% + 3mV Load regulation <0.01% + 5mV (<10A) Load regulation < 0.02% + 5mV (>10A)
Ripple & Noise	< 1mVrms (5Hz ~ 1MHz)
Recovery Time	< 100μS ( 50% load change, minimum load 0.5A )
Output range	0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Regulation	Line regulation < 0.2% + 3mA Load regulation <0.2% + 3mA
Ripple Current	< 3mArms
Output Range	0 to rating current continuously adjustable
METER
Type	3 1/2 Digits 0.5" LED Display
Accuracy	±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal	20MΩ or above (DC 500V)
Chassis and AC Cord	30MΩ or above (DC 500V)
POWER SOURCE
AC 100V/120V/220V/240V±10%, 50/60Hz
ACCESSORIES
User manual x 1 Power cord x 1 Test Lead GTL-104 x 1
DIMENSIONS & WEIGHT
255(W) x 145(H) x 335(D)mm Approx. 11.5kg

Tech Specs

Power Supplies/DC Power Supplies Template
Outputs	Single Outputs Output Watts= 180W
Voltage Output 1	Variable
Max Voltage Output 1	18 V
Programmable	No
Current Output 1	Variable
Max Current Output 1	10 A
Meter Type	Digital
Switching	Yes
Linear/Switching	Switching
Constant current/voltage	Yes
Test Equipment General Attributes
Product Weight	11.5 KILOS (25.35 LBS)
Product Height	335 MM (13.19 IN)
Product Length	255 MM (10.04 IN)
Product Width	145 MM (5.71 IN)
Data Logging	No
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
Shipping Height	10.00 IN
Shipping Length	17.50 IN
Shipping Width	14.25 IN
