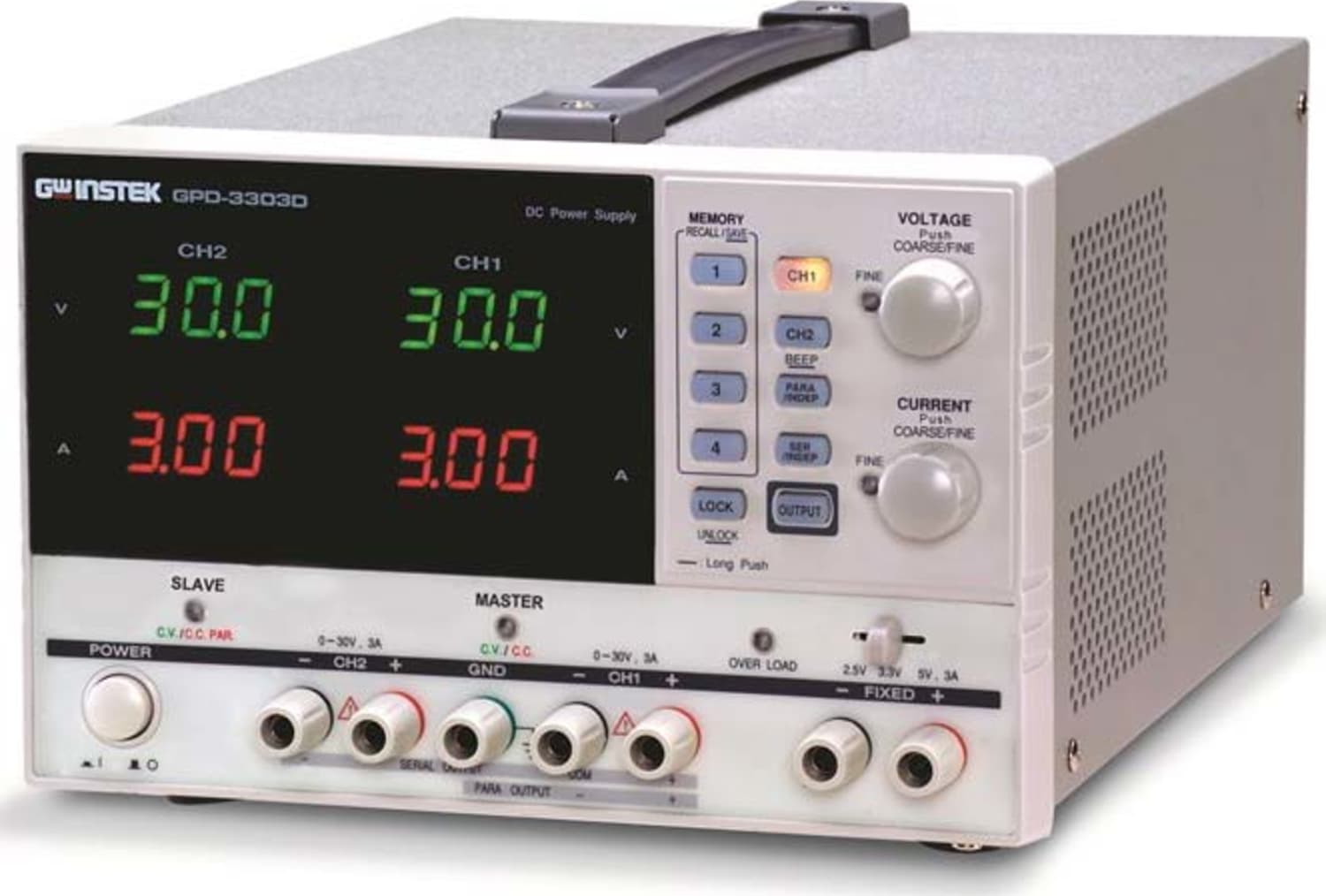

Instek GPD-3303D Triple-Output Linear D.C. Power Supply

Name: Instek GPD-3303D Triple-Output Linear D.C. Power Supply
Brand: Instek
SKU: InstekGPD-3303D
Price: 567.90 USD
Availability: InStock
Rating: 4.63 (8 reviews)

4.5 (8 Reviews) | Model: Instek GPD-3303D

Compare

0-30Vx2,0-3Ax2; 2.5V/3.3V/5V,3A, USB; 2 3/4 digit

Three Independent Output : 30V/3A x 2, 2.5V/3.3V/5V/3A x 1
4 LED Display Sets : 3 Digits After Decimal Point
Minimum Resolution : 100mV/10mA
Digital Panel Control (Rotary Encoder Switch, Rubber Key With Indicator)
Key-Lock
User-Friendly Operation, Coarse/Fine Voltage Control
4 Panel Settings Save/Recall (Plus Factory Settings Recall)
Output ON/OFF
Tracking Series and Parallel Mode
USB Device for Remote Control (Baud Rate 115200 bps Maximum)
Free downloadable PC software
Smart Cooling Fan Achieving Low Noise
Warning Buzzer
Light-Weight and Compact Design

View Product Details

List Price: $631.00

Your Price: $567.90

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Instek GPD-3303D 0-30Vx2,0-3Ax2; 2.5V/3.3V/5V,3A, USB; 2 3/4 digit	Instek GPD-3303S 0-30Vx2,0-3Ax2; 2.5V/3.3V/5V,3A, USB; 4 3/4 digit	Instek GPD-4303S 195W, 4ch Output DC Programmable Power Supply	Instek GPD-2303S 180W, 2ch Output DC Programmable Power Supply
Rating	(8)	(2)	(1)	(4)
Price
In Stock
Outputs	Triple	Triple	Quad	Double
Voltage Output 1	Variable	Variable	Variable	Variable
Max Voltage Output 1	30 V	30 V	30 V	30 V
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Instek GPD-3303D Accessories

Choose a Category

Power Supply Kits

for the Instek GPD-3303D

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(23)

In Stock!

Add to Cart

Instek GPD-3303D Triple-Output Linear D.C. Power Supply

Constant Voltage / Constant Current operation
Tracking Series / Tracking parallel operation
Output On/Off control
Digital panel control
4 sets of panel setup save/recall
Software calibration
Key lock function

MULTIPLE OUTPUT PROGRAMMABLE LINEAR D.C. POWER SUPPLY

The GPD-Series contain the superior technology and high quality which CW lnstek had established through its long history of power supply design and manufacturing. The GPD-Series offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally, the GPD-Series provide easy operation, a wide selection of panel settings and the most important for a reasonable price. All these features make the GPD-Series the most promising new comer in the power supply market.

High Resolution

With 'lmV/1 mA (for GPD-23035/33035/43035) high resolution and coarse/fine volume control the GPD-Series, guarantees clean and stable output. Using the GPD-Series you can easily simulate the device under test‘s accurate behavior against small changes in voltage or current, which is impossible when using a low resolution power supply.

Tracking Series and Parallel Function

Tracking series and parallel function allows you to use the GPD-Series in wide range of applications. The tracking series mode guarantees higher output voltage, while the tracking parallel mode guarantees higher output current.

Convenience Functions

The knobs are digitally controlled, allowing fine or coarse volume setting. The key lock feature locks panel operations, preventing accidental change of the settings which might lead damaging for the equipment.

4 Sets of Save / Recall

The GPD-Series can save and recall panel settings, these feature which can not offered by general power supplies. You can quickly select a panel setting from four memory sets without manual configuration.

USB Remote Control

The USB device port in the C-PD-Series allows you to remotely control the power supply according to your application needs.

FUNCTION FEATURES

Bright LED display shows settings or actual level of output
The independent CH3 output offers three commonly used voltage settings (C-PD-33035/3303D only)
C.V./C.C. modes are clearly indicated in different colors
Smart cooling fan control offers a well balanced cooling mechanism, ensuring quiet operation
The tracking series and parallel mode can be selected with a single touch
Indicators embedded in the keys provide an instant view of the power supply status; the Key Lock feature prevents improper operation

APPLICATIONS

Laboratories and Educational Facilities
Product Testing and Quality Assurance
Service Operation and Post-Sales Support
Product Development and Debugging

DC Output
	CH1, CH2	CH3
Voltage	0~30V	2.5V/3.3V/5V Fixed
Current	0~3A	3A Max.
Tracking Series Voltage	0~60V
Tracking Parallel Current	0~6A

Constant Voltage Operation
Line Regulation	< 0.01% + 3mV
Load Regulation	< 0.01% + 3mV (rating current <3A) < 0.02% + 5mV (rating current >3A)
Ripple & Noise	< 1mVrms 5Hz ~ 1MHz
Recovery Time	< 100µS ( 50% Load change, Minimum load 0.5A )
Temp. Coefficient	< 300ppm/°C
Output Range	0 to rating voltage continously adjustable
Constant Current Operation
Line Regulation	< 0.2% + 3mA
Load Regulation	< 0.2% + 3mA
Ripple Current	< 3mArms
Output Range	0 to rating current continously adjustable
Tracking Operation
Parallel Regulation	Line Regulation < 0.01% + 3mV Load Regulation < 0.01% + 3mV (rating current <3A) Load Regulation < 0.02% + 5mV (rating current >3A)
Series Regulation	Line Regulation < 0.01% + 5mV Load Regulation < 300mV Tracking Error < 0.5% ± 10mV (10 ~ 30V no load) Tracking Error < 0.5% ± 30mV (0 ~ 9.99V no load) (With load add load regulation < 300mV)
CH3 Operation
Output Voltage	±2.5V/3.3V/5V ±8%
Output Current	3A
Line Regulation (25±5°C)	< 5mV
Load Regulation (25±5°C)	< 15mV
Ripple & Noise	< 2mVrms
Meter
Display	4+3/4 Digits 0.4" LED Display
Voltage Resolution	100 mV
Current Resolution	10 mA
Program Accuracy (25±5°C)	Voltage: ±(0.05% of RDG + 2 digits) Current: ±(0.05% of RDG + 2 digits)
Readback Accuracy (25±5°C)	Voltage: ±(0.05% of RDG + 2 digits) Current: ±(0.05% of RDG + 2 digits)
Key Lock
	Yes
Memory Save/Recall
	4 sets
Power Source
	AC 100V/120V/220V/230V ±10%, 50/60Hz
Accessories
	User manual x 1 Power cord x 1 Test lead GTL-104 x 2, GTL-105 x 1
Dimensions & Weight
	210(W) x 130(H) x 265(D)mm, Approx. 7kg

Comparison Chart
Technical Data	Models
Technical Data	GPD-3303S	GPD-3303D
CH1/CH2 Output	0~30V, 0~3A	0~30V, 0~3A
Resolution	Voltage : 1mV Current : 1mA	Voltage : 100mV Current : 10mA
CH3 Output	5V, 3.3V, 2.5V(selectable)/3A fixed	5V, 3.3V, 2.5V(selectable)/3A fixed
CH3 Overload Indicator
Output ON/OFF control
Digital Panel Control
Memory Save/Recall	4 sets for front panel setting	4 sets for front panel setting
Key Lock Function
Fan Control	Control by load	Control by load
LED Display	2 sets of digit(V), 4 digit (A)	2 sets of 3 digit(V,A)
USB
Voltage Accuracy	± (0.03% of RDG + 10 digits	± (0.5% of RDG + 2 digits)
Current Accuracy	± (0.3% of RDG + 10 digits	± (0.5% of RDG + 2 digits)
Dimensions	285 x 210 x 146	265 x 255 x 145

Power Supplies/DC Power Supplies Template
Outputs	Triple
Voltage Output 1	Variable
Max Voltage Output 1	30 V
Programmable	Yes
Current Output 1	Variable
Max Current Output 1	3 A
Voltage Output 2	Variable
Max Voltage Output 2	30 V
Current Output 2	Variable
Max Current Output 2	3 A
Voltage Output 3	Fixed
Max Voltage Output 3	5 V
Current Output 3	Variable
Max Current Output 3	3 A
Meter Type	Digital
Switching	No
Linear/Switching	Linear
Max Display Resolution Current	10 mA
Max Display Resolution Voltage	100 mV
Constant current/voltage	Yes
Test Equipment General Attributes
Unique Features	Resolution: Voltage: 100mV Current: 10mA 195 Watt
Interfaces I/O	USB
Product Weight	7 KILOS (15.43 LBS)
Product Height	265 MM (10.43 IN)
Product Length	210 MM (8.27 IN)
Product Width	130 MM (5.12 IN)
Shipping Weight	17 LBS
Data Logging	Yes
HTS/Schedule B Number	8504.40.9530
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
Shipping Height	9.00 IN
Shipping Length	14.00 IN
Shipping Width	11.50 IN
Other Information	Line Regulation: 0.01% + 3mV Load Regulation: 0.01% + 3mV (rating current 3A) 0.02% + 5mV (rating current 3A) Ripple & Noise: 1mVrms 5Hz ~ 1MHz Recovery Time: 100µS ( 50% Load change, Minimum load 0.5A ) Temp. Coefficient: 300ppm/°C Output Range: 0 to rating voltage continously adjustable Line Regulation: 0.2% + 3mA Load Regulation: 0.2% + 3mA Ripple Current: 3mArms Output Range: 0 to rating current continously adjustable Parallel Regulation: Line Regulation 0.01% + 3mV Load Regulation 0.01% + 3mV (rating current 3A) Load Regulation 0.02% + 5mV (rating current 3A) Series Regulation: Line Regulation 0.01% + 5mV Load Regulation 300mV Tracking Error 0.5% ± 10mV (10 ~ 30V no load) Tracking Error 0.5% ± 30mV (0 ~ 9.99V no load) (With load add load regulation 300mV) Output Voltage: ±2.5V/3.3V/5V ±8% Output Current: 3A Line Regulation (25?5?C): 5mV Load Regulation (25?5?C): 15mV Ripple & Noise: 2mVrms Display: 4+3/4 Digits 0.4" LED Display Voltage Resolution: 100 mV Current Resolution: 10 mA Program Accuracy (25?5?C): Voltage: ±(0.05% of RDG + 2 digits) Current: ±(0.05% of RDG + 2 digits) Readback Accuracy (25?5?C): Voltage: ±(0.05% of RDG + 2 digits) Current: ±(0.05% of RDG + 2 digits)

4.5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 8 reviews

Most Helpful First | Newest First

Recommend to a Friend

Exactly What was Needed

5.0

~1 week PS is doing exactly what is needed - 2x adj. and 2.5/3.3/5.0 with overall USB control. Not sure on the knob beefs below; seems that the rate of adjustment of fine knob is a factor (just turn slowly and one gets perpetual 0.1V increments in either direction). One minor comment is that connecting the unit with USB does not seem to elicit the usb - yes/locked display response as indicated in the manual (using USB 1.0 cable, or ID line not being OTG compatible on port or cable?), but *IDN? and all other commands work fine along with the Locked feature - CR/LF on terminal setup ... Dr. Mike

Verified Purchase Dr. Mike on Jun 21, 2021

Knob adjustment unusable

3.0

Decent power output, relatively quiet. - Unusable knobs. Turn the voltage knob in "Fine" mode 1 click, and get 0.1 V change. Turn the knob a couple of clicks, and change is several volts! A sloppy programming on Instek's part, apparently. They have no intention of fixing it, as problem persisted for at least 4 firmware revisions (1.04 through 1.07). Do not purchase if you rely on knob adjustment. Will do fine if controlled via UART commands only.

Oleg on Oct 06, 2017

Recommend to a Friend

very good

5.0

I am most satisfied with the product purchased from Tequipment.

canada buyer on Apr 14, 2017

Recommend to a Friend

most satisfied

5.0

Good price and good service. Sellers takes care of custom clearance. Very convenient to customers from Canada.

Anonymous on Jan 28, 2017

Recommend to a Friend

Power Supplies

5.0

Quick delivery and good equipment

Verified Purchase redcreek on Sep 11, 2014

Recommend to a Friend

Nice power supply

5.0

Very nice unit. Good features for the price. It isn't as loud as my other Instek. Hard to beat this unit for the price.

Technosteve on Sep 11, 2014

Recommend to a Friend

GW InstekGPD-3303D Power Supply

5.0

I just received this item a few days and am really impressed. The USB interface and LabVIEW support are easy to implement. Despite the low cost, it appears to be very solid and have a good build quality (time will tell). So, so far, I can recommend it.

Verified Purchase Paul Bosomworth on Apr 11, 2014

Recommend to a Friend

Power poweer everywhere

4.0

multiple supplies, dual displays, at that price, what's not to like. We needed to run the supplies in series for a student lab. it worked like a charm.

Verified Purchase Weld0n on Jan 16, 2014
