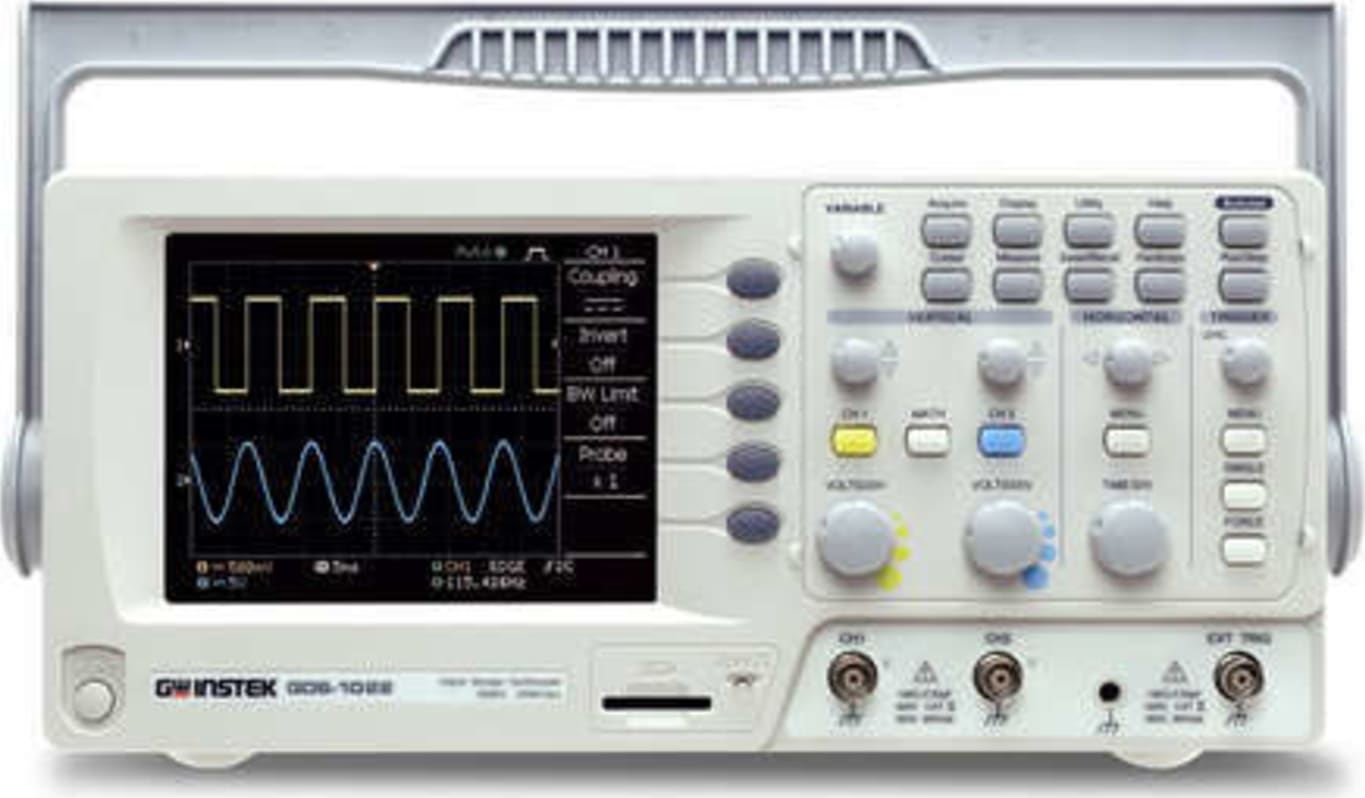

Vertical |
|
Channels |
2 |
|
Bandwidth |
DC ~ 40MHz (-3dB) |
|
Rise Time |
<8.75ns Approx. |
|
Sensitivity |
2mV/div ~ 5V/div (1-2-5 increments) |
|
Accuracy |
?(3% x |Readout|+0.1 div + 1mV) |
|
Input Coupling |
AC, DC & Ground |
|
Input Impedance |
1M?2%, ~16pF |
|
Polarity |
Normal & Invert |
|
Maximum Input |
300V (DC+AC peak), CATII |
|
Waveform Signal Process |
+ , - , FFT |
|
Offset Range |
2mV/div ~ 50mV/div : ?0.4V
100mV/div ~ 500mV/div : ?4V
1V/div ~ 5V/div : ?40V |
|
Bandwidth Limit |
20MHz (-3dB) |
|
Trigger |
|
Sources |
CH1 , CH2 , Line , EXT |
|
Modes |
Auto, Normal, Single, TV, Edge, Pulse Width |
|
Coupling |
AC , DC , LF rej. , HF rej. , Noise rej. |
|
Sensitivity |
DC ~ 25MHz : Approx. 0.5div or 5mV |
|
Ext Trigger |
|
Range |
?15V |
|
Sensitivity |
DC ~ 30MHz : ~ 50mV
30M ~ 60MHz : ~100mV |
|
Input Impedance |
1MΩ?2% , ~ 16pF |
|
Maximum Input |
300V (DC AC peak) , CATII |
|
Horizontal |
|
Range |
1ns/div ~ 10s/div (1-2-5 increments); ROLL : 250ms/div ~ 10s/div |
|
Modes |
Main, Window, Window Zoom, Roll, X-Y |
|
Accuracy |
?0.01% |
|
Pre-Trigger |
10 div maximum |
|
Post-Trigger |
1000 div |
|
X-Y Mode |
|
X-Axis Input |
Channel 1 |
|
Y-Axis Input |
Channel 2 |
|
Phase Shift |
?3? at 100kHz |
|
Signal Aquisition |
|
Real-Time Sample Rate |
250MSa/s maximum |
|
Equivalent Sample Rate |
25GSa/s maximum |
|
Vertical Resolution |
8 Bits |
|
Record Length |
4K Dots maximum |
|
Acquisition Mode |
Normal, Peak Detect, Average |
|
Peak Detection |
10ns (500ns/div ~ 10s/div) |
|
Average |
2 , 4 , 8 , 16 , 32 , 64 , 128 , 256 |
|
Cursors & Measurement |
|
Voltage Measurement |
Vpp , Vamp , V avg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/Overshoot , Fall Preshoot/Overshoot |
|
Time Measurement |
Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle |
|
Cursors Measurement |
Voltage difference between cursors (ΔV) |
|
Time difference between cursors (ΔT) |
|
Auto Counter |
Resolution : 6 digits
Accuracy : ?2%
Signal Source: All available trigger source except the Video trigger mode |
|
Control Panel Function |
|
Autoset |
Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level |
|
Save Setup |
Up to 15 sets of measurement conditions |
|
Save Waveform |
15 sets of waveform |
|
Display |
|
TFT LCD Type |
5.6 inch |
|
Display Resolution |
234 (Vertically) x 320 (Horizontally) Dots |
|
Display Graticule |
8 x 10 divisions |
|
Display Brightness |
Adjustable |
|
Interface |
|
USB Slave Connector |
USB1.1 & 2.0 full speed compatible (printers and flash disk not supported) |
|
SD Card Slot |
Image (BMP), waveform data (CSV), and setup (SET) |
|
Power Source |
|
Line Voltage Range |
AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection |
|
Miscellaneous |
|
Multi-Language Menu |
Available |
|
Online Help |
Available |
|
Accessories |
User manual x 1
Power Cord x 1
GTP-060A-2 Probe(10:1/1:1) x 2 |
|
Dimensions & Weight |
310(W) x 142(H) x 140(D)mm
Approx. 2.5kg |
|
Warranty |
Limited Lifetime |
