Instek GDM-8341 50,000 Counts Dual Measurement Multimeter with USB Device

Name: Instek GDM-8341 50,000 Counts Dual Measurement Multimeter with USB Device
Brand: Instek
SKU: InstekGDM-8341
Price: 457.20 USD
Availability: InStock
Rating: 5.00 (7 reviews)

5 (7 Reviews) | Model: Instek GDM-8341

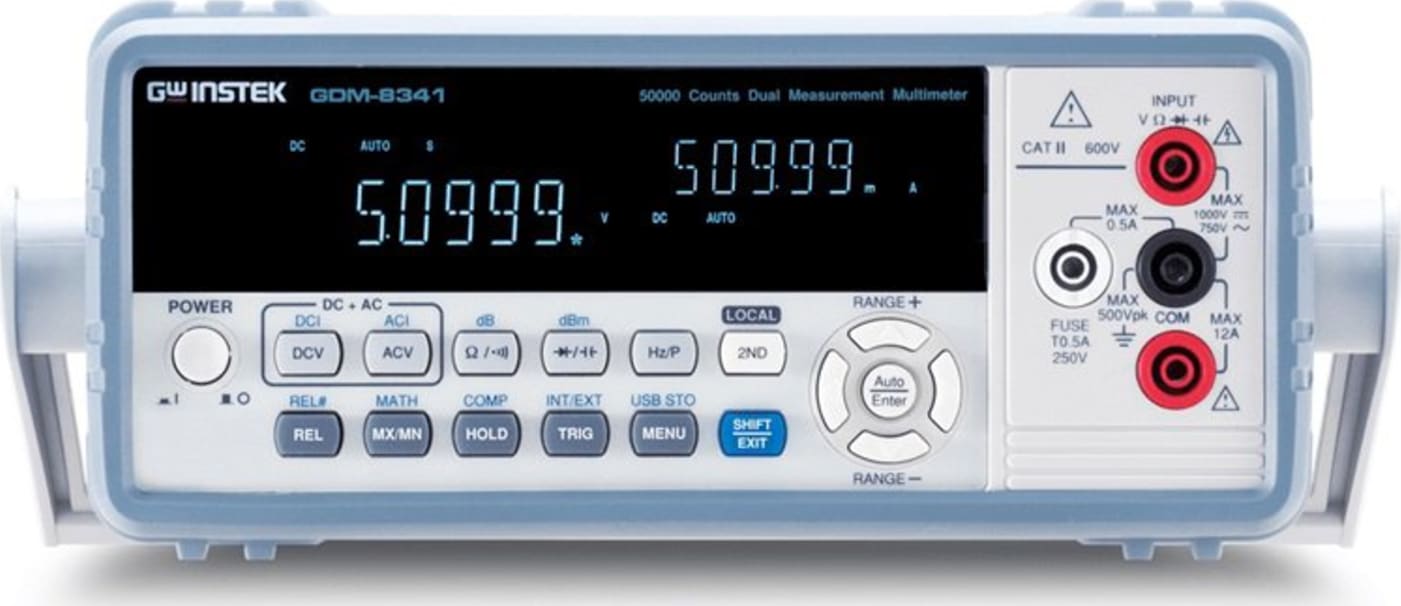

Instek GDM-8341 50,000 Counts Digit Dual Measurement Multimeter

Compare

Bench DMM, 50000 count DMM with USB Device [replaces GDM-8245]

50,000 counts, VFD display
Dual measurement/Dual display
Selectable measurement speeds, the maximum: 40 Readings/s for DCV
The basic precision of DC voltage: 0.02%
Auto/manual Ranging
True RMS (AC,AC+DC) measurements
11 different measurement functions
Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm

View Product Details

List Price: $508.00

Your Price: $457.20

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Instek GDM-8341 Bench DMM, 50000 count DMM with USB Device [replaces GDM-8245]	Instek GDM-8342GP Bench DMM, 50000 count DMM with USB Device/Host/GPIB	Instek GDM-8342 Bench DMM, 50000 count DMM with USB Device/Host [replaces GDM-8246]
Price
In Stock
Style	Bench	Bench	Bench
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Instek GDM-8341 Accessories

Choose a Category

for the Instek GDM-8341

Instek GTL-246 USB Cable, USB 2.0, A-B Type, 1200mm

Catalog: GTL-246

(1)

In Stock!

Add to Cart

Instek GTL-248 GPIB Cable, Double Shielded, 2000mm

Catalog: GTL-248

(0)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Cal Test CT2700 HV DMM Probe, 40KV DC - 1.0m, 4mm Shth P

Catalog: CT2700

(1)

In Stock!

Add to Cart

Instek GTL-251 GPIB-USB [high speed]

Catalog: GTL-251

(0)

In Stock!

Add to Cart

Instek GTL-205 Temp probe adapter w/thermocouple type K GDM-8261A/8255A/8351/834x Series

Catalog: GTL-205

(0)

In Stock!

Add to Cart

Instek GDM-8341 50,000 Counts Dual Measurement Multimeter

Portable, dual - display digital multimeter suitable for a wide range of applications, such as production testing, research, and field verification.
DCV accuracy: 0.0 2 %
High current range: 10A
High Voltage range: 1000V
High ACV frequency response: 1 00kHz

GW INSTEK rolls out the new generation Dual Measurement Multimeter -- the GDM-834x series, which has two models -GDM-8341 and GDM 8342. Its exceptional features include 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, lucid data observation, and the convenience to connect with the personal computer. The GDM-834x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance and temperature measurement functions. Furthermore, the GDM-834x series also provides many auxiliary functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.

With respect to storing and retrieving data, the GDM-834x series has two methods to offer: first, the USB flash drive storage function --- operating alone without connecting with a computer; second, USB interface (virtual COM port) and optional GPIB interface (must be installed in factory) for automatic measurement system users to conveniently save and retrieve data.

Unrestrained Storage and Connection

Data storage no longer be bound by transmission wire

Convenient USB flash drive storage function

The major distinction between GDM-8342 and products in the same category is that GDM-8342 provides USB flash drive storage function, which allows users to conveniently save data into a USB flash drive through a simple and proper setting. This unique function, different from other digital multimeters which must first save data into its own internal memory then transfer out the file, or connect multimeters with a computer to retrieve data, not only saves operational time but also cuts down the cost and time of developing programs.

The USB flash drive storage function incorporates two modes -- basic and advanced, which can be selected from the front panel. When the basic mode is on, data will be saved into an automatically established new folder (time of established file will be determined by system default) and the starting time of data logging will use a fixed time marker (00hr: 00min: 00sec). For advanced mode, users can designate a file path to save data or establish a new folder and the starting time of data logging is determined by users’ inputs (for instance: 23hr: 45min: 32sec). The number of data files can be saved in one second is determined by the speed of selected function.

The USB storage function allows each flash drive to establish 100 folders (GW000 ~ GW099). Each folder has a capacity of saving 5,000,000 data files (which are divided into 100 sub-file names, therefore, each sub-file name can save 50,000 data files. Take folder GW000 as an example, internal file names are GW000_00 ~ GW00_99). The storage format is CSV, which can open files and conduct file analysis by existing tools. (such as Microsoft Excel)

Selectable measurement speeds

The GDM-834x series has three selectable measurement speeds- fast/medium/slow. For instance, the DC voltage measurement can reach 40 readings per second on the fast mode, which can maximize the effectiveness of each measurement.

Various measurement items and functionalities

The GDM-834x series provides various measurement items and functionalities compared with that of the products of same category. There are twelve major measurement items of this series including AC voltage/current, DC voltage/current, AC+DC voltage/current, two-wired resistance, capacitance, Frequency/ period, diode and continuity beeper test. Temperature measurement is an optional function for GDM-8342. Many auxiliary functions, such as maximum/minimum values, reading hold, relative values, dB, dBm, algorithms (MX+B, 1/X, Ref%) and comparison, are designed to reinforce the major measurement items to satisfy users’ daily working requirements.

Dual measurement/dual display

The GDM-834x series, similar to GW INSTEK’s 6 1/2 and 5 1/2 digits multimeters, equips with dual display to support the possible combinations of measurement items. For example, the DC voltage and current or DC voltage with AC element will appear when monitoring components of test wiring. The results of each measurement will simultaneously appear on different displays that not only save users’ precious time but also exempt users from the trouble of selecting displays while reading measurement results.

Command compatibility & Free software-remote control and data retrieving

For GDM-8246 users, the GDM-834x series also provides a complete command compatibility (SYSTEM\LANG\COMP). Users can replace machines through the simple setting of the GDM-834x series without worrying the extra cost to modify the existing program and the delay of production time.

The GDM-834x provides free USB protocol connection software- Excel ADDins for users’ easy access. After installing the software, Microsoft Excel will establish Marco for users to directly control the setting of the GDM-834x series to record the results of the measurements. The recorded data will be synchronously transformed into graphic displays via Excel drawing function that not only eliminates the cost and time of developing programs but also overcomes the compatibility issue of different programming languages.

Function	Range (*2)	Resolution	Input Resistance etc.	Accuracy(*1) 1 Year 23°C±5°C
DC Voltage	500.00 mV	10μV	10MΩ or >10GΩ	0.02 + 4
	5.0000 V	100μV	10MΩ or >10GΩ	0.02 + 4
	50.000 V	1mV	11.11MΩ	0.02 + 4
	500.00 V	10mV	10.1MΩ	0.02 + 4
	1000.0 V	100mV	10MΩ	0.02 + 4
Resistance	500.00 Ω	10mΩ	0.83mA	0.10 + 5 (*3)
	5.0000 kΩ	100mΩ	0.83mA	0.10 + 3 (*3)
	50.000 kΩ	1Ω	83μA	0.10 + 3
	500.00 kΩ	10Ω	8.3μA	0.10 + 3
	5.0000 MΩ	100Ω	830nA	0.10 + 3
	50.000 MΩ	1kΩ	560nA//10 MΩ	0.30 + 3
DC Current	500.00 μA	10nA	0.06V max.	0.05 + 5
	5.0000 mA	100nA	0.6V max.	0.05 + 4
	50.000 mA	1μA	0.14V max.	0.05 + 4
	500.00 m A	10μA	1.4V max.	0.10 + 4
	5.0000 A	100μA	0.5V max.	0.25 + 5
	10.000 A	1mA	0.8V max.	0.25 + 5
Continuity	5000.0 Ω	100mΩ	0.83mA	0.10 + 5
Diode Test	5.0000 V	100μV	0.83mA	0.05 + 5
Capacitance	5.000 nF: 0.5~1nF	0.001nF	8.3μA	2.00 + 20
	5.000 nF: 1~5nF	0.001nF	8.3μA	2.00 + 10
	50.00 nF: 5~10nF	0.01nF	8.3μA	2.00 + 30
	50.00 nF: 10~50nF	0.01nF	8.3μA	2.00 + 10
	500.0 nF	0.1nF	83μA	2.00 + 4
	5.000 μF	1nF	0.56mA	2.00 + 4
	50.00 μF	10nF	0.83mA	2.00 + 4
True RMS Volatge AC (or AC+DC) (4/5/*6)	500.00 mV	10μV	30Hz – 50Hz 50Hz – 10kHz 10kHz – 30kHz 30kHz – 100kHz	1.00 + 40 0.50 + 40 2.00 + 60 3.00 + 120
	5.0000 V	100μV	30Hz – 50Hz 50Hz – 10kHz 10kHz – 30kHz 30kHz – 100kHz	1.00 + 20 0.35 + 15 1.00 + 20 3.00 + 50
	50.000 V	1mV	30Hz – 50Hz 50Hz – 10kHz 10kHz – 30kHz 30kHz – 100kHz	1.00 + 20 0.35 + 15 1.00 + 20 3.00 + 50
	500.00 V	10mV	30Hz – 50Hz 50Hz – 10kHz 10kHz – 30kHz 30kHz – 100kHz	------ 0.50 + 15 1.00 + 20 3.00 + 50
	750.0 V	100mV	30Hz – 50Hz 50Hz – 10kHz 10kHz – 30kHz 30kHz – 100kHz	------ 0.50 + 15 ------ ------
True RMS Current AC (or AC+DC) (4/5/*6)	500.00 μA	10nA	30Hz – 50Hz 50Hz – 2kHz 2kHz – 5kHz 5kHz – 20kHz	1.50 + 50 0.50 + 40 1.50 + 50 3.00 + 75
	5.0000 mA	100nA	30Hz – 50Hz 50Hz – 2kHz 2kHz – 5kHz 5kHz – 20kHz	1.50 + 40 0.50 + 20 1.50 + 40 3.00 + 60
	50.000 mA	1μA	30Hz – 50Hz 50Hz – 2kHz 2kHz – 5kHz 5kHz – 20kHz	1.50 + 40 0.50 + 20 1.50 + 40 3.00 + 60
	500.00 mA	10μA	30Hz – 50Hz 50Hz – 2kHz 2kHz – 5kHz 5kHz – 20kHz	1.50 + 40 0.50 + 20 1.50 + 40 3.00 + 60
	5.0000 A	100μA	30Hz – 50Hz 50Hz – 2kHz	2.00 + 40 0.50 + 30
	10.000 A	1mA	30Hz – 50Hz 50Hz – 2kHz	2.00 + 40 0.50 + 30
Frequency	10Hz – 500Hz	------	------	0.01 + 5
	500Hz – 500kHz			0.01 + 3
	500kHz – 1MHz			0.01 + 5
Temperature (*7) (Thermocouple)	-200 °C ~ +300 °C	0.1 °C	J / T / K	2 °C (typical)
Display	VFD, Tow Colors Display
Interface	USB Device, USB Host (for GDM-8342 only), GPIB (optional for GDM-8342 only)
Power Source	AC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz
Power Consumption	Max. 15VA
Dimensions	265(W) x 107(H) x 302(D) mm
Weight	Approx. 2.9kg without option
1. Accuracy = +/- (% of reading + digits) 2. 2% overrange on all ranges, except 10A is 20% overrange 3. REL function is on 4. The AC+DC is in AC coupled 5. The accuracy of AC+DC is equal to AC with 10 more digits added 6. AC characteristics are for sinewave input > 5% of range 7. Specifications do not include probe accuracy

Multimeters Template
Style	Bench
Test Equipment General Attributes
Product Height	7.00 IN
Product Length	15.40 IN
Product Width	13.50 IN
HTS/Schedule B Number	9030.31.0000
ECCN Number	EAR99
Calibration Included	Factory Calibration
Country of Origin	China
