| Arbitrary Waveforms |
| ARB Function |
Built in |

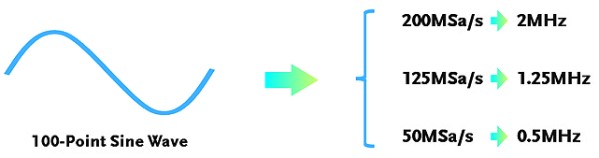

| Sample Rate |
200 MSa/s |
| Repetition Rate |
100MHz |
| Waveform Length |
1M points |

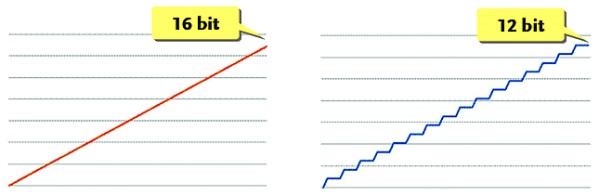

| Amplitude Resolution |
16 bits |
| Non-Volatile Memory |
Ten 1M waveforms(1) |

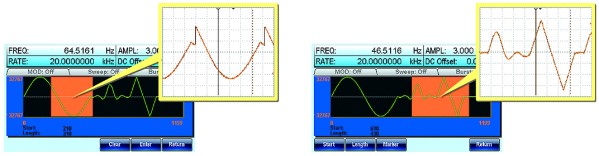

| User define Output Section |
Any section from 2 to 1M points |
| User define Mark Output |
Any section from 2 to 1M points |
| Frequency Characteristics |
| Range |
| Sine Square |
80MHz |
50MHz |
| Triangle, Ramp |
1MHz |

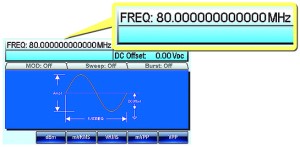

| Resolution |
1uHz |
| Accuracy |
| Stability |
±1 ppm 0 to 50°C
±0.3 ppm 18 to 28°C |
| Aging |
±1 ppm, per 1 year |
| Tolerance |
≤ 1 uHz |
| Output Characteristics(2) |
| Amplitude |
| Range |
10 mVpp to 10 Vpp( into 50Ω)
20 mVpp to 20 Vpp(open-circuit) |
| Accuracy |
± 1% of setting ±1 mVpp
(at 1 kHz,>10 mVpp) |
| Resolution |
0.1 mV or 4 digits
Flatness:± 1% (0.1dB) <10 MHz
± 2% (0.2 dB) 10 MHz to 50 MHz
± 10% (0.9 dB) 50 MHz to 70 MHz
± 20% (1.9 dB) 70 MHz to 80 MHz
(sinewave relative to 1 kHz) |
| Units |
Vpp, Vrms, dBm, |
| Offset |
| Range |
±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit) |
| Accuracy |
1% of setting + 2 mV+ 0.5% of amplitude |
| Waveform Output |

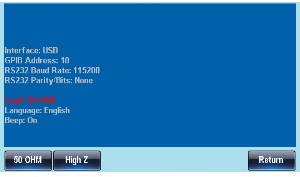

| Impedance |
50Ω typical (fixed)
> 10MΩ (output disabled) |
| Protection |
Short-circuit protected
Overload relay auto-matically disables main output |
| SYNC Output |
| Level |
TTL-compatible into>1kΩ |
| Impedance |
50Ω nominal |
| Sinewave Characteristics |
| Harmonic Distortion(5) |
–60 dBc DC~1 MHz, Ampl<3 Vpp
–55 dBc DC~1 MHz, Ampl>3 Vpp
–45 dBc 1MHz~5 MHz, Ampl>3 Vpp
–30 dBc 5MHz~80 MHz, Ampl>3 Vpp |
| Total Harmonic Distortion |
< 0.2%+0.1mVrms
DC to 20 kHz |
| Spurious (non-harmonic)(5) |
–60 dBc DC~1 MHz
–50 dBc 1MHz~20MHz
–50 dBc+ 6 dBc/octave 1MHz~80MHz |
| Phase Noise |
<-65dBc typical 10MHz, 30 kHz band
<-47dBc typical 80MHz, 30 kHz band |
| Square wave Characteristics |
| Rise/Fall Time |
<8 nS(3) |
| Overshoot |
< 5% |
| Asymmetry |
1% of period+1 ns |
| Variable Duty Cycle |
20.0% to 80.0% ≤ 25 MHz
40.0% to 60.0% 25~50MHz
50.0%(Fixed) 50~80MHz |
| Jitter |
0.01%+525ps < 2 MHz
0.1%+75ps > 2 MHz |
| Ramp Characteristics |
| Linearity |
< 0.1% of peak output |
| Variable Symmetry |
0% to 100% |
| Pulse Characteristics |
| Period |
20ns~ 2000s |
| Pulse Width |
8ns~ 1999.9s |
| Minimum Pulse Width |
8nS when FREQ≤50MHz
5% of setting period when FREQ≤6.5MHz |
| Resolution |
1nS when FREQ≤50MHz
1% of setting period when FREQ≤6.5MHz |
| Overshoot |
<5% |
| Jitter |
100 ppm +50 ps |

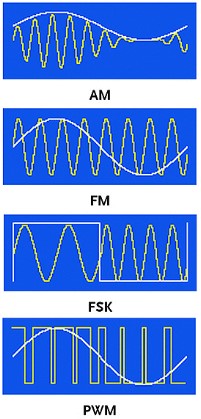

| AM Modulation |
| Carrier Waveforms |
Sine, Square, Triangle, Ramp, Pulse, Arb |
| Modulating Waveforms |
Sine, Square, Triangle, Up/Dn Ramp |
| Modulating Frequency |
2 mHz to 20 kHz |
| Depth |
0% to 120.0% |
| Source |
Internal / External |
| FM Modulation |
| Carrier Waveforms |
Sine, Square, Triangle, Ramp |
| Modulating Waveforms |
Sine, Square, Triangle, Up/Dn Ramp |
| Modulating Frequency |
2 mHz to 20 kHz |
| Peak Deviation |
DC to 80 MHz |
DC to 50 MHz |
| Source |
Internal / External |
| PWM |
| Carrier Waveforms |
Square |
| Modulating Waveforms |
Sine, Square, Triangle, Up/Dn Ramp |
| Modulating Frequency |
2 mHz to 20 kHz |
| Deviation |
0% ~ 100.0% of pulse width |
| Source |
Internal / External |
| FSK |
| Carrier Waveforms |
Sine, Square, Triangle, Ramp, Pulse |
| Modulating Waveforms |
50% duty cycle square |
| Internal Rate |
2 mHz to 100 kHz |
| Frequency Range |
DC to 80 MHz |
DC to 50 MHz |
| Source |
Internal / External |
| SWEEP |
| Waveforms |
Sine, Square, Triangle, Arb |
| Type |
Linear or Logarithmic |
| Direction |
Up or Down |
| Start F / Stop FREQ |
100 uHz to 80 MHz |
100 uHz to 50 MHz |
| Sweep Time |
1 ms to 500 s |
| Trigger |
Single, External, Internal |
| Marker |
Falling edge of Mark signal
(Programmable frequency) |
| Source |
Internal / External |
| BURST |
| Waveforms |
Sine, Square, Triangle, Ramp |
| Frequency |
1 uHz to 80 MHz(4) |
1 uHz to 50 MHz(4) |
| Burst Count |
1 to 1000000 cycles or Infinite |
| Start / Stop Phase |
-360.0°to +360.0° |
| Internal Period |
1 ms to 500 s |
| Gate Source |
External Trigger |
| Trigger Source |
Single, External or Internal Rate |
| Trigger Delay |
N-Cycle, Infinite: 0s to 85 s |
| External Modulation Input |
| Type |
for AM, FM, Sweep, PWM |
| Voltage Range |
± 5V full scale |
| Input Impedance |
10kΩ |
| Frequency |
DC to 20 kHz |
| External Trigger Input |
| Type |
for FSK, Burst, Sweep |
| Input Level |
TTL Compatible |
| Slope |
Rising or falling(selectable) |
| Pulse Width |
> 100 ns |
| Input Impedance |
10kΩ,DC coupled |
| Latency |
| Sweep |
< 10 us (typical) |
| Burst |
< 100 ns (typical) |
| Jitter |
| Sweep |
2.5 us |
| Burst |
1 ns; except pulse,300 ps |
| Modulation Output |
| Type |
for AM, FM, Sweep, PWM |
| Amplitude |
| Range |
≥1Vpp |
| Impedance |
> 10kΩ typical (fixed) |
| Trigger Output |
| Type |
for Burst, Sweep |
| Level |
TTL Compatible into 50Ω |
| Pulse Width |
> 450 ns |
| Maximum Rate |
1 MHz |
| Fan-out |
≥4 TTL load |
| Impedance |
50Ω typical |
| Marker Output |
| Type |
for ARB, Sweep |
| Level |
TTL Compatible into 50Ω |
| Fan-out |
≥4 TTL load |
| Impedance |
50Ω typical |
| Store/Recall |
10 Groups of Setting Memories |
| Interface |
GPIB, RS232, USB |
| Display |
4.3 inch TFT LCD
480 × 3 (RGB) × 272 |
| System Characteristics |
| Configuration Times (typical) |
| Function Change |
Standard---->102ms
Pulse-------->660ms
Built-In Arb- >240ms |
| Frequency Change |
24ms |
| Amplitude Change |
50ms |
| Offset Change |
50ms |
| Select User Arb |
< 2s for 1M points |
| Modulation Change |
< 200ms |
| Arb Download Times (typical) |
Binary Code |
ASCII Code |
| GPIB / RS-232 (115 Kbps) |
USB(Device) |
USB(Host) |
| 1M points |
189 Sec |
34 Sec |
70 Sec |
| 512K points |
95 Sec |
18Sec |
35 Sec |
| 256K points |
49 Sec |
9 Sec |
18 Sec |
| 64K points |
16 Sec |
3 Sec |
6 Sec |
| 16K points |
7 Sec |
830mS |
1340 mS |
| 8K points |
6 Sec |
490mS |
780mS |
| 4K points |
6 Sec |
365mS |
520 mS |
| 2K points |
5 Sec |
300mS |
390 mS |
|
| General Specifications |
| Power Source |
AC100~240V , 50~60Hz |
| Power Consumption |
65 VA |
| Operating Environment |
| Temperature to satisfy the specification |
18 ~ 28°C |
| Operating temperature |
0 ~ 40°C |
| Relative Humidity |
≤ 80%, 0 ~ 40°C
≤ 70%, 35 ~ 40°C |
| Installation category |
CAT II |
| Operating Altitude |
2000 meters |
| Pollution Degree |
IEC 61010 Degree 2, Indoor Use |
| Storage Temperature |
-10 ~ 70°C, Humidity: ≤70% |
| Dimensions (WxHxD) |
Bench Top : 265 (W) x 107 (H) x 374 (D) |
| Weight |
Approx. 4kg |
| Safety Designed to |
EN61010-1 |
| EMC Tested to |
EN 55011, IEC-61326-1 |
| Accessories |
GTL-110× 1
Instruction Manual×1
Power cord×1 |
- (1). A total of ten waveforms can be stored.(Every waveform can composed of 1M points maximum.)
- (2). Add 1/10th of output amplitude and offset specification per °C for operation outside of 0°C to 28°C range (1-year specification).
- (3). Edge time decreased at higher frequency.
- (4). Sine and square waveforms above 25 MHz are allowed only with an "Infinite" count.
- (5). Harmonic distortion and Spurious noise at low amplitudes is limited by a -70 dBm floor.
|
