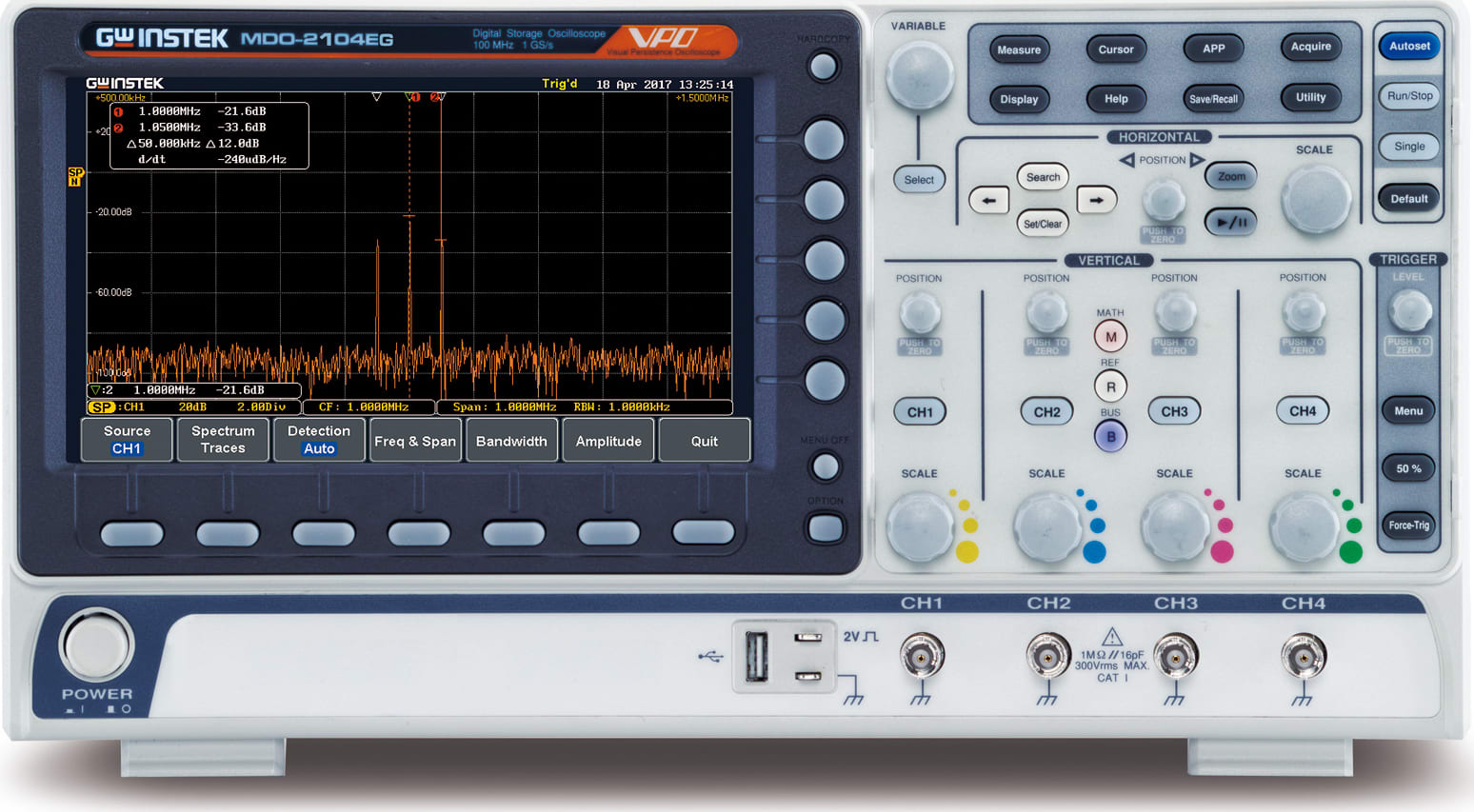

| Bandwidth |
100MHz |
| Channels |
4 |
| Record Length |
10M/ch |
| Rise time Sampling Rate |
Max. 1 GSa/s |
| Vertical Sensitivity |
| Rise Time |
3.5ns |
| Bandwidth Limit |
20MHz |
| Vertical Resolution |
8 bit: 1mV~10V/div |
| Input Coupling |
AC, DC, GND |
| Input Impedance |
1MΩ// 16pF approx. |
| DC Gain Accuracy |
±(3%)when 2mV/div or greater is selected |
| ±(5%)when 1mV/div is selected; |
| Polarity |
Normal & Invert |
| Maximum Input Voltage |
300Vrms, CAT I |
| Offset Position Range |
1mV/div ~ 20mV/div : ±0.5V |
| 50mV/div ~ 200mV/div : ±5V |
| 500mV/div ~ 2V/div : ±25V |
| 5V~10V/div : ±250V |
| Waveform Signal Process |
+, -, ×, ÷, FFT, User Defined Expression.
FFT:1Mpts FFT:Spectral magnitude.
Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman. |
| Horizontal |
| Time base Range |
1ns/div ~ 100s/div (1-2-5 increments) |
| ROLL: 100ms/div ~ 100s/div |
| Pre-trigger |
10 div maximum |
| Post-trigger |
2,000,000 div maximum. |
| Time base Accuracy |
±50 ppm over any ≥ 1 ms time interval |
| Real Time Sample Rate |
Max.:1GSa/s (4ch model) |
| Per channel 1GSa/s (2ch model) |
| Record Length |
Per Channel 10M pts |
| Acquisition Mode |
Normal, Average, Peak Detect, Single |
| Peak Detection |
2ns (typical) |
| Average |
selectable from 2 to 256 |
| Spectrum Analyzer Specifications |
| Frequency range |
DC~500MHz (Max. ,Max.bandwidth~500MHz uncalibrated) |
| Span |
1kHz~500MHz(Max.) |
| Resolution bandwidth |
1Hz ~ 500kHz(Max.) |
| Reference level |
-50 dBm to +40dBm in steps of 5dBm |
| Vertical units |
dBV RMS; Linear RMS; dBm |
| Vertical position |
-12divs to +12divs |
| Vertical scale |
1dB/div to 20dB/div in a 1-2-5 Sequence |
| Display average noise level |
1V/div < -50dBm, Avg : 16 |
| 100mV/div < -70dBm, Avg : 16 |
| 10mV/div < -90dBm, Avg : 16 |
| Spurious response |
2nd harmonic distortion< 40dBc |
| 3rd harmonic distortion< 45dBc |
| Frequency domain trace types |
Normal ; Max Hold ; Min Hold ; Average (2 ~ 256) |
| Detection methods |
Sample ; +Peak ; -Peak ; Average |
| FFT Windows |
FFT Factor : |
| Hanning 1.44 |
| Rectangular 0.89 |
| Hamming 1.30 |
| Blackman 1.68 |
| AWG Specifications |
| Channels |
2 |
| Sample Rate |
200 Msa/s |
| Vertical Resolution |
14 bits |
| Max. Frequency |
25 MHz |
| Waveforms |
Sine, Square, Pulse, Ramp, DC, Noise, Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac |
| Output Range |
20 mVpp to 5 Vpp, HighZ;10 mVpp to 2.5 Vpp, 50 Ω |
| Output Resolution |
1mV |
| Output Accuracy |
2% (1 kHz) |
| Offset Range |
±2.5 V, HighZ;±1.25 V, 50 Ω |
| Offset Resolution |
1mV |
| Sine |
| Frequency Range |
100mHz to 25MHz |
| Flatness |
±0.5 dB( relative to 1kHz) |
| Harmonic Distortion |
-40 dBc |
| Stray (Non-harmonic) |
-40 dBc |
| Total Harmonic Distortion |
0.01 |
| S/N Ratio |
40 dB |
| Square/Pulse |
| Frequency Range |
100 mHz to 15MHz |
| Rise/Fall time |
<15ns |
| Overshoot |
<3% |
| Duty cycle |
Square:50%;Pulse:0.4%~99.6% |
| Min. Pulse Width |
30 ns |
| Jitter |
500 ps |
| Ramp |
| Frequency Range |
100mHz~1MHz |
| Linearity |
0.01 |
| Symmetry |
0 to 100% |
