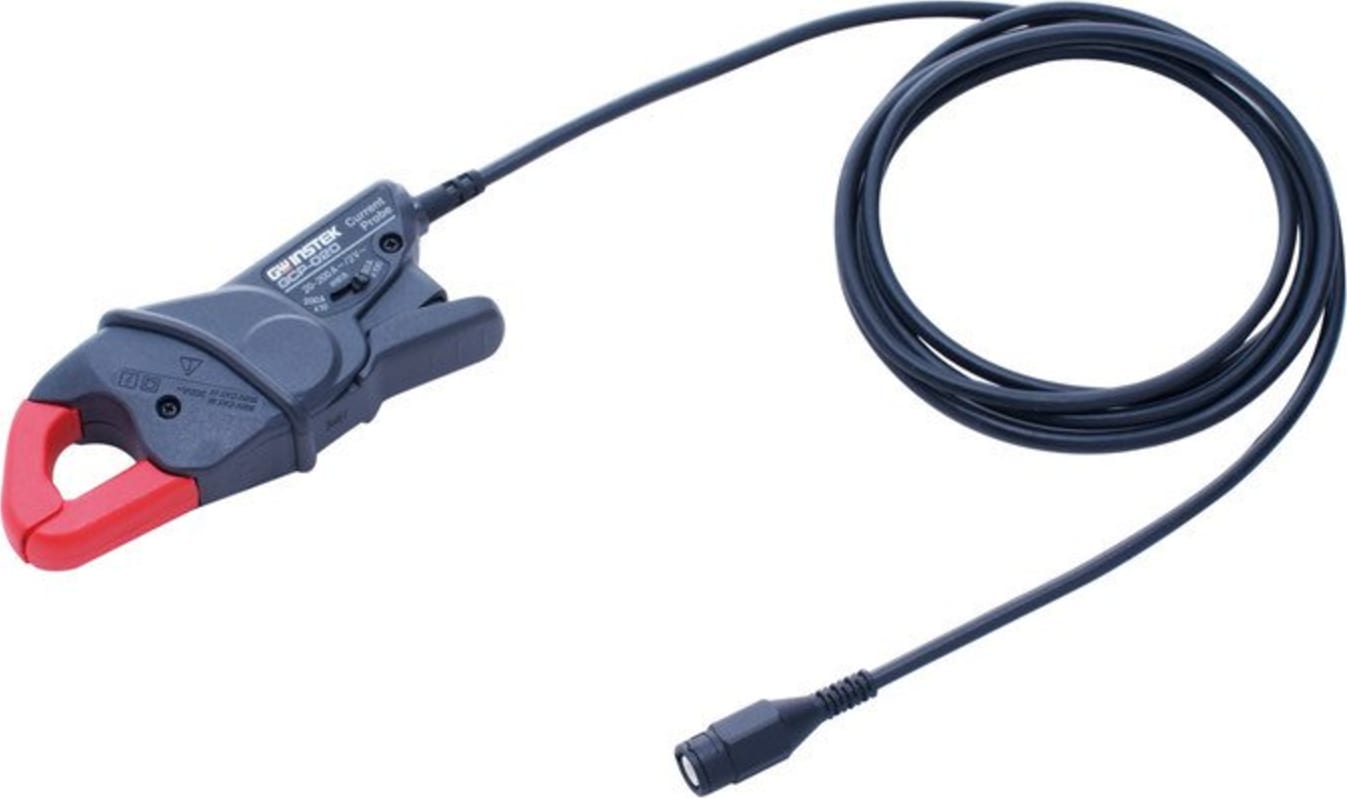

Instek GCP-020 10KHz/200A Current Probe

Name: Instek GCP-020 10KHz/200A Current Probe
Brand: Instek
SKU: InstekGCP-020
Price: 434.70 USD
Availability: InStock

0 reviews | Model: Instek GCP-020

Compare

Instek GCP-020 Current Probe, 40Hz-40kHz, 240A( 10mV/A)

Bandwidth: 40 Hz to 10 kHz
Range:
- 100 mA to 20 A
- 500 mA to 200 A
Accuracy:
- ±2% (100 mA to 20 A)
- ±1.5% (500 mA to 200 A)
Jaw Opening: 21mm Diameter

View Product Details

List Price: $483.00

Your Price: $434.70

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Instek GCP-020 40Hz-40kHz, 240A, Current Probe

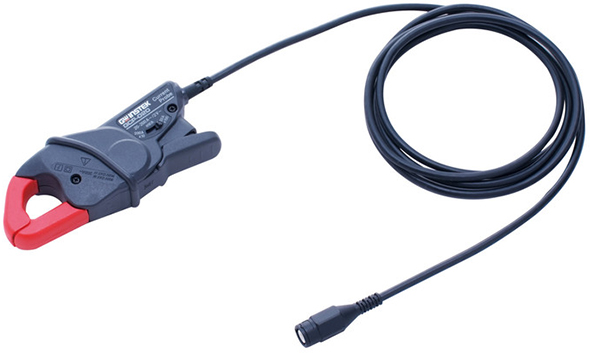

The GCP-020 is a clamp-type probe for measuring AC and DC current waveforms. Ranging from 100 mA to 200 A, the GCP-020 is designed to perform high current measurement in a compact package.

Applications:

Harmonic Current Measurement
Inrush Current Measurement
Current Ripple and Noise Measurement
Power Quality Analysis

Clamp Measurement: Safe and Easy
To perform current waveform measurement, just clamp the jaw around the conductor-under-test and connect its lead to the BNC input of an oscilloscope. Breaking the circuit and connecting an ammeter in series is no longer necessary.

Current Measurement from 40Hz to 10kHz for Various Instruments
Using the combination of a Hall-effect sensor and an AC current transformer, GCP-020 provides accurate measurement from 40Hz to 10kHz. The dual measurement range spans 100mA-20A and 500mA-200A. In addition to oscilloscopes, the GCP-020 can also be connected to multimeters and data loggers.
