4 (1 Review) | UPC: 783250773176 | Model: TREND Networks R156003

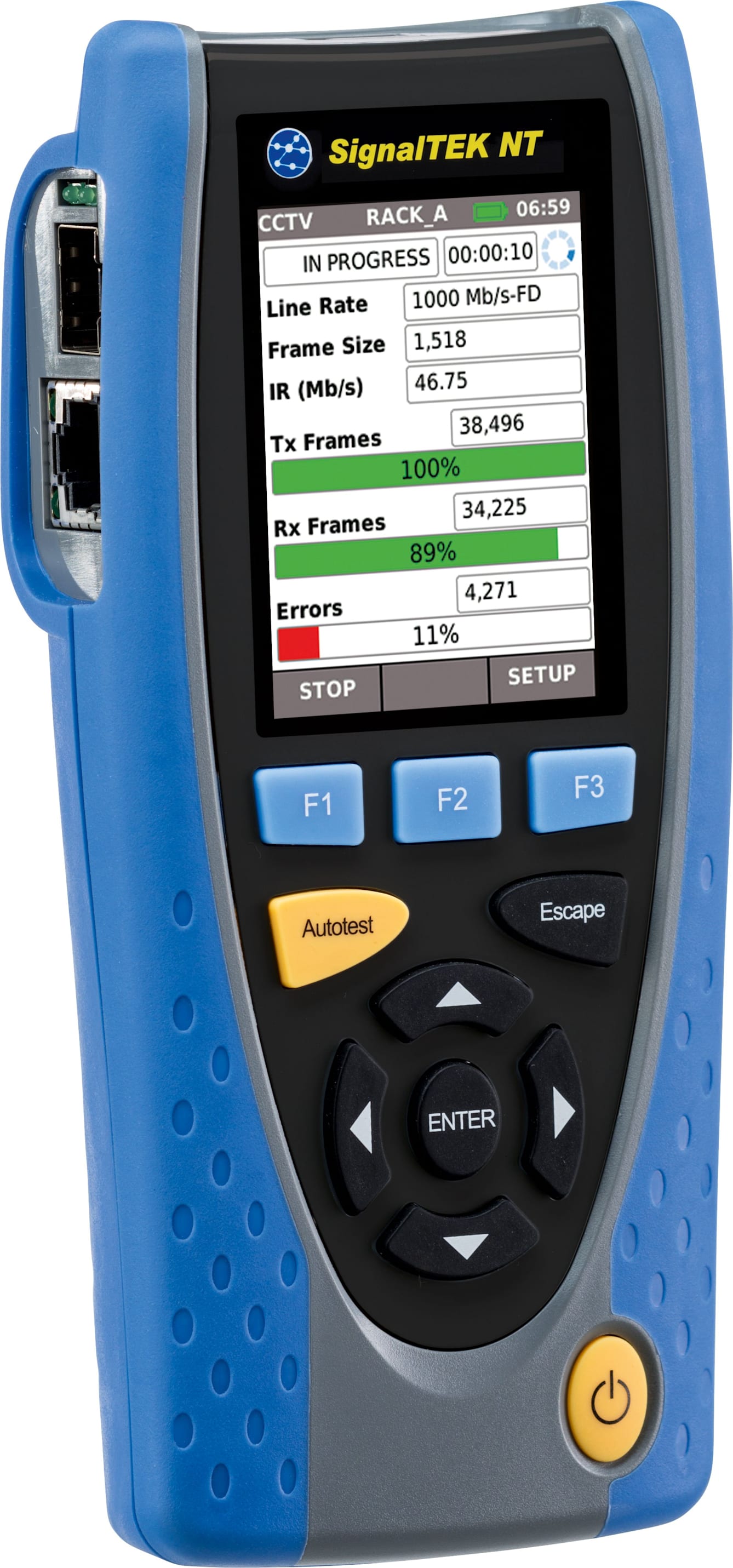

SignalTEK NT
List Price: $2,407.50
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(1)
If you install, maintain or troubleshoot data cabling and Ethernet networks, SignalTEK NT allows you to prove the performance up to Gigabit Ethernet transmission rates. By simulating actual network traffic users are able to test and document network and data cable performance to Gigabit Ethernet standards. Where system warranties are not required the SignalTEK NT is a cost effective way of proving your copper and fiber networks provide error-free performance.
There is no industry standard defining the testing requirements of cable qualifiers, consequently passing a qualification test does not prove that the installed structured cabling will provide flawless data transmission. Uniquely, SignalTEK NT utilizes a test method known in wide area networks as transmission testing to prove the performance of a network by sending real Ethernet data frames through the cabling and/or network devices to compare the error rate against the IEEE802.3ab Gigabit Ethernet standard. This provides a clear standards based Pass/Fail of the link being tested. SignalTEK NT requires no configuration from the user as the two handsets automatically pair ready for testing; just select a usage scenario to simulate the appropriate service, from VoIP to CCTV, Video, and web traffic.
Cabling:
Active network:
Test
Connect
Send
SignalTEK NT automatically generates test reports in PDF or CSV format. The summary page of each report can be customized to include logo, company and operator details. Choose between 3 di erent reports that can show either passed, failed or all test reports in each report:
Answers (1) - Asked by Anonymous
I have this question too (0)
SignalTEK NT has optical and RJ45 interfaces to support testing over cabling and active networks
I found this helpful (0)
Inaccurate? (0)
Answered by Anonymous
UniPRO MGig1/SEL1
No software required. PDF’s are generated directly on the tester
The SignalTEK NT has additional test functions such as fiber optic and active network test capabilities. It can test network load by simulating different traffic over the switch with both copper and fiber interfaces. It also has Ping, Traceroute, PoE, Hub blink test capability
"Qualifier" or "qualification testers" try to determine if Ethernet might work on cabling by running an un-calibrated measurement of physical parameters like signal-to-noise-ratio and delay. The problem with those tests is that they a) have no traceable accuracy to international standards and therefore have only a very limited credibility and b) are often only done single sided. The testers give an indication that Ethernet might work, but are not able to prove that. Additionally these testers are only able to perform this limited test on the structured cabling itself, but not through an Ethernet network
I have this question too (1)
"Transmission testers" transmit Ethernet packages according to the IEEE 802.3 standard. By running 100Mbit/s or 1000Mbit/s Ethernet at 100% load on the link from both sides provides users with a clear reading if the link really can support the desired Ethernet speed. IEEE802.3 specifies a maximum bit error rate for every Ethernet speed. By running Ethernet packets bidirectional over a link, transmission testers are able to clearly determine if the link performs to the maximum packet error rate by simply counting the transmitted and lost packets. Depending on which SignalTEK tester, these tests can be done on the structured cabling, but also on a live Ethernet network
The SignalTEK NT is a hand held transmission tester with key network troubleshooting functions that software tools such as command prompt or laptops can not provide. •Can not provide a transmission test to confirm the cable or link available bandwidth •They pose a risk to the network because their operating systems can be vulnerable to infections from viruses or malware. •Slower detection of link and IP information such as duplex, speed, port ID, VLAN, DHCP, Gateway status and IP address •Can not detect services such as ISDN, POTS, PoE or perform wiremap tests •Do not have fiber interfaces or field replaceable RJ45 connectors •Many cable environments involve small areas, above ceilings, behind walls, in floors etc. Fitting a laptop into these small areas could damage the laptop and makes the job difficult to complete
The SignalTEK NT near and far end unit first try to build up an Ethernet connection on a cable to demonstrate if an Ethernet link is possible. If the SignalTEK NT near end unit can’t connect to the far end unit via an Ethernet link, both testers fall back into cable mode” where only wiremap and wire tracing is possible Note: Establishing an Ethernet link does not guarantee full Ethernet performance. Only the cable performance test will test if full Ethernet throughput at 1000Mb/s or 100Mb/s is possible. Some competitive testers will qualify a link with no more than a successful Ethernet link establish check.
Repetitive use wears the gold plating on all RJ45 contacts and this is accelerated when testing with PoE because of the electrical arcing. The replaceable connector contacts eliminate the need to return the tester to a service department for routine connector replacement
The “Edimax EW-7811Un” USB Wi-Fi adapter is the only approved and compatible adapter for the IDEAL AnyWARE app. This adapter is included with the SignalTEK NT (R156003) and the SignalTEK CT kits (R156004)
SignalTEK CT
No: the indications of optical power, voltage, length etc. are for troubleshooting only and do not need calibration. Transmission testing also doesn’t require calibration
No: The optical power is indication only for troubleshooting. It is not a calibrated measurement even with a calibrated source, accurate attenuation measurement is not possible
Yes. By downloading the software upgrade from www.idealnetworks.net
Use of other SFPs may be possible but is not guaranteed for correct operation, including optical power indication
Yes. Active remotes No.2~ No.12 (part no. 150050) can be used for advanced wiremapping. However VDVII’s Active Remote can not be used with SignalTEK NT
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying 1 review
Most Helpful First | Newest First
Recommend to a Friend
Solid & cheaper alternative for network certifiers
4.0
This qualifier works quite well and it´s a cheaper alternative for network certification tools
jaled - signos on Apr 09, 2018 I found this helpful (0)
