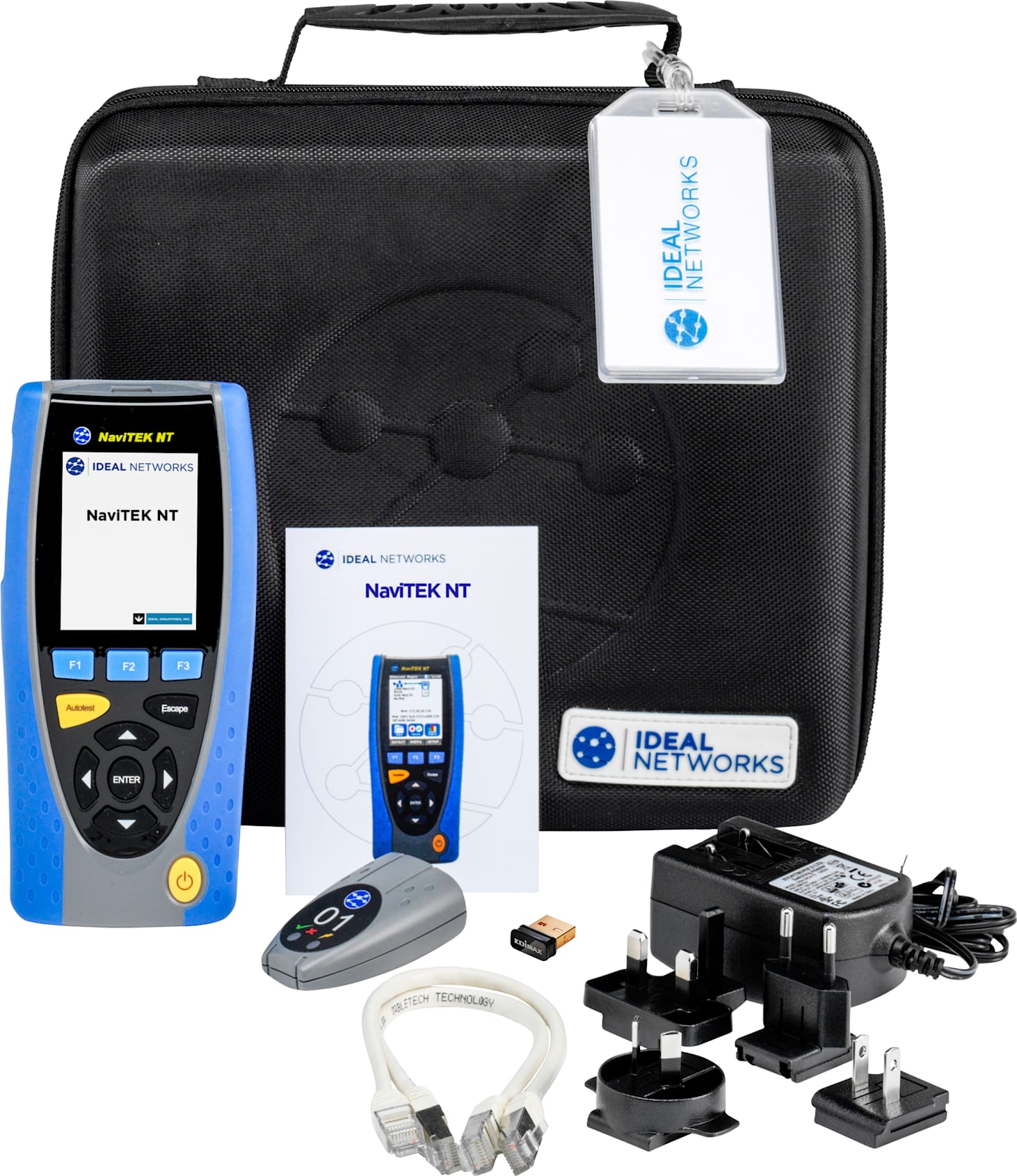

| NaviTEK NT Pro Specification |
| Connectors |
|
RJ45
|
|
Used for
|
- Cable Test
- Ethernet Test
|
|
Connector type
|
Lifejack with user-replaceable contacts
|
| Optical |
|
Used for
|
Ethernet Test
|
|
Connector type
|
SFP socket
|
|
USB
|
|
Used for
|
- Software Update
- Results transfer
- 802.1x certificate transfer
- Import/export of config
- WiFi Adapter
|
|
Class
|
Host
|
|
Connector type
|
A
|
|
USB type
|
1.1
|
|
Power
|
|
Used for
|
Battery charging
Mains powering via adaptor
|
|
Connector type
|
2.5mm pin power jack
|
|
Polarity
|
Centre pin positive
|
|
Voltage
|
12v
|
|
Current
|
2 A
|
|
Location
|
Bottom of optional power module
(Not present in standard alkaline battery pack)
|
| Controls |
|
Push button
|
|
Used for
|
Power ON/OFF
|
|
F1 to F3
|
|
Used for
|
Screen-defined functions
|
|
Cursor and ENTER
|
|
Used for
|
User interface navigation
|
|
Escape
|
|
Used for
|
Return to previous menu
|
|
Autotest
|
|
Used for
|
Launch of automatic test function
|
|
Push button
|
|
Used for
|
Escape from exceptional lockup condition
|
| Displays |
|
LCD
|
|
Used for
|
Display of setup functions and results
|
|
Location
|
Front
|
|
Size
|
2.8 inch diagonal
|
|
Type
|
QVGA Colour
|
|
Pixels
|
240 x 320
|
|
Charger LED
|
|
Used for
|
Indication of charging status
|
|
Colour
|
Green
|
|
Location
|
Bottom of standard power module
(Not present in optional alkaline battery pack) |
|
RJ45 Link LED
|
|
Use
|
ON indicates link UP
|
|
Colour
|
Green
|
|
RJ45 Activity LED
|
|
Use
|
Flashing indicates link activity
|
|
Colour
|
Green
|
|
Optical Link LED
|
|
Use
|
ON indicates Optical link UP
|
|
Colour
|
Green
|
|
Optical Activity LED
|
|
Use
|
Flashing indicates Optical link activity
|
|
Colour
|
Green
|
| Ports |
|
Setup
|
|
Auto Negotiation
|
Enabled
Disabled
|
|
Speed
|
10Mb/s
100Mb/s
1Gbps
|
|
Mode
|
Full Duplex
Half Duplex
|
|
MDI
|
AUTO
MDI
MDIX
|
|
Min Rx Size
|
19:99 bytes
|
|
MAC
|
Factory set
|
|
VLAN
|
Enabled / Disabled
VLAN ID – 0 to 4094
VLAN Priority – 0 to 7
|
|
802.1x
|
Enabled / Disabled
EAP Method
EAP-MD5
EAP-MSCHAPV2
EAP-GTC
EAP-TLS
EAP-PEAP/MD5
EAP-PEAP/MSCHAPV2
EAP-PEAP/GTC
EAP-PEAP/TLS
EAP-TTLS/MD5
EAP-TTLS/MSCHAPV2
EAP-TTL/GTC
EAP-TTLS/TLS
Username
Password
Certificate
Import password
Root/CA certificate
|
|
Results
|
|
Link pulse polarity
|
Normal or Inverted
|
|
Link pulse height
|
Normal or Low
|
|
Tests
|
|
Ethernet Mode
|
Ping4
Ping6
Trace Route4
Trace Route6
Hub Blink
Netscan
Loopback
Auto (Ping DNS/Gateway/Internet, Trace Route,
Netscan)
|
|
Cable Mode
|
Wiremap
Tone Generator
Auto (Wiremap)
|
| Service Detection |
|
Detected Services
|
PoE (802.3af/at. Not Cisco pre-standard)
ISDN S
PBX
Unknown
|
| Supported SFPs |
|
The following SFP types are supported. Use of other types of SFP is
possible but correct operation is not guaranteed.
|
| SFP Type SX |
|
Manufacturer Part #
|
Avago AFBR-5705Z / Apac LM28-C3S-TI-N-DD
|
|
Speed
|
1Gbps
|
|
Fibre Type
|
Multimode
|
|
Wavelength
|
850nm
|
|
Connector Type
|
LC Duplex
|
|
SFP Type LX
|
|
Manufacturer Part #
|
Avago AFCT-5705Z
|
|
Speed
|
1Gbps
|
|
Fibre Type
|
Singlemode
|
|
Wavelength
|
1310nm
|
|
Connector Type
|
LC Duplex
|
|
SFP Type ZX
|
|
Manufacturer Part #
|
Apac LS48-C3U-TC-N-DD
|
|
Speed
|
1Gbps
|
|
Fibre Type
|
Singlemode
|
|
Wavelength
|
1550nm
|
|
Connector Type
|
LC Duplex
|
|
Setup
|
|
Speed
|
1Gb/s
|
|
Min Rx Size
|
19:99
|
|
MAC
|
Factory set
|
|
VLAN
|
Enabled / Disabled
VLAN ID – 0 to 4094
VLAN Priority – 0 to 7
|
|
802.1x
|
Enabled / Disabled
EAP Method
EAP-MD5
EAP-MSCHAPV2
EAP-GTC
EAP-TLS
EAP-PEAP/MD5
EAP-PEAP/MSCHAPV2
EAP-PEAP/GTC
EAP-PEAP/TLS
EAP-TTLS/MD5
EAP-TTLS/MSCHAPV2
EAP-TTL/GTC
EAP-TTLS/TLS
Username
Password
Certificate
Import password
Root/CA certificate
|
|
Tests
|
|
Optical
|
Tx Power dBm (using a specified SFP)
Rx Power dBm (using a specified SFP)
|
|
Ethernet Mode
|
Ping4
Trace Route4
Hub Blink
Netscan
NET TEST (Ping, Trace Route, Netscan)
|
| Cable Tests |
|
Setup
|
|
Cable Type
|
2 Pair
4 Pair 568A
4 Pair 568B
|
|
Colour Scheme
|
|
|
NVP
|
Fixed 72%
Custom 59% - 89%
|
|
Termination Type
|
|
None
|
Open
|
|
Active Remote
|
#1 - #12
|
|
Tests (No Termination)
|
|
Faults
|
Open circuit by pair
Short circuit by pin
|
|
Length of pair
|
Metres / Feet (Set in System Setup)
Range 3-100m / 10-330ft
|
|
Tests (Active Remote Termination)
|
|
I/D – Remote #
Indications on Remote
|
Voltage Warning (>±10volts on any pins)
Pass/Fail
|
|
Faults
|
– Open circuit by pin
Short circuit by pin
Crossed pairs
Split pairs
Bridged shorts
Remote shorts
|
|
Length of pair
|
Metres / Feet (Set in System Setup)
Range 3-100m / 10-330ft
|
|
Setup
|
|
No of Tones
|
3
|
|
Wire I/D
|
Tone applied to one of 8 pins relative to the other 7
Tone applied across one of 4 pairs
|
|
Test
|
|
Audible tone detected using compatible tone probe
|
| Ethernet Tests |
|
Setup
|
|
Addressing
|
DHCP
Static
|
|
Numerical
|
Address
Netmask
Gateway
DNS1
DNS2
|
|
Setup
|
|
IPv6 Enable
|
Enabled
Disabled
|
|
Addressing
|
Stateful (DHCPv6)
Stateless
Static
|
|
Numerical
|
128bit HEX IP address
|
|
Network Prefix
|
64 bit
128 bit
|
|
Setup
|
|
Target
|
Numerical address
URL (Store up to 10)
|
|
Count
|
1 to 999999
|
|
Pause
|
1 to 5 Sec
|
|
Length
|
8 to 1000 bytes.
|
| Results |
|
Info
|
READY
IN PROGRESS
PASSED
NO RESPONSE
UNKNOWN HOST
|
|
Tx Count
|
1 to 999999
|
|
Rx Count
|
1 to 999999
|
|
Delay(ms)
|
Minimum
Average
Maximum
|
|
Setup
|
|
Target
|
Numerical address
URL
|
|
Max Hops
|
2 to 100
|
|
Timeout
|
2 to 30 sec
|
|
Type
|
ICMP
UDP
|
|
Results
|
|
Info
|
READY
IN PROGRESS
PASSED
NO RESPONSE
UNKNOWN HOST
|
|
Hop
|
Numerical address
|
|
Delay(ms)
|
t1
t2
t3
|
|
Setup
|
|
Netscan
|
Local
Custom
Disabled
|
|
IP Address
|
IPv4 address
|
|
Scan Range
|
0 (class C /24)
1 (class C /20)
2 (class B /16)
|
|
Results
|
| |
List of IPv4 hosts
List of IPv6 hosts
|
|
Test
|
|
Sequence
|
Off/10/Off/100/Off/1000 Mb/s (RJ-45)
Off/On (Optical)
|
| Statistics |
|
IPv4
|
| |
info: listening, assigned, DHCP failed
DHCP or Static
IPv4 Address
IPv4 Netmask
IPv4 Gateway
IPv4 DNS1
IPv4 DNS2
|
|
IPv6
|
| |
Enabled or Disabled
info: listening, assigned, DHCP failed
Stateful (DHCPv6) or Stateless or Static
IPv6 Address
IPv6 Network Prefix, 64 bit or 128 bit
IPv6 Link Address
IPv6 DNS
|
|
Discovery
|
| |
LLDP/CDP/EDP
Protocol
MAC address
Hostname / address
Port Name
Max 10 hosts
|
|
Detection
|
1 Level VLAN ID
Rx
|
|
Results
|
|
PORT
|
PoE Voltage 0 – 60V
PoE Pairs 12/36 or 45/78
Speed, Duplex
MDI / MDIX
Signal Level
Polarity
|
|
PARTNER
|
10M-HD
10M-FD
100M-HD
100M-FD
1000M-HD
1000M-FD
|
|
Results
|
|
ERRORS
|
Collisions
FCS Errors
Undersize
Oversize
Jabbers
Bad Length
|
|
Bargraph
|
|
Direction
|
Rx
|
|
Format
|
Percentage of Link rate
Peak value
|
|
Time Interval
|
1 min
10 min
60 min
|
| Storage |
|
Internal storage
|
|
Number of configurations – 2 (Current & Factory settings)
|
|
Export/Import
|
|
Port
|
USB
|
|
Format
|
xml
|
|
802.1x
|
|
Max number
|
10
|
|
Internal storage
|
|
Max Number of Jobs (Projects)
|
50
|
|
Max Number of result sets per Job
|
5000 depending on tests performed
|
|
Max total number of result sets
|
Up to 5000 depending on tests performed.
|
|
Export
|
|
Port
|
USB
Wi-Fi
|
|
Format
|
PDF
CSV (summary only)
|
| System |
|
Owner
|
|
Details
|
Name
Company
Address
Phone
|
|
Preferences
|
|
Language
|
English
French
German
Spanish
Italian
Portuguese
Chinese
|
|
Auto off
|
Disabled
3 mins
10 mins
30 mins
|
|
Backlight
|
Always On
Dims to 50% after 3 mins
|
|
Length Units
|
Meters
Feet
|
|
Date Format
|
dd/mm/yy
mm/dd/yy
|
|
Time Format
|
12 hour
24 hour
|
|
Software update
|
|
Upgrade
|
Via USB
|
| General |
|
Internal Clock
|
|
Used for
|
Timestamping results
|
|
Autonomy
|
Up to 1 day with battery removed
|
|
Battery
|
|
Supported Types
|
Standard power module (4 x AA NiMH cells)
Alkaline battery pack with 4 AA cells
|
|
Autonomy
|
Up to 5 hours (power module only)
|
|
Recharge time
|
3 hours (Power module only)
|
|
Battery level Indication
|
Full
2/3
1/3
Empty
|
|
Dimensions
|
|
Length
|
175mm
|
|
Width
|
80mm
|
|
Depth
|
40mm
|
|
Weight
|
|
Unit
|
0.22kg
|
|
Batteries
|
0.18kg
|
|
Temperature
|
|
Operating
|
0°C to 40°C
|
|
Storage
|
-20°C to 70°C
|
|
Relative Humidity
|
|
Min
|
5%
|
|
Max
|
90% non-condensing
|
|
EMC
|
|
EN 55022:2006 / A1:2007
EN55024:1998 / A1:2001 / A2:2003
|
|
Safety
|
|
IEC 60950-1:2005+A1:2009/EN 60950-1:2006+A1:2010
|
