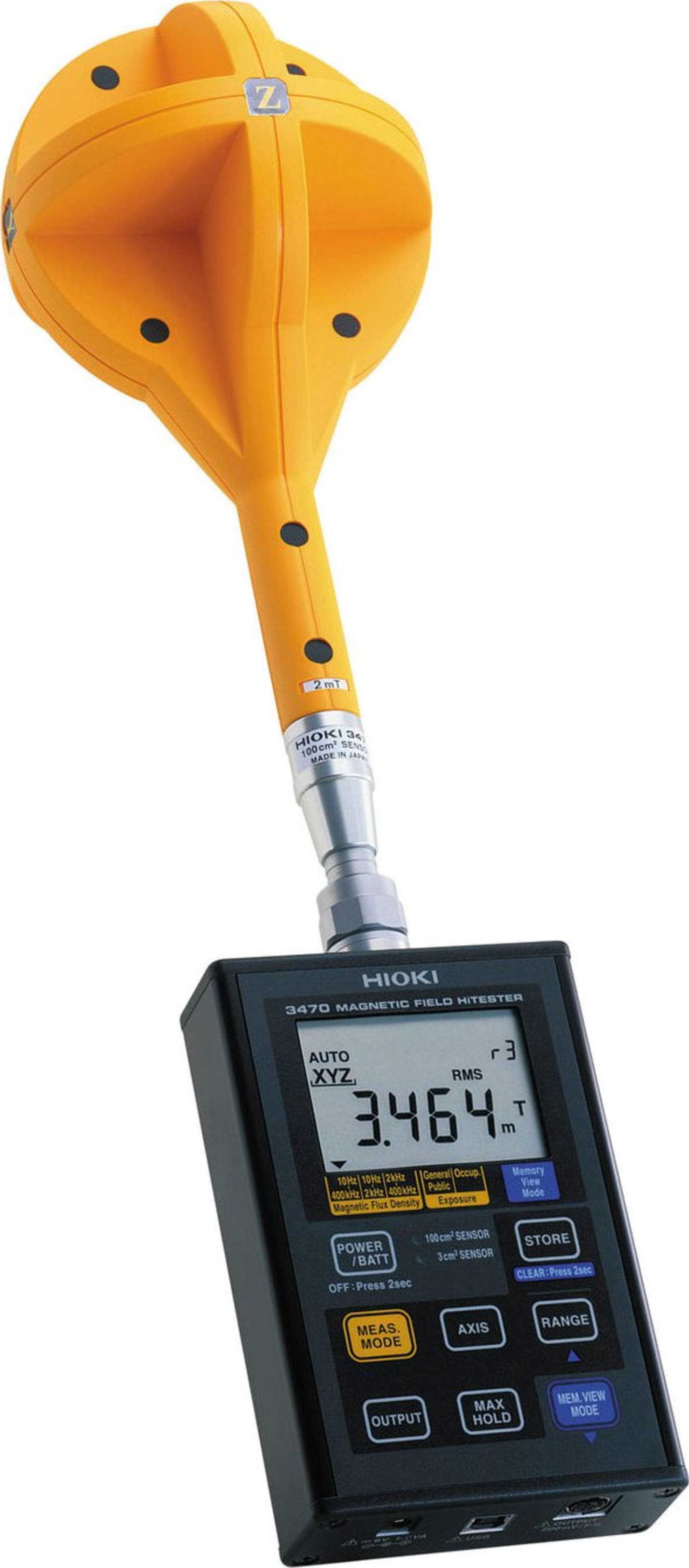

Magnetic Field Hi-Tester
Your one-stop solution for magneticfield measurement Your one-stop solution for magneticfield measurement
The FT3470-50 Series complies with the ICNIRP 2010 guidelines as well as other relevant standards for evaluation testing.
- International guidelines
ICNIRP 2010 compliant
The guideline value has benn changed to 200 µT(for public exposure) at 50/60 Hz.
The FT3470-50 Series completely supports related measurements
- Magneticfield measurement methods
The FT3470-50 Series complies with IEC
62110/IEEE 644 as well as IEC 62233.
- Magneticfield measuring instrument requirements
The FT3470-50 Series complies with IEC 61786.

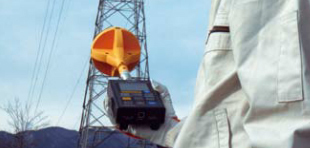

Measurement underneath transmission lines
The memory function is helpful when using the standard-defined measurement method for averaging readings taken at three different heights. The FT3470-50 series can also be used to take measurements at substations, underground lines, and pole-mounted transformers.
Long-term measurement and waveform observation
Using the output function, the FT3470-50 series can be combined with the MEMORY HiCORDER MR8880-20 to observe waveforms, allowing the capture of level and waveform output.
Memory function
The instrument can store up to 99 measurement data points in its memory.
Level output
The level output function allows RMS values to be recorded with a recorder or logger, making it useful for applications involving observation of data over extended periods of time.
Checking data on a computer
The bundled application software can be used to check measurement data.
Compatible OS : Windows XP, Vista, 7
Functions : RMS logger, batch export and tester setup
Storage format : CSV format
Waveform output
You can also observe magnetic field waveforms by connecting the instrument to an oscilloscope or recorder.
